Simonton replacement part for double hung window - pix incl

Question

Hello,
The house was built in 2004.

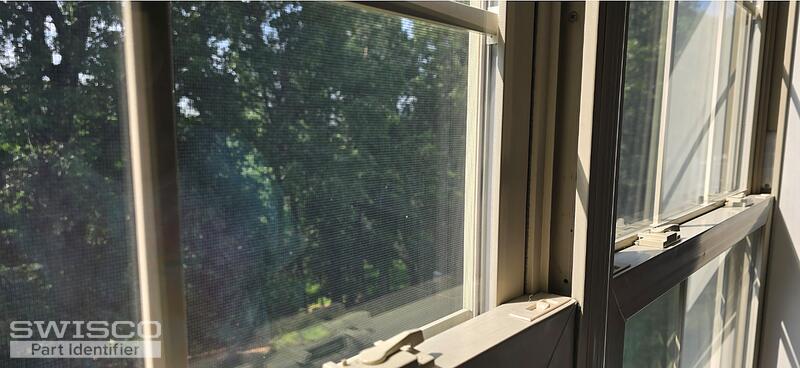

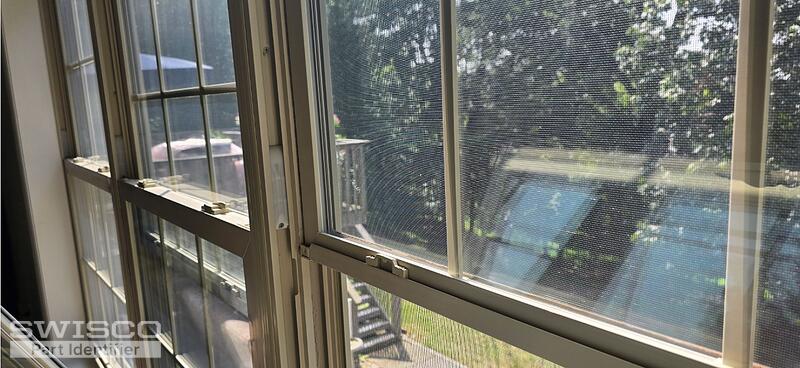

Seeking assistance finding replacement parts to keep windows open. Maybe it’s the plastic balance assembly that needs replaced in 6 windows. Window size might be included in the first photo.
If it’s left vs right.
Right – 3
Left - 3

Casey · Accepted Answer

Hello,

Your pivot shoe resembles the 17/32" thick 15-199 Pivot Shoe. Review the image below to confirm it's a match. This shoe is compatible with either the 1/2" wide Series 160 Coil Balance or 3/8" wide Series 165 Coil Balance.

Alternate view of 15-199

You'll need to check the original coils for the stamps to choose the corresponding strength options. The compatible covers can be found under the related items section of the coil spring product pages. Thanks for posting!
