Simonton window

A handy person from Maryland says:
September 18, 2023

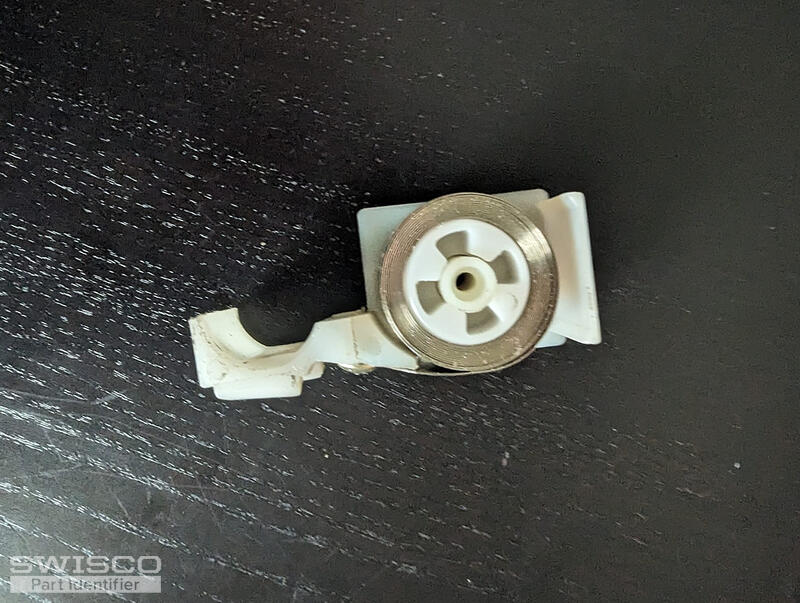

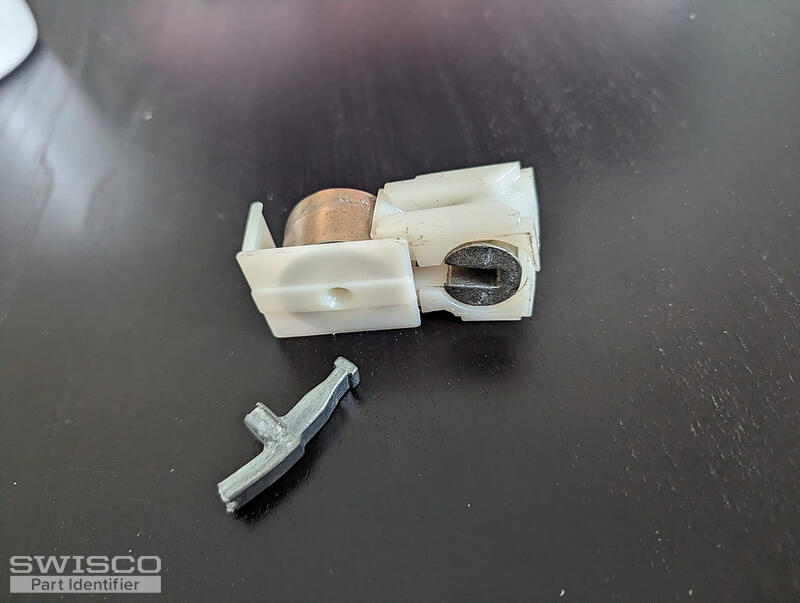

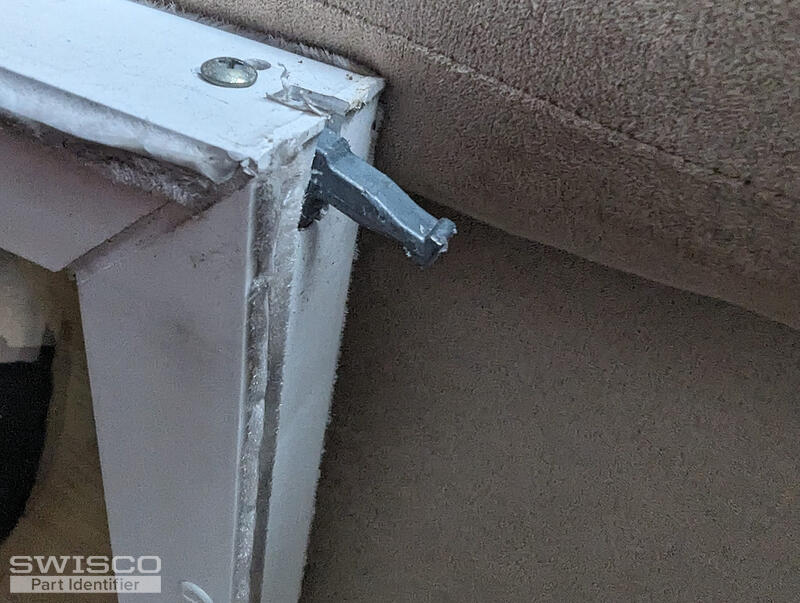

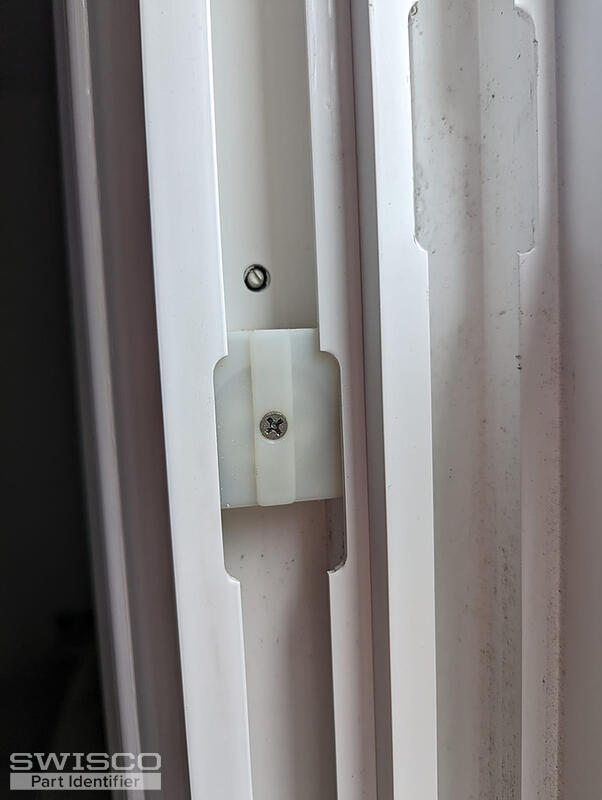

Hello. The piece is 1 1/4" wide, 3/4" deep and 2 3/4" long. What can I replace with this? I saw there is a coil weight, which one should I buy? Each window is weighing about 12.5 lbs.

Thanks
Thumbnail of the uploaded file named WhatsApp Image 2023-09-18 at 2.22.41 PM(3).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2023-09-18 at 2.22.41 PM(2).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2023-09-18 at 2.22.41 PM(1).jpeg
Thumbnail of the uploaded file named WhatsApp Image 2023-09-18 at 2.22.41 PM.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 19, 2023

Hello,

Take a look at the conversion video shown below for Simonton windows that use this type of assembly. For a 12-1/2" pound sash, I would recommend using one S159-6 coil on each side of the window. Thanks for posting!

Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
6.5 lbs Series 159 Coil Balance
6.5 lbs Series 159 Coil Balance
S159-6
$6.14
3/4" Coil Single Support
3/4" Coil Single Support
15-255
$1.09
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-083
$1.12
How to replace a Simonton coil balance
How to replace a Simonton coil balance
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
