Simonton window balances and tilt clips

Start a new Discussion

Home Owner from Saginaw MI

May 10, 2021 8:34 pm

Looking to replace the balances and tilt clips on my simonton windows. Need help identifying the correct parts.

3 user uploaded images

6 Replies

Tom from SWISCO

May 13, 2021 2:10 pm

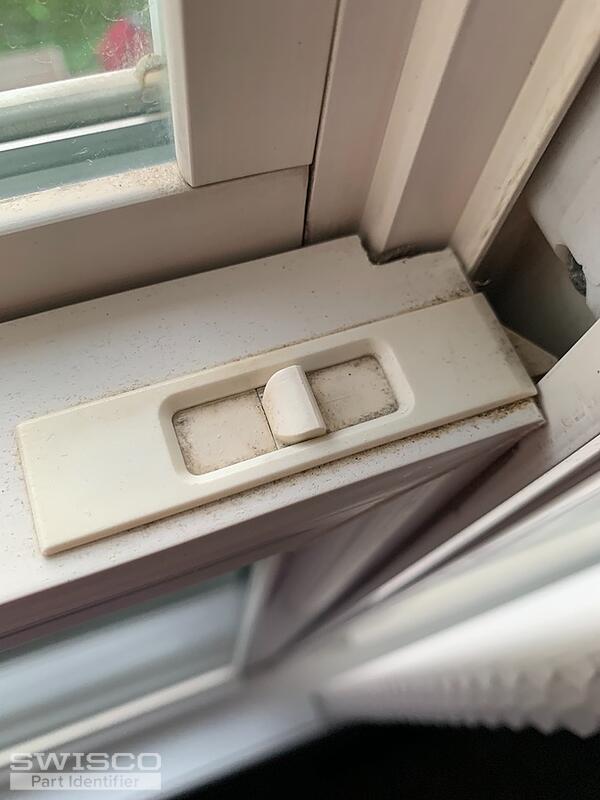

Hello! For your tilt latches, see our 26-243 and 26-244. For the balance, that's our 15-111 pivot shoe but I'm not sure about the coil spring itself. Can you tell me how thick the spring is?

Home Owner from Saginaw MI

May 19, 2021 12:52 pm

The spring is 1/2 inch

Tom from SWISCO

May 19, 2021 1:48 pm

Great, thanks! For that, I recommend the Series 160 coil spring.

Home Owner from Saginaw MI

May 19, 2021 2:47 pm

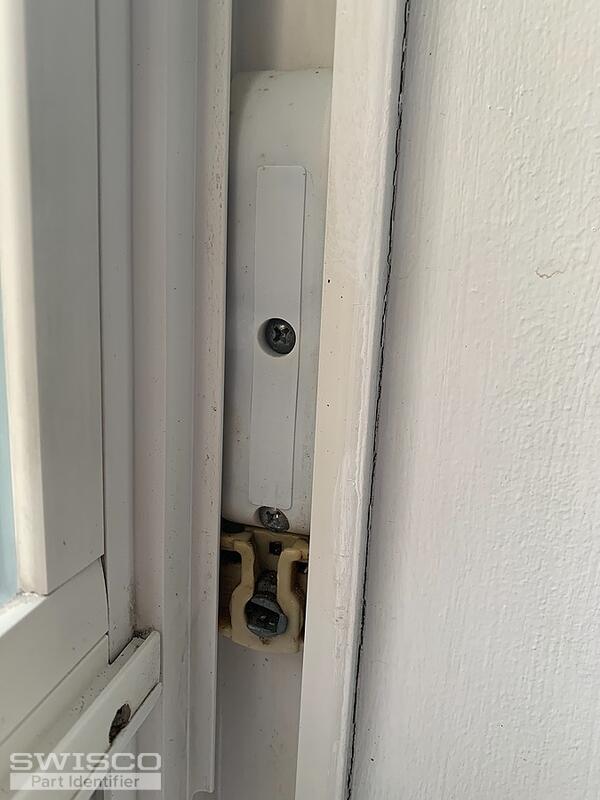

What about the plastic coil covering? Picture 2. I have a few of those that also need to be replaced

Tom from SWISCO

May 20, 2021 8:32 am

Sure thing. Since you have the 1/2" thick Series 160, and since it looks like you have two springs under that cover, then you can use the 15-150D.
