Simonton window hardware

A landlord says:
November 25, 2022

I need the replacement parts for the Simonton coil balance and pivot bar. If you have any questions please feel free to contact me.

Thanks

- Charles

Thumbnail of the uploaded file named F58E66B0-34AE-4EB2-9BE6-30A4FC9AC86F.jpeg
Thumbnail of the uploaded file named B4C56778-2545-4A42-85F9-11EBD8D044E3.jpeg
Thumbnail of the uploaded file named A5419707-7A7B-44B4-B7A7-0B64DF8CB38B.jpeg
Thumbnail of the uploaded file named B6A7FDBF-4200-415F-B249-0F6C4B56F6F0.jpeg
A landlord says:
November 25, 2022
I need replacement parts pivot bar and coil

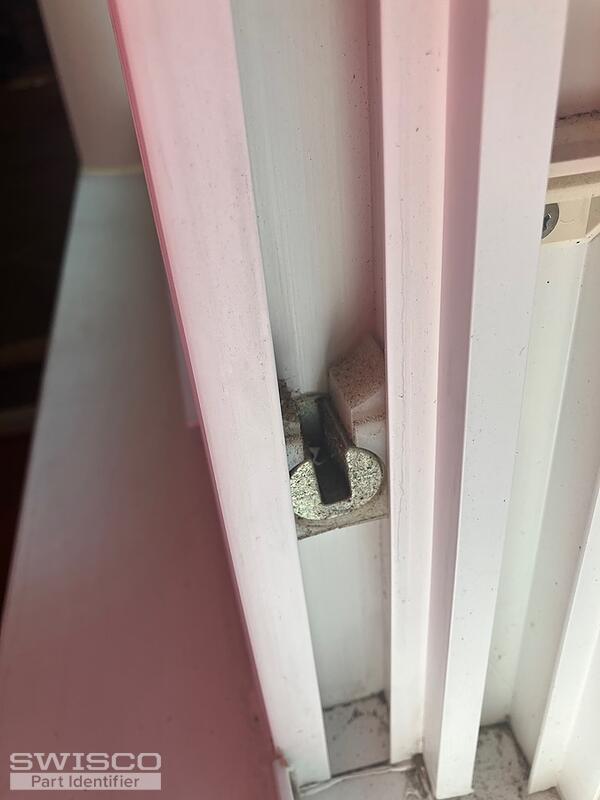

Thumbnail of the uploaded file named 02923F8F-A9D9-452C-94DB-95557B0D7929.jpeg

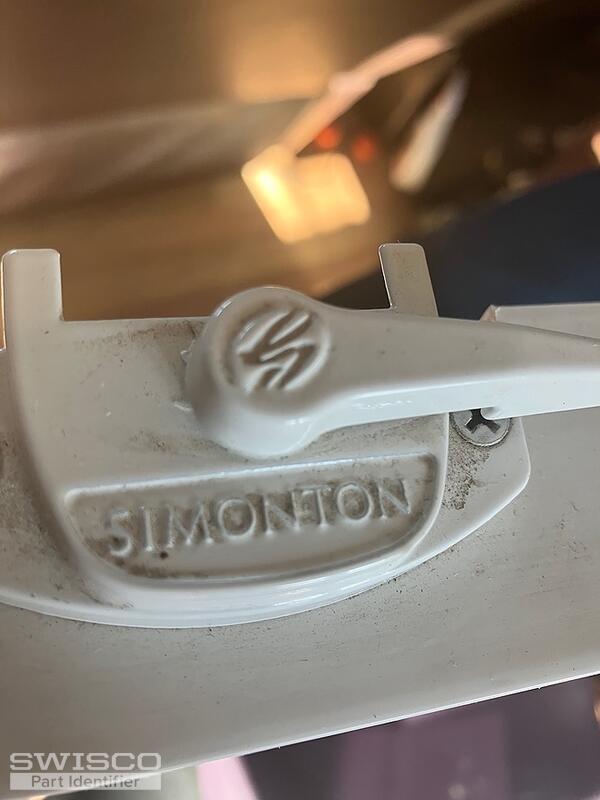

Thumbnail of the uploaded file named 2E69DCE2-05AF-4DFE-B75F-1C89CDABDB97.jpeg

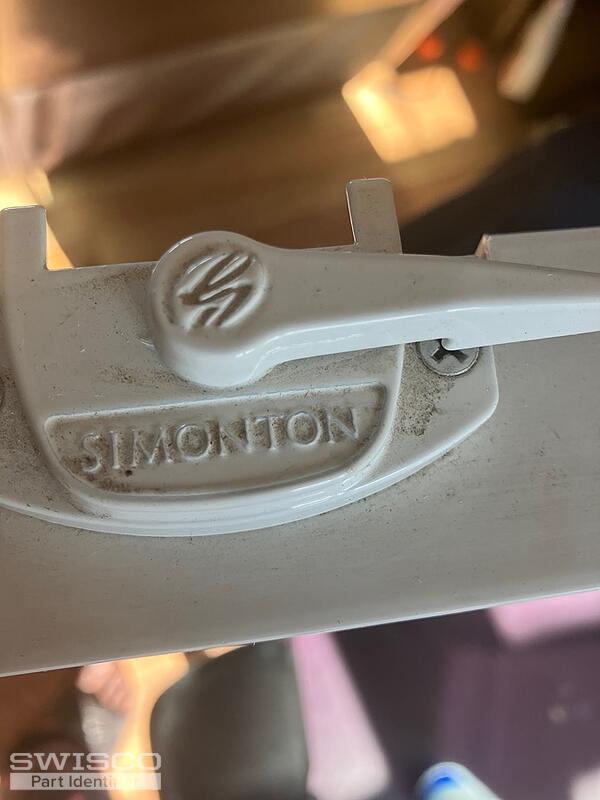

Thumbnail of the uploaded file named 5A8CDBBC-D259-4F71-91D2-48F98E04B4AA.jpeg

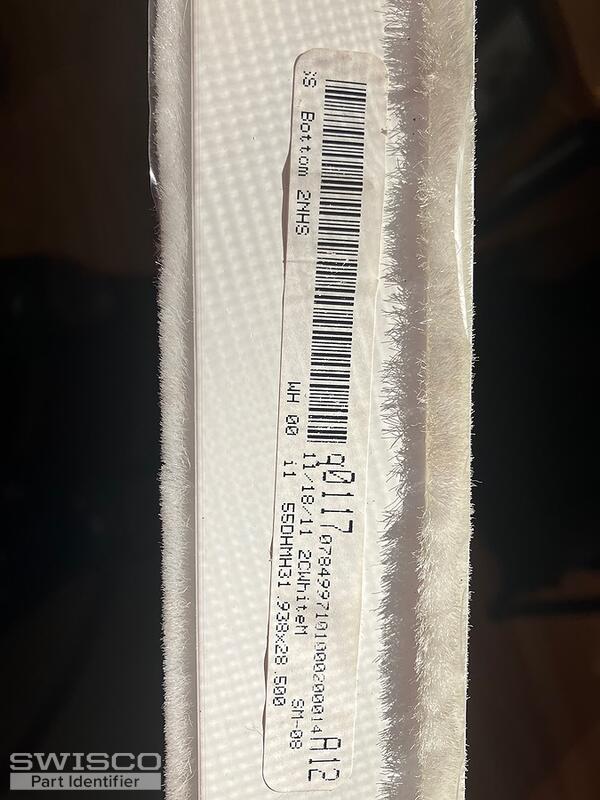

Thumbnail of the uploaded file named F81C64EC-C22F-4D5A-951C-335A1F2D85A8.jpeg

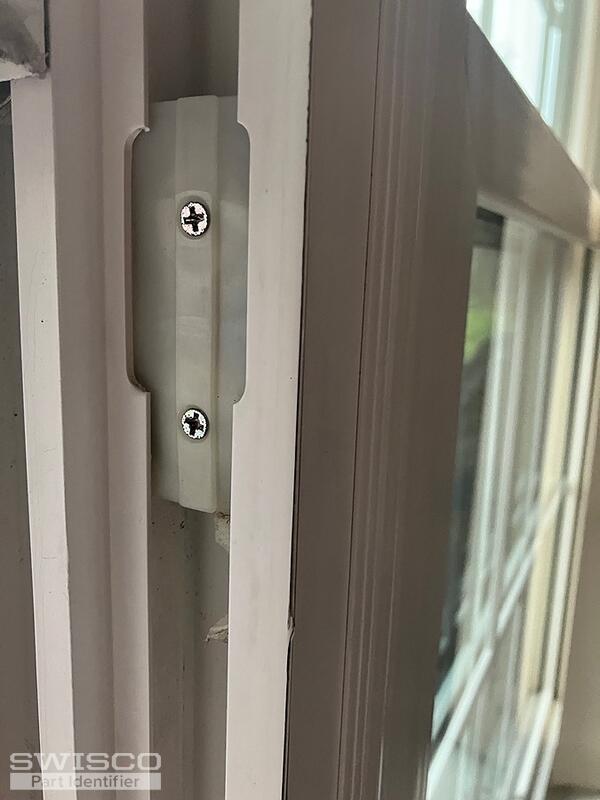

Thumbnail of the uploaded file named 4FD03427-AEB8-48AE-8EA0-89171C470FC1.jpeg
Profile picture of Emily
Emily from SWISCO responded:
November 30, 2022

Hi, Charles.

Since this is a Simonton brand window, my recommendation would be the 15-259 pivot shoe and Series 159 coil springs. The video below will detail exactly how to convert to this system.

We don't sell your exact lock but we may still be able to help. Can you write out the distance between the two installation holes, measured from center to center? I can narrow down your options once I have that.
Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
