Single hung. Block and tackle

A contractor from Pawleys island SC says:

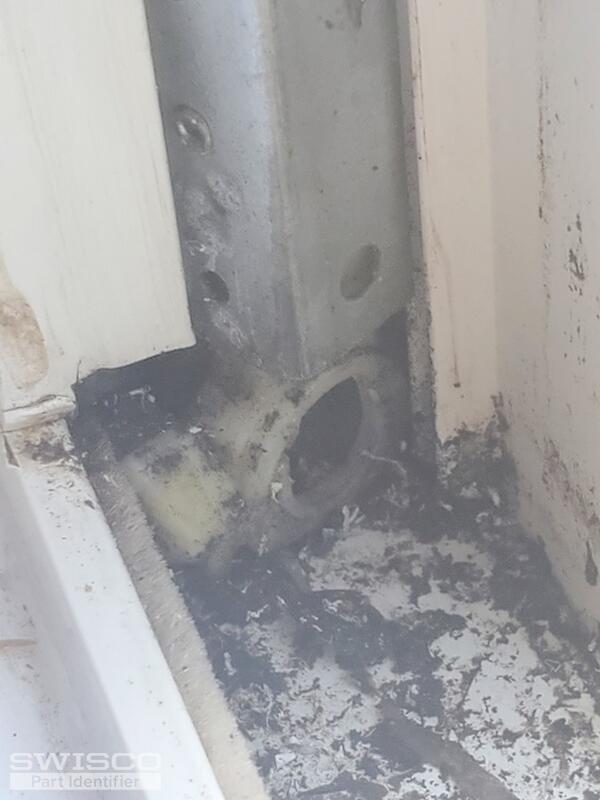

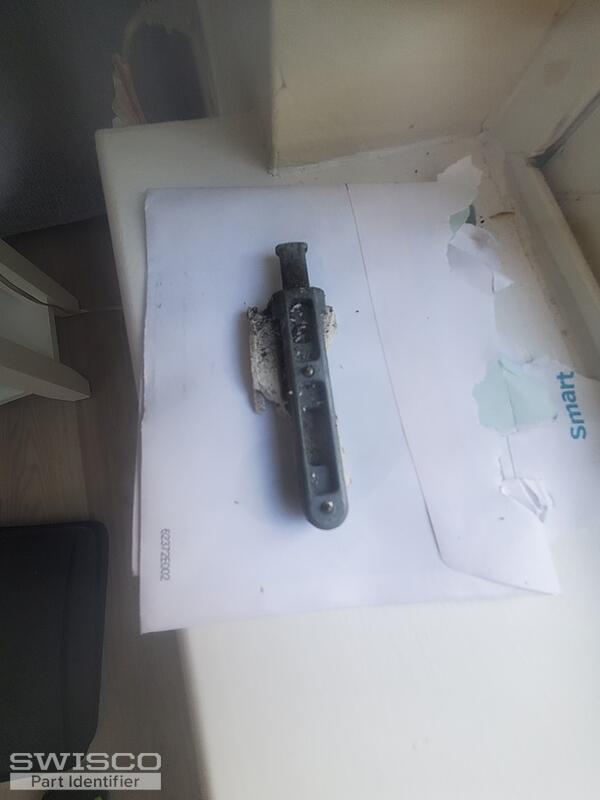

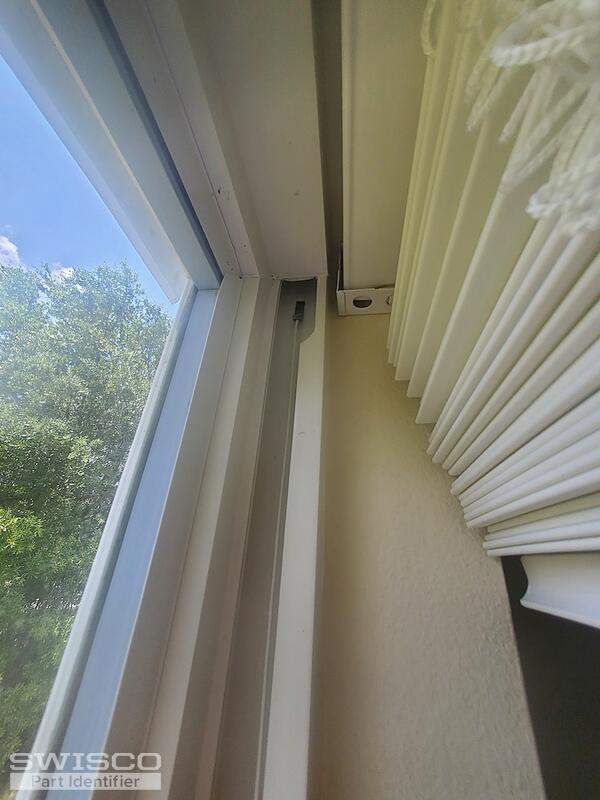

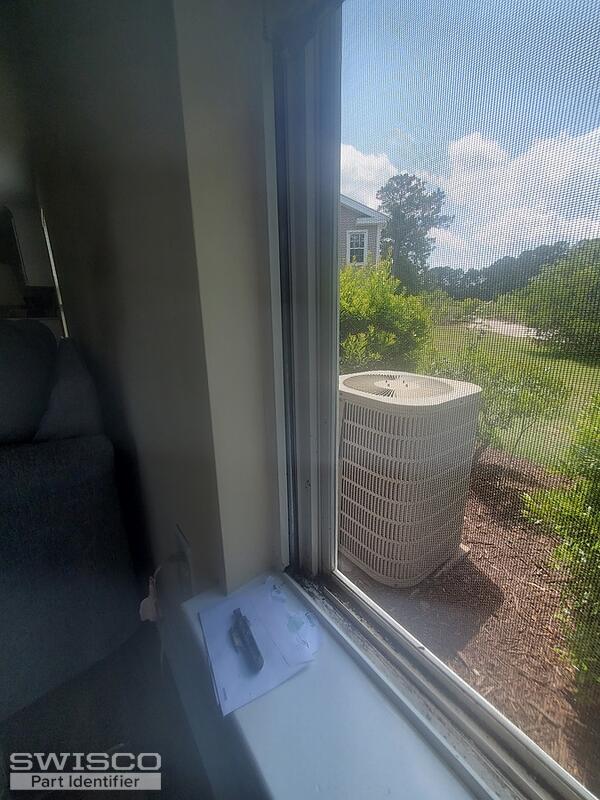

What series would I purchase to replace these block and tackle?
The sash were stuck and my customer broke the vinyl around the pivot pin trying to lift them.
I'll deal with that later.
Thumbnail of the uploaded file named 20220516_122629.jpg
Thumbnail of the uploaded file named 20220516_122519.jpg
Thumbnail of the uploaded file named 20220516_122423.jpg
Thumbnail of the uploaded file named 20220516_122416.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

Your balance appears to be a match for our Series 795. This comes with our 15-195 closed cam T-lock shoe by default so we recommend removing an undamaged version to confirm it matches up to ours.

We don't carry your exact pivot bar but our 26-366 is our closest match. I know it has a different tip but this should work fine as long as the dimensions match up to your original pivot bar.

One important detail to note is that the Series 795 attaches to the top of the track using a screw, not a hook. If yours needs a hook then let me know; we can still help but your balance will have to be custom made.
