Single hung non tilting window balance hardware

Home Owner from Lakeland Fl

Mar 25, 2017 1:16 pm

There is not any markings on the balance. The only paper label on the window is series; 1100/1450 SH AAMA/NWWDA 101/I.S/2/97. H-R40-44X84. H-R40-88

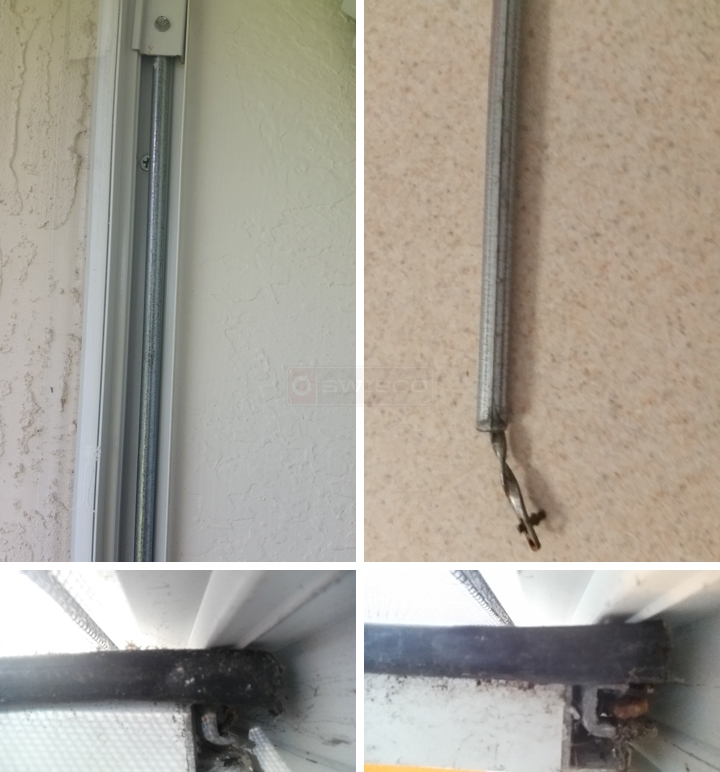

User submitted photos of window hardware.

6 Replies

Tom from SWISCO

Mar 30, 2017 9:37 am

Thanks for posting! What is the diameter of the outer tube? If it's 3/8", I recommend our Series 400 spiral balance. If it's 5/8" or 9/16", I recommend our Series 500 instead. See what you think!

Home Owner from Tampa, fL

Apr 8, 2020 12:27 am

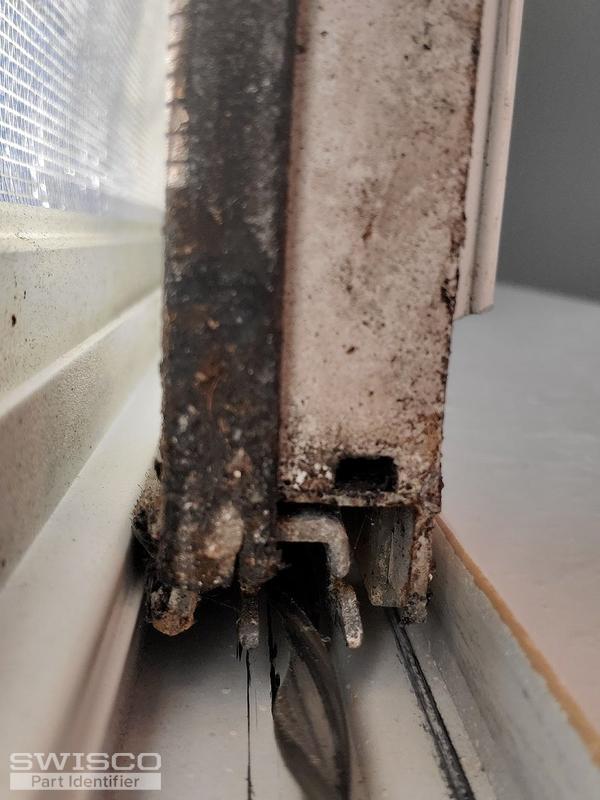

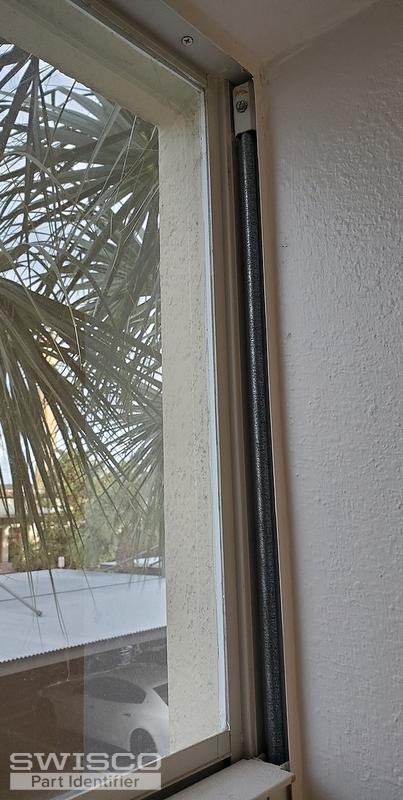

I have the same windows with the spiral balance. The diameter of the outer tube is 3/8". So, I will look at your Series 400 spiral balance. My question: Is there supposed to be some kind of bracket the holds the end of the spiral balance? In a video I saw, one side of the bracket clasps on to the spiral balance and then it is screwed to the underside of the window to hold the bracket in place. See attached image of bracket I saw on the internet. None of my windows have anything holding the bottom of the spiral bracket. See the other two attachments of my windows. Were they installed wrong or is a bracket not needed to hold the end spiral balance?

4 user uploaded images

Tom from SWISCO

Apr 9, 2020 11:02 am

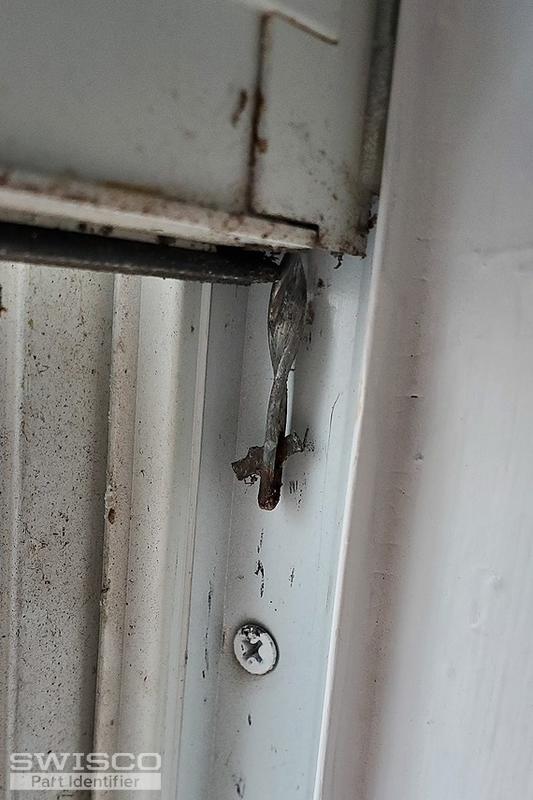

Hello! Your window does have a bracket, in fact. I can see it in your fourth photo. It's that U shaped piece of metal between the sash and the jamb track. Unlike the bracket you found in that video, which mounts under the sash with a screw, yours mounts to the side of the sash with a screw. It's probably something like our 17-010, for example.

These brackets can be frustrating to deal with. Making sure the balance tip snaps in properly is easier said than done. It's tough to get an angle but it is possible. Just have a friend hold the sash up while you get under there with a tool like our 75-005. With a little bit of contortion you should be able to get in there.

Home Owner from Tampa, fL

Apr 9, 2020 1:46 pm

Am I forced to use a bracket that tucks into the side jamb or can I change it to one that screws under the sash like the video shows? Lastly, it appears that there is no way to remove the sash from the track. I've removed both spiral balances. I cant even shift the sash to the side to then pop out one side and pull it out. There are no clips or locks along the track. It seems I have to remove the entire window frame from the wall. Does this seem right or perhaps there is some other trick to get the sash out?

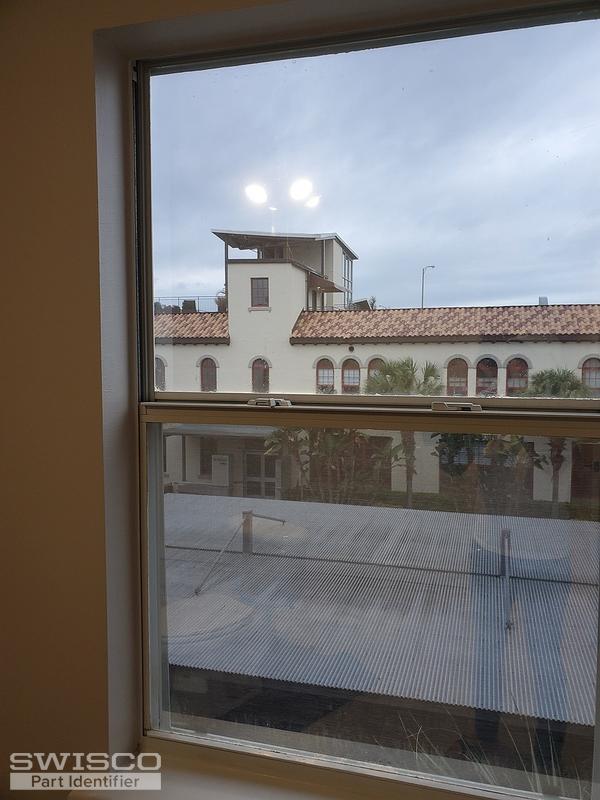

3 user uploaded images

Tom from SWISCO

Apr 9, 2020 2:12 pm

Unfortunately, there is no way to remove this type of sash. The window manufacturer figured that if anything breaks, you'd just buy a new window entirely. This window isn't meant to be repaired.

We don't think that's fair, so we do offer replacement parts for it. Installing them can be tricky but it is possible. To replace the balance, for example, you'll need to pull it up and out of the sash from the top and put the new balance in the same way.

You also aren't able to convert the type of bracket you have. You're pretty much stuck with this one, unfortunately. I know it's a hassle but that's just how these windows are made. They want you to spend money on a whole new window so they don't want to make it easy for you.
