Single hung vinyl window pivot parts

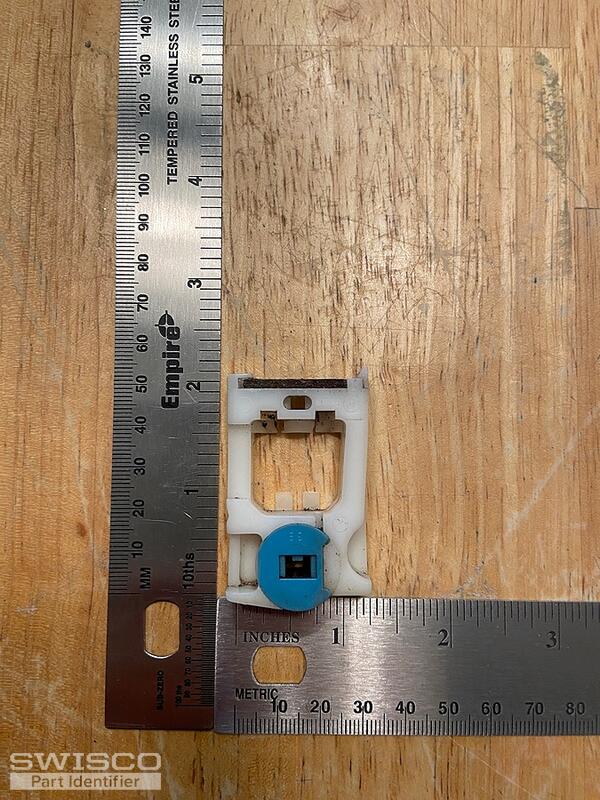

We should be able to help with this hardware, though your pivot shoe has a bit of an odd design. I'm reminded of our 15-015. I recommend reviewing our dimensions carefully to ensure that they line up.

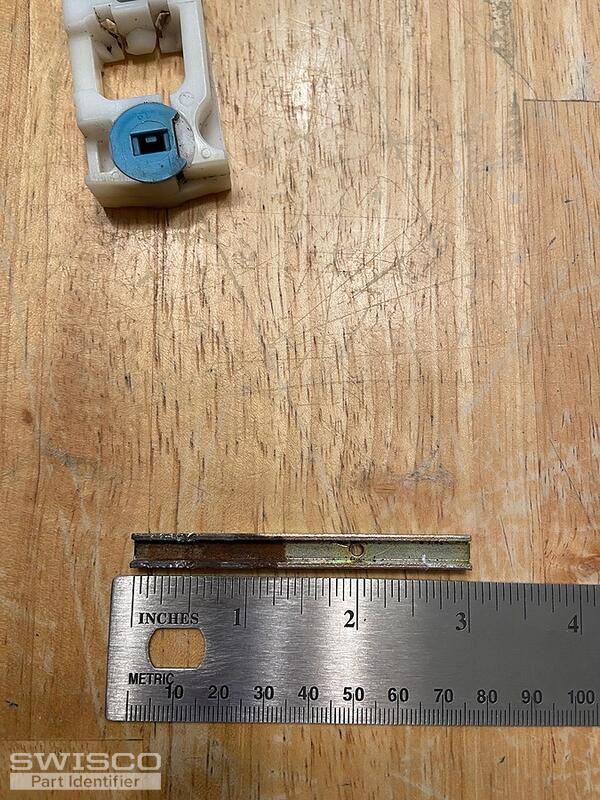

For the pivot bar, my suggestion is the 26-040. As before, review our dimensions to confirm.

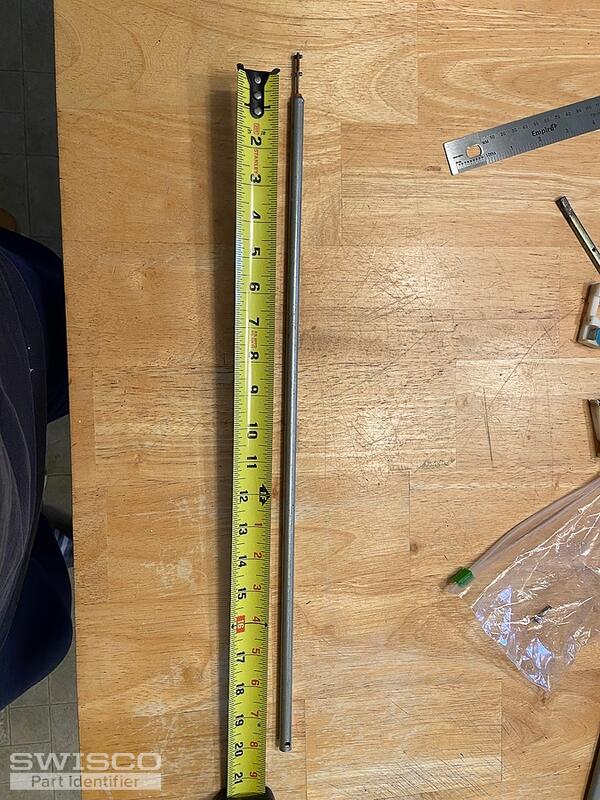

Finally, for the spiral balance, the best match will depend on the diameter of the tube. For 3/8" you want our Series 900, and for 9/16" you want the Series 600.

Dimensions for 15-015

Alternate image for 26-040
