Slide in Groove

Quick Learner from South Korea
Please let me know the value of slide in groove.
My window frame is about 2mm thick.
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It sounds like you may be referring to the measurements of the 26-420 tilt latch. If so, see the specifications from our product page below. Let us know if you have any other questions and thanks for posting.

Alternate view of 26-420
Alternate view of 26-420

Alternate view of 26-420
Alternate view of 26-420

Quick Learner from South Korea

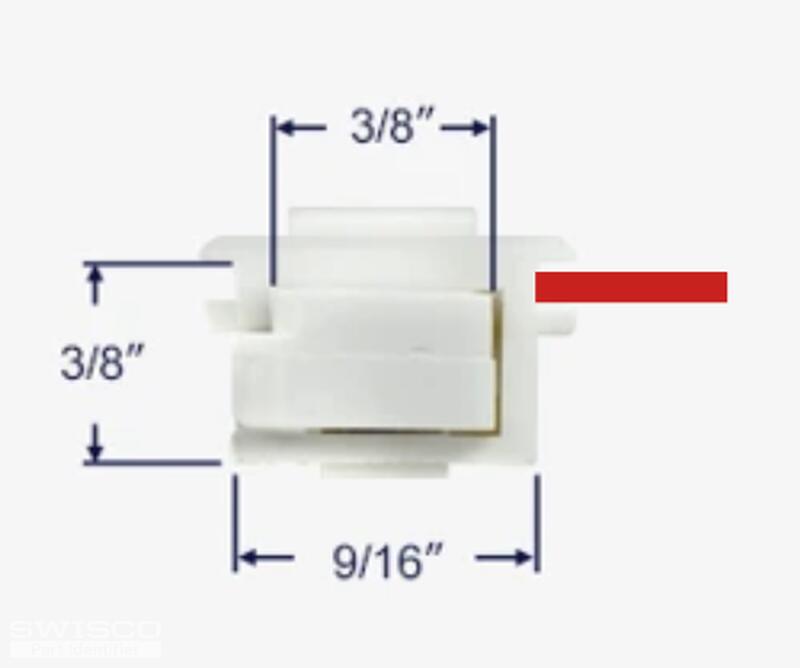

I'd like to know the thickness of slide. RED in picture.
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

The groove itself is just under 3/32" wide, while the overall width is the same as the 9/16" measurement shown in our diagram.
