Slider handle assembly

A quick learner from New Milford, CT says:
The Pella Serial Number: Imperv sliding dr-M0310431878-NFRC JAN20 2008 11

I would like to replace the entire assembly, including the lock. I thought the 82-086 would work but I'm not sure, hence, "Ask the expert!"

Thank you!
Thumbnail of the uploaded file named pella 163a.jpg
Thumbnail of the uploaded file named pella 163b.jpg
Thumbnail of the uploaded file named pella 163c.jpg

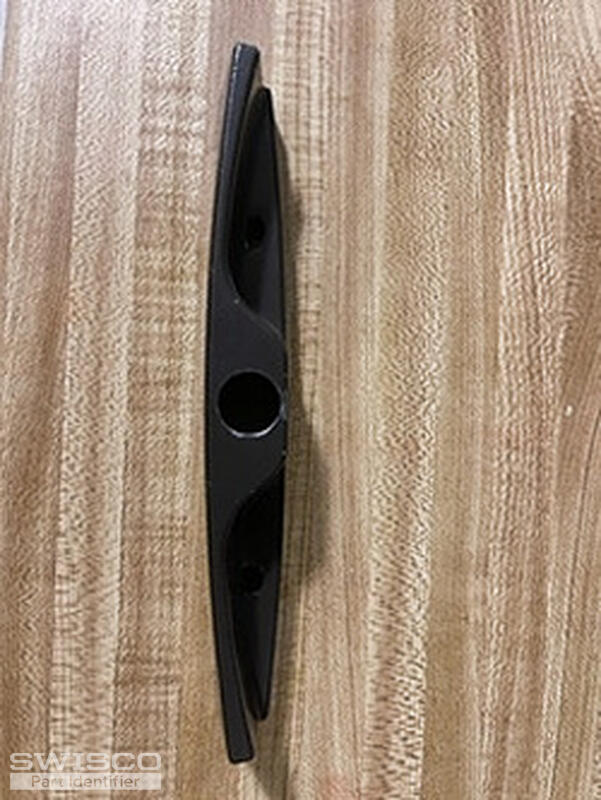

Thumbnail of the uploaded file named pella 163d.jpg

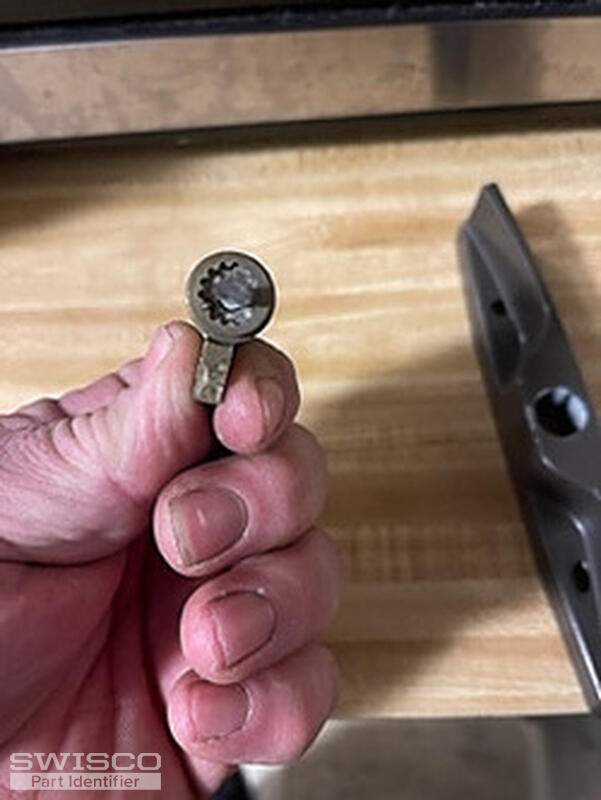

Thumbnail of the uploaded file named pella 163e.jpg
A quick learner from New Milford, CT says:
The Pella Part number is 01GV4001

I think I need 82-306 which is out of stock. I just added my name to the wait-list.
Profile picture of Emily
Emily from SWISCO responded:

Hello!

Since the thumb lever is fixed in the bottom position on our 82-086, while yours is in the middle, it won't align with your mortise lock. It won't work for you. However, take a look at our 82-030 handle set. This has an adjustable thumb lever that can work in any position that you need. You can also adapt the 82-310 key lock to the outside pull. This article here explains how. See what you think!

A quick learner from New Milford, CT says:
Thank you, Emily.
