Sliding Glass Door Lock Mechanism Broke

A quick learner from St. Louis says:
October 2, 2020

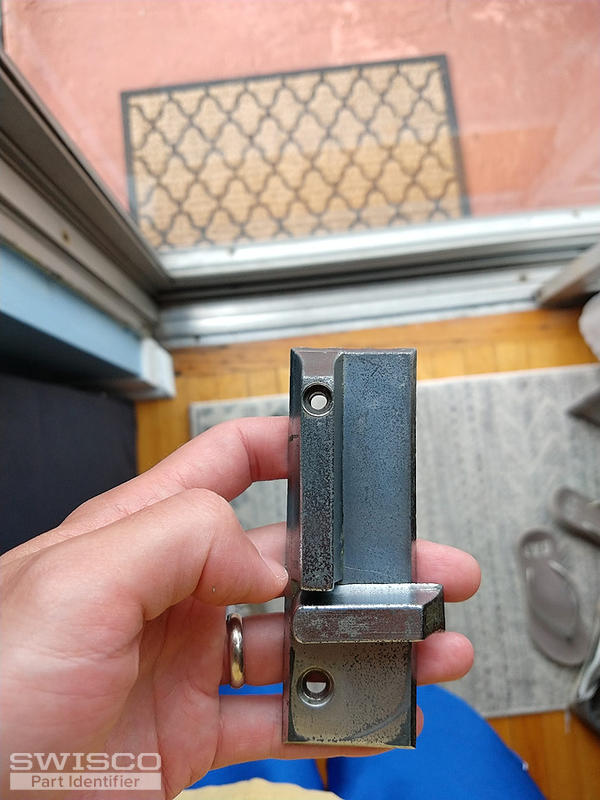

The lock mechanism in our sliding glass door broke. It unfortunately fell apart when I took it out, so I don't have images of the mechanism itself. I believe it was a mortise style lock. A little hook came out and gripped a strike plate.

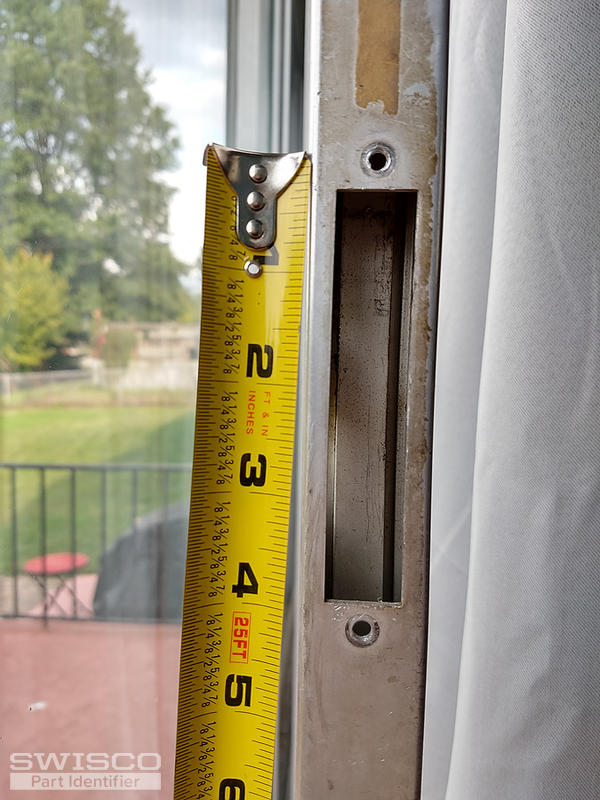

I do have images of the door handle and the door area that the lock set in. The door handle had a square peg that fit into a square hole on the mechanism itself.

Hopefully this is enough! I've tried everything else to fix our door.

Joshua

Thumbnail of the uploaded file named IMG_20200908_163136824_HDR.jpg
Thumbnail of the uploaded file named IMG_20200908_163154588_HDR.jpg
Thumbnail of the uploaded file named IMG_20200908_163218030.jpg
Thumbnail of the uploaded file named IMG_20200908_163238050_HDR.jpg
Thumbnail of the uploaded file named IMG_20201002_130215_1.jpg
Profile picture of Casey
Casey from SWISCO responded:
October 6, 2020

Hi Joshua,

Unfortunately, I can't tell what hardware your door originally used based on these photos. In this case, I would recommend a surface mounted option like our 82-005.

One stipulation is that you would most likely need to drill new installation holes, being careful not to hit the glass in the door. Also, look over the installation video we've related for more information. Thank you!
A quick learner from St. Louis says:
October 6, 2020
Oh well. Thank you for the reply and recommendation!
