Sliding Glass Door Roller

Question

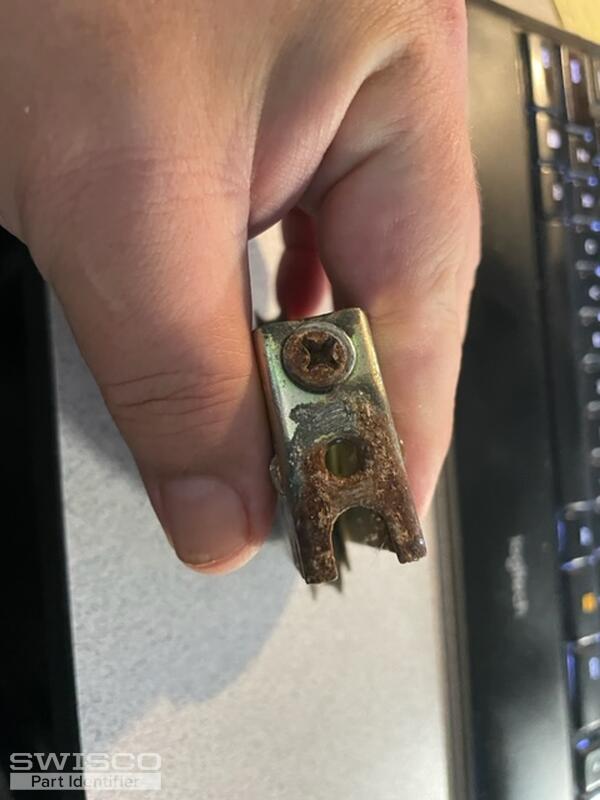

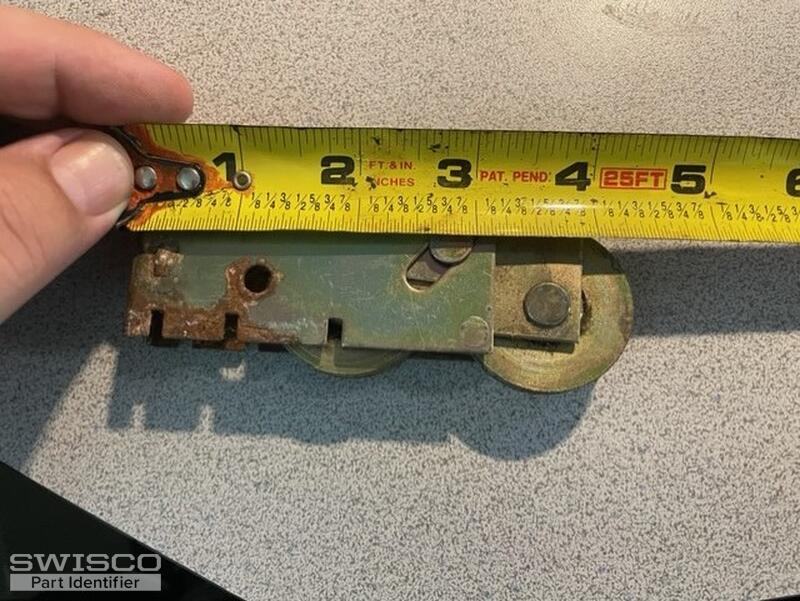

I'm looking for the right sliding glass door roller. The roller I have is 3 1/8" wide for the housing and around 4 1/8 to 4 1/2" wide with the roller. The thickness is 3/4" and the wheel is 1 1/2" across. The adjustment screw is on the top.

The only one I could find on your site is Product Code: 81-153, however this one has the adjustment screw on the bottom, mine is on top.

Bob · Accepted Answer

The 81-153 does seem like the closest match, based on pictures and dimensions. Concerning the placement of the screws, you can use the upper hole in the door stile (which was for the adjustment screw) for the mounting hole and the lower hole for the adjustment screw. You might need to widen the hole a little for adjustment screw, but I have done this in the past when faced with the same situation. Note that any modified product cannot be returned for a refund. Take a look and see what you think.
