The handle and lock is for an exterior patio door. It is on a Reliabilt sliding glass door, sold at lowes.
The upper claw latch first quit latching many months ago. Then after repeated abuse from the littles in our house the thin aluminum gave way on the handle.
The measurements are as follows:

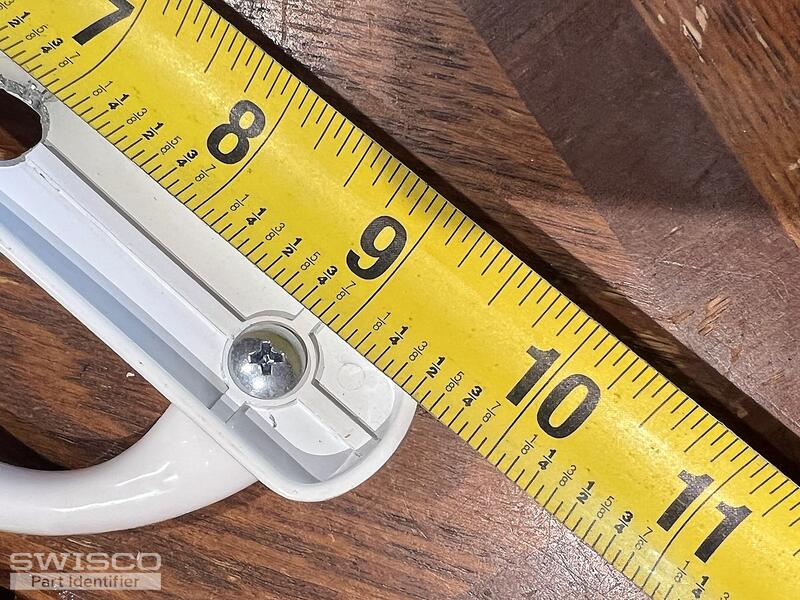

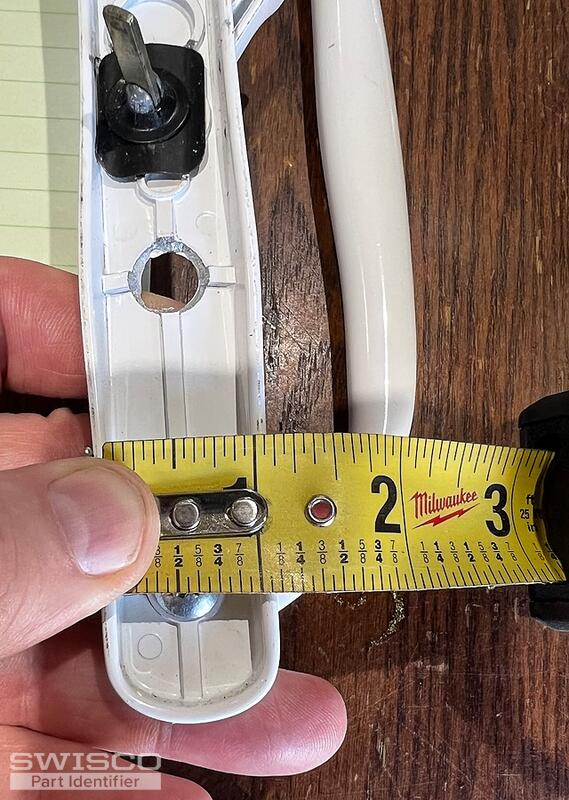

Handle:
9 11/16 long
1 inch wide
7 15/16 between handle screws
3 15/16 between mounting screws
Keeper:
10 7/8 long
5/8 wide (approximately)
Lock:
11 3/4 long
3/4 wide
It appears that item 82-265 and 82-249 will work but I need help finding a sufficient handle.
Thank you in advance
|
Lauren from SWISCO responded:
May 4, 2023
Hello, thank you for posting, I agree with your assessment regarding the 82-265 mortise lock and 82-249 keeper as replacement options. As long as the dimensions match up, these products should be a good fit for your door! For the handle set, please review the 82-089 that has a 3-15/16" installation hole spacing from center to center. We also carry the 82-086 that has a key lock for exterior access. Please review and let us know if you have any additional questions! |
