Sliding Glass Patio Door Wheel : SWISCO.com

Landlord from ithaca, ny

Jul 17, 2025 4:41 pm

Width 3/4 in
Height 1 1/4 in
Length 3 in
Wheel Width 1/4 in

Can't find a similair style or replacement style that is similar - any help would be appreciated! Pretty old I think. Sliding glass patio door in a house we manage - maintenance cannot find a replacement for it.

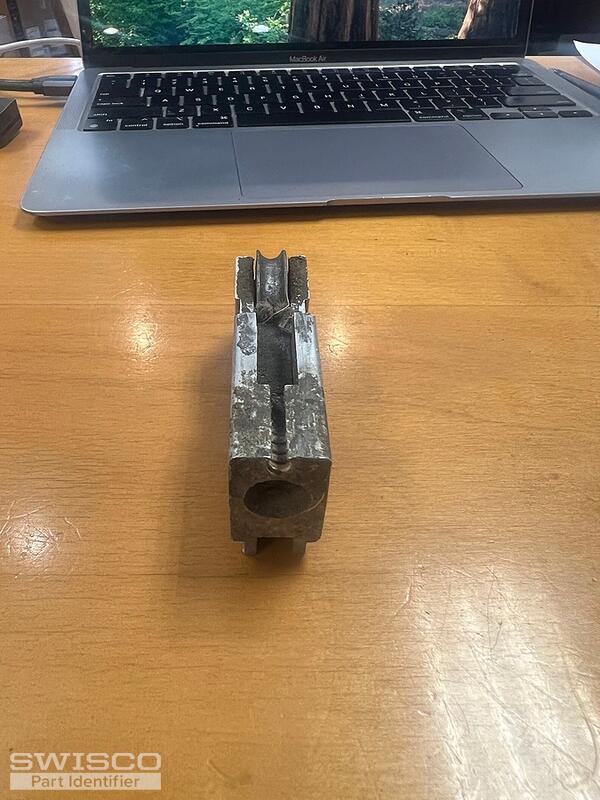

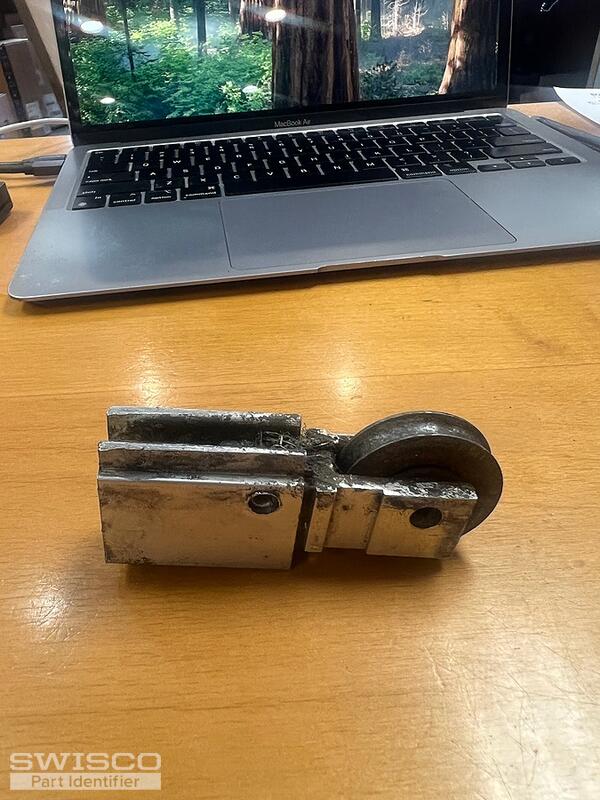

5 user uploaded images

3 Replies

Emily from SWISCO

Jul 22, 2025 10:18 am

Thank you for reaching out to us. We don't recognize this roller. I can't promise we'll have a suitable replacement, but I'm going to consult one of our senior experts. We'll reach back out ASAP.

Dave Sr. from SWISCO

Jul 23, 2025 12:33 pm

I couldn't find your older style patio roller from any of our suppliers. If your roller housing is in good working condition, I suggest replacing just the wheels using the 81-266 roller and axle kit. This could be a quick and effective fix.

However, if you need to replace the entire roller, consider the 81-279 or 81-023 rollers. For these parts, you will need to remove the bottom rail from the patio door and drill or countersink the hole underneath the glass. This will allow you to install the top mounting screw (part 33-103) through the bottom door rail and into the top of the roller housing.

I recommend checking out all the related rollers along with the related videos on patio doors for more guidance.

Alternate image for 81-023

Alternate image for 81-279
