Sliding door and window parts

Question

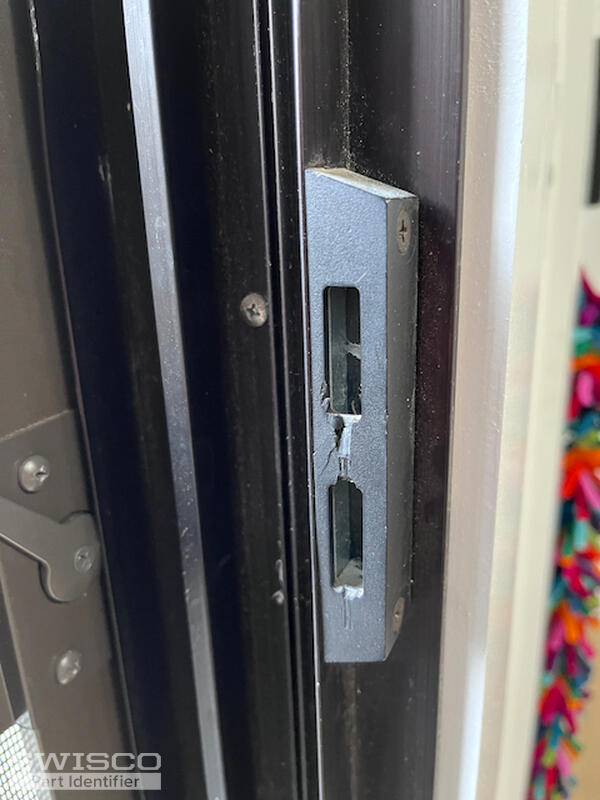

The part that the sliding door handle latches into is cracked, as you can see in the picture, circled in green. I hope you can identify it from the picture. It looks like it should be easy to replace.

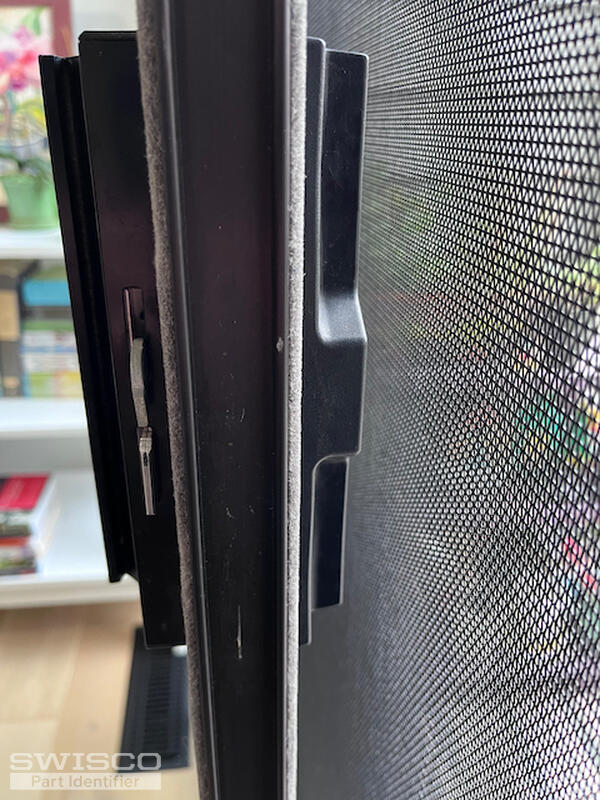

The other picture shows the two parts of a sliding window handle. The lower part, that my finger is touching, can keep the handle locked. But that lower part falls down. I think it used to have a spring that fell out. (I'm not the original owner so I don't know the history). Again, hoping you can identify the part and have a replacement! Additional info: HOA docs show that the brand name is Milgard.

Many thanks.

Casey · Accepted Answer

Hello,

Your handle set resembles the 82-005 surface-mounted handle set with 4-15/16" installation holes. Unfortunately, the face-mounted keeper shown in your photo is no longer available. See the photo below that shows the standard keeper that comes with this set. You would need to determine if you'd be able to drill new holes and have space to install the new keeper in the door jamb.

Unfortunately, we do not carry a replacement for the sliding window latch shown in your second photo. I'm sorry that we won't be able to assist with this part of your repair but please let us know if you have any other hardware questions. Thanks for posting.

Demonstration of the lock interacting with the included keeper.
