Sliding glass door

Question

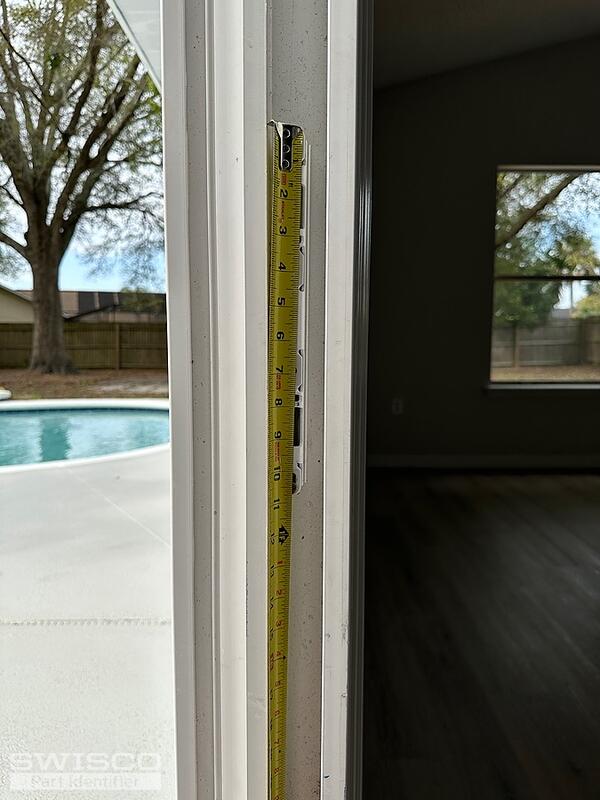

The handle and lock set seems like it is part of the door. Is there a way to get it out and replace it? The lock mechanism is jammed on a broken screw.

Jasmine · Accepted Answer

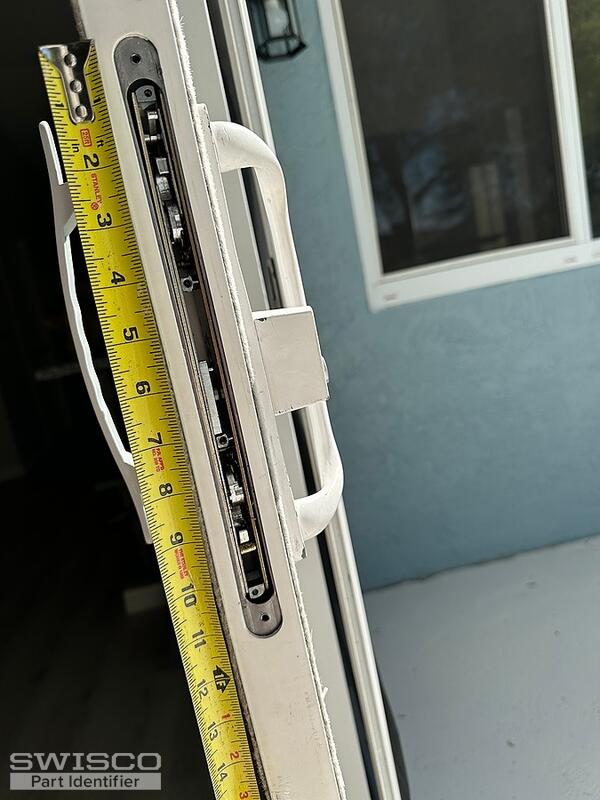

Thanks for posting! Your handle appears to be the 82-086 Legacy Keyed Handle Set and the compatible mortise lock, the 82-265 Multi-Point Mortise Lock. Carefully review and compare their dimensions to your handle to determine if these could work as a suitable replacement.

Dimensions for 82-086

Alternate image for 82-265

The handle and lock set should be able to be removed from the the door frame. Although, before removing the handle, you'll need to reattach the faceplate to the mortise lock so that the lock does not fall into the door frame.

Take a look at the tutorial below for an idea on how to remove the handle set.
