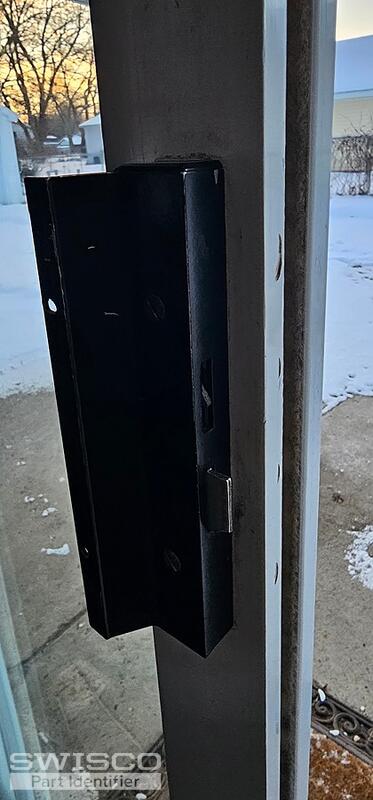

Sliding glass door, surface mount, internal lock handle assembly. Screw holes 4" spacing ( could be 3 15/16" ? ), door is 1 3/4" thick
New unit does NOT need to have external lock
Sliding glass door handle
Contractor from Jackson, Michigan
Jan 15, 2025 3:10 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Jan 16, 2025 8:24 am
Hello,
It looks like you have a surface-mounted handle set similar to the 82-005 but the hole spacing of our assembly measures 4-15/16" on center. This could still work but you would need to make new installation holes in the door, being careful not to hit the glass. You'll also need to see if you could mount the new keeper to the door frame. Review the specifications and installation video below to see what you think. Thanks for posting!
Alternate image for 82-005
Demonstration of the lock interacting with the included keeper.
