Sliding glass door handle and lock

A home owner from Minnesota says:
May 6, 2021

The lock slot is 11" it is a double lock. The door handle holes are just under 4". I got the door without a handle or lock. Looking for a key lock.

Thank you,

Jan

Thumbnail of the uploaded file named 20210426_150800.jpg
Thumbnail of the uploaded file named 20210430_160359.jpg
Thumbnail of the uploaded file named 20210430_160351.jpg

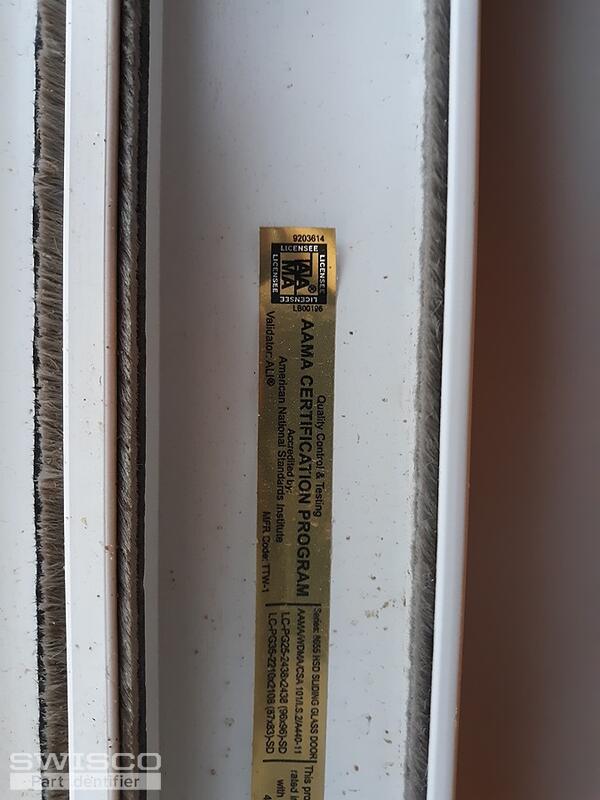

Thumbnail of the uploaded file named 20210426_150821.jpg

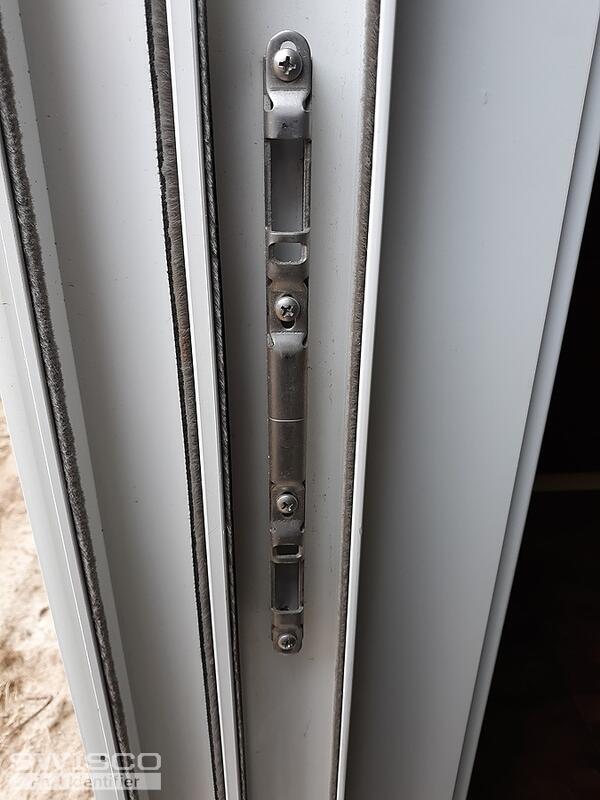

Thumbnail of the uploaded file named 20210430_160407.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 7, 2021

Hi there!

It's difficult to identify a replacement without the original lock and handle but we'll try our best. For a handle, start with our 82-030 handle set which measures 3-15/16" on installation hole centers. Just make sure your handle installation hole centers match this.

Could you let us know the installation hole-to-hole center spacing on your mortise lock cut out?
A home owner from Minnesota says:
May 9, 2021
The mortise cutout is 10 1/4" from top to bottom. The screw holes are at 11". These measurements are for picture 3. Where it locks into the frame picture 5 it is 7" from center lock hole to center lock hole. Is that what you are looking for. Thank you, Jan
Profile picture of Emily
Emily from SWISCO responded:
May 11, 2021

Take a look at our 82-265 mortise lock, it measures 11" on installation hole centers. Keep in mind, these are just guesses and we can't promise these parts will work for you.

If you have any further questions just let us know and good luck with your repair!
