Sliding glass door handle and locking mechanism

Handy Person from Pickerington, Ohio

Dec 31, 2024 12:16 pm

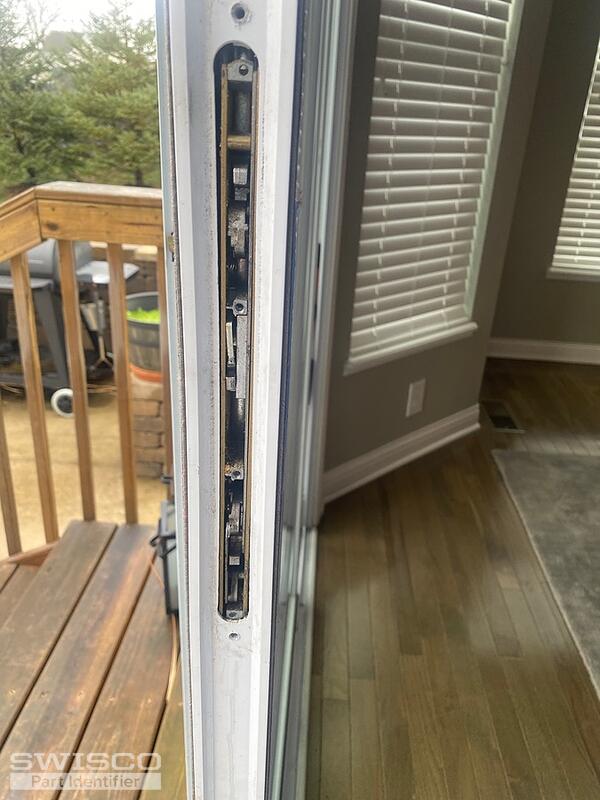

The handles are about 9 5/8 in long, they are offset. The locking mechanism is about 9 7/8 inches long. The plate that holds in the locking mechanism is about 11 5/8 inches long. There is no writing or markings on any of the parts.

5 user uploaded images

4 Replies

Lauren from SWISCO

Jan 2, 2025 8:17 am

Hello, thank you for posting,

Please start by reviewing the style of the 82-086 keyed handle set that has a 3-15/16" installation hole spacing from center to center. Also compare the dimensions of the 82-265 mortise lock to your original that is compatible with the 82-249 keeper.

Let us know if you have any additional questions!

Handy Person from Pickerington, Ohio

Jan 2, 2025 12:00 pm

My offset handle has the latch lever closer to the top of the handle, my door pulls left to right, will it work if I flip the handle from pulling right to left? Also, my overall handle length is 9 7/8 will the 8 1/2 in handle work as long as the holes are at 3 15/16?

Lauren from SWISCO

Jan 2, 2025 12:24 pm

Hello,

Yes, the 82-086 handle set can be flipped for opposite sliding doors. Correct the overall length is not a factor as long as the installation hole spacing aligns with your original. Let me know if you have any additional questions!
