Sliding glass door latch is missing to lock the patio door

Quick Learner from 84102

Jan 25, 2021 4:04 pm

The patio glass door is made from arcadia, the door slides fine but it doesn't lock due to the missing latch that locks.

6 Replies

Bob from SWISCO

Jan 26, 2021 2:32 pm

Can you show me a picture of the handle set and lock in question? From there I'll do my best to narrow this down. Thanks.

Quick Learner from 84102

Jan 27, 2021 5:15 pm

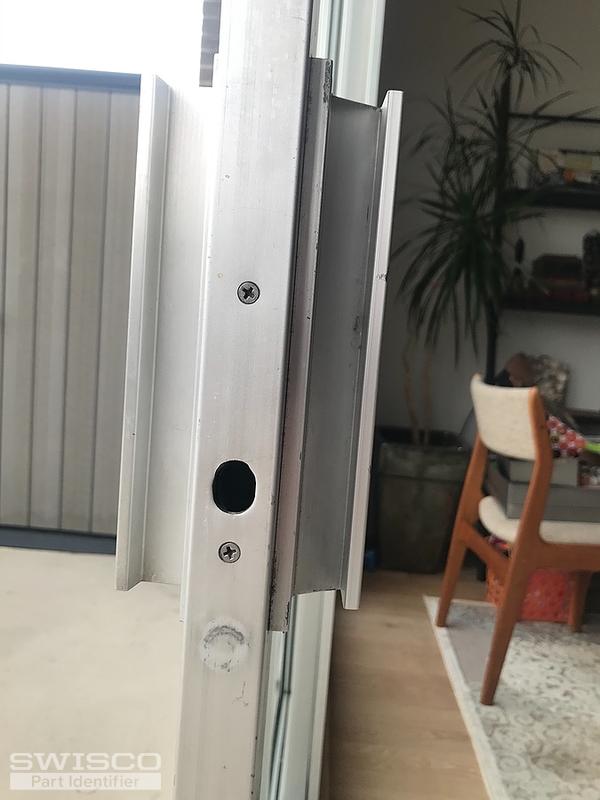

The latch is missing from the handle, it seems like a very slim latch that toggles up and down to lock patio door

4 user uploaded images

Bob from SWISCO

Jan 28, 2021 12:06 pm

Thanks for getting back to me. I'm afraid I don't believe this handle set is not made anymore. See our 82-005 Surface Mount Handle set instead. Look it over and see if you could adapt this to your door.

Quick Learner from 84102

Jan 28, 2021 5:28 pm

Is this the only item that can be used without drilling more holes?

Tom from SWISCO

Jan 29, 2021 9:14 am

Bob's not here today, but I will do my best to help.

Looking at your photos, I agree that we don't have anything that matches this exactly. The 82-005 is a good replacement option because it doesn't interact with any internal lock in the door. That's because it comes with its own built-in mortise.

As for drilling new holes, I don't know if that will be necessary for you or not since you didn't mention what the hole spacing for your old handle was. I can tell you that nine times out of ten you will need to drill new holes for the 82-005 handle set.
