Sliding glass door mechanism

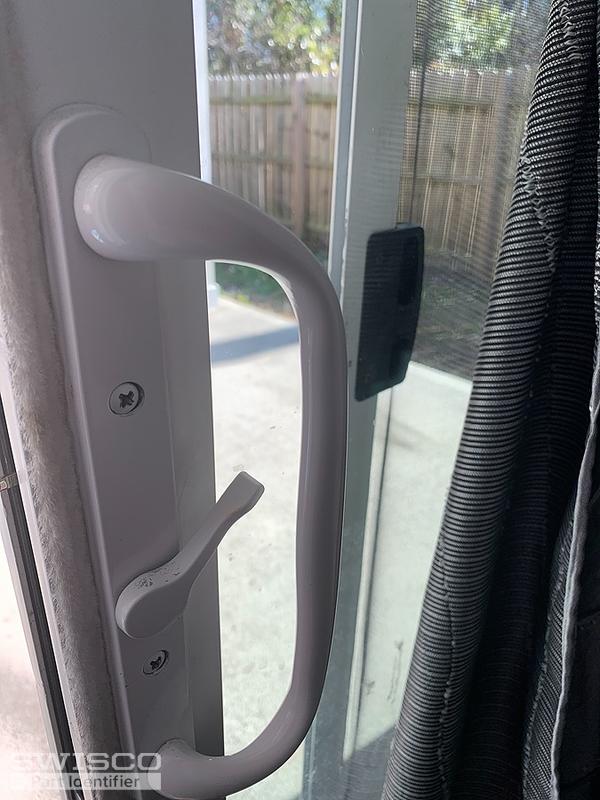

Based on your photo, the 82-239 looks like a good match to me. Can you go into more detail as to why it didn't work?

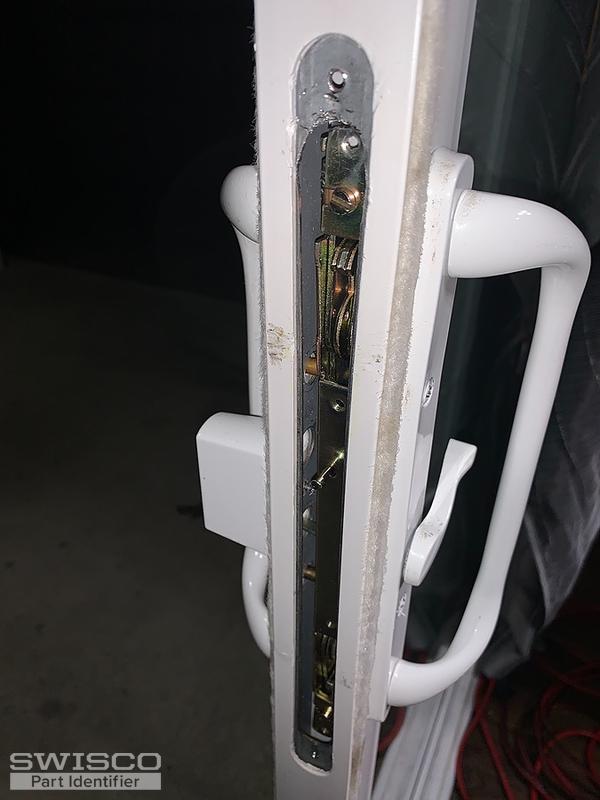

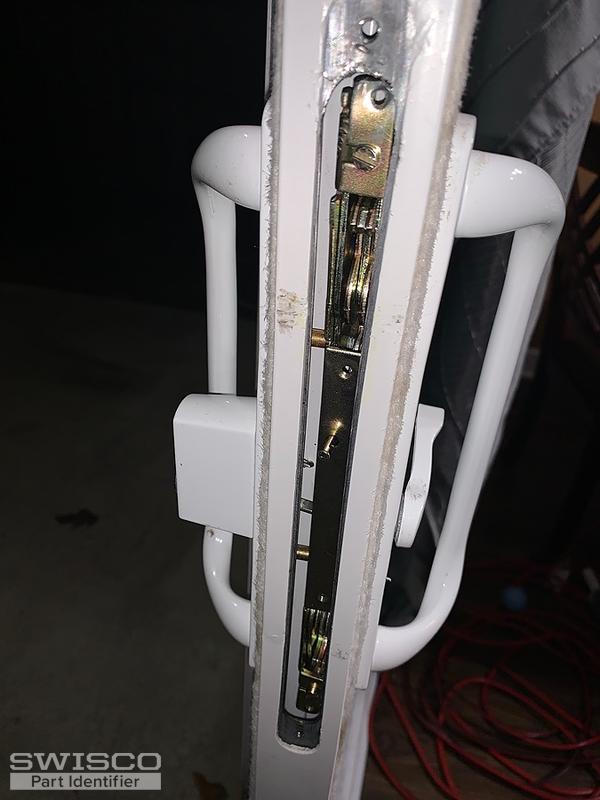

Thank you! It looks like you're missing the face plate, in which case our 82-265 would be the better option. The face plate goes over the front of the mortise and installs on those top and bottom screw holes in the door frame itself. That would explain why it feels so loose, since the mortise isn't technically secured to anything.

Hey there, I believe the screw used is a flat head screw and either a #6 x 1/2" or a #8 x 1/2". I recommend taking one of the old screws in to a local hardware store to make sure you have the right size.

The 82-265 is compatible with many, many different handles. The one you have happens to be one of them; there is nothing we carry that would work better. Based on your description of the issue, you need to trim the key tail down a little more so that the two tails can fit comfortably in the same slot.

We don't sell the screws separately, unfortunately. Losing that screw is definitely not ideal. I would triple check just to make sure no hardware store near you has the same size.

As for trimming the tail down, you can place it in a table vice and use a hacksaw. That's usually what I do. I recommend only cutting a little bit down, then try it out to see if it fits; if not, cut a little more off, then try again, and so on. Better to do it a few times and get it right then take off too much and not be able to fix it.
