Sliding window springs and 1 retaining clop

Quick Learner from Royal Palm Beach, Florida

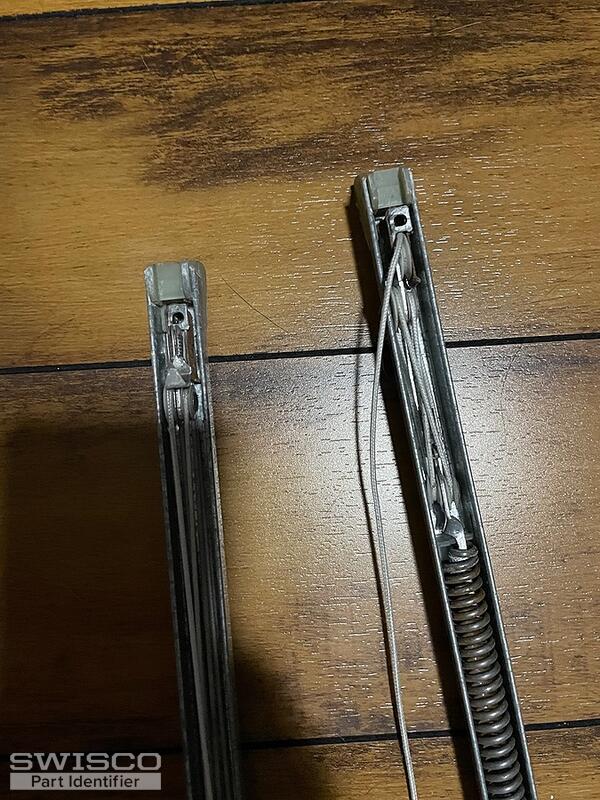

I need to replace these. They measure 31 inches total including the plastic. I broke 1 retaining clip while removing them so I need one of those to.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

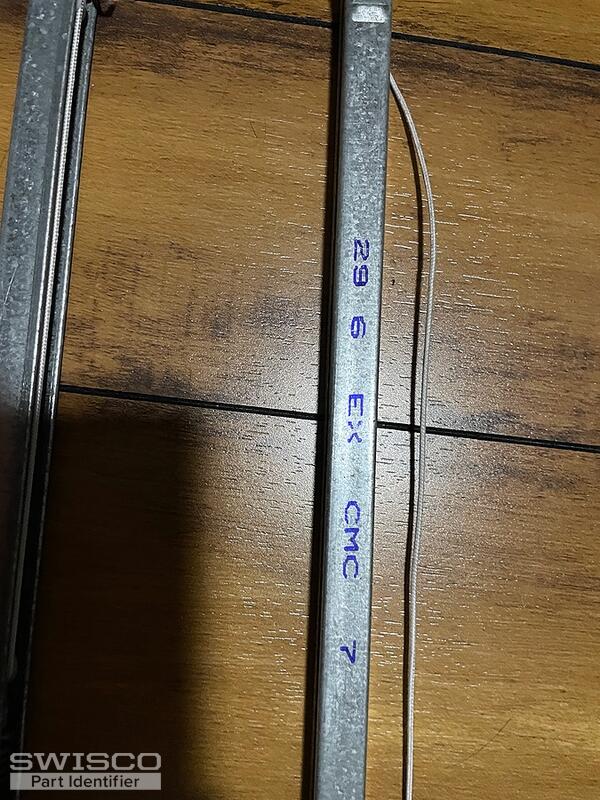

Thanks for posting. It appears the top fitting had wings, or side tabs, whereas the bottom fitting does not. Is that correct? You may want to check an undamaged balance from an identical window to confirm. If so, this is an S395-27--not that the length is measured just by the metal channel, without including the fittings on the ends. For a stamp option, choose 2960. For new Take-Out clips, see the 16-002. Let us know if you have further inquiries.

Reply to Thread
