Spiral Balance and Pivot-Lock Shoe

Question

I am attempting to replace the spiral balances and pivot shoes in my circa 1990 vinyl windows.

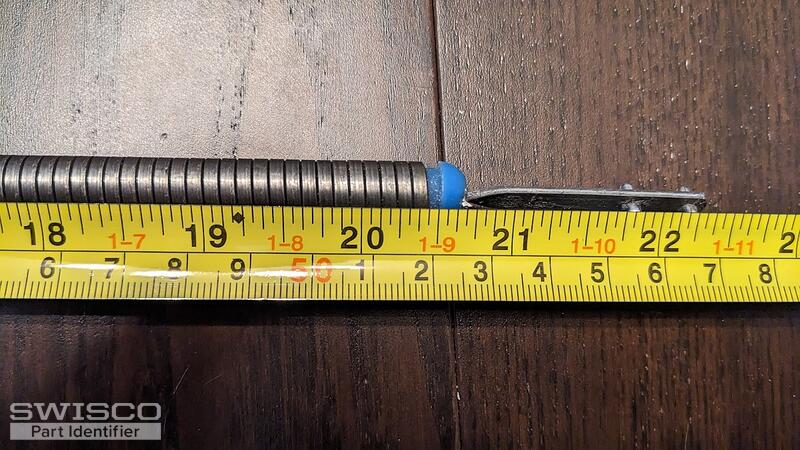

I bought the wrong length spiral balances under the assumption that the upper and lower sashes use the same model. What length is the spiral balance in the photo? I am measuring from the very end of the top.

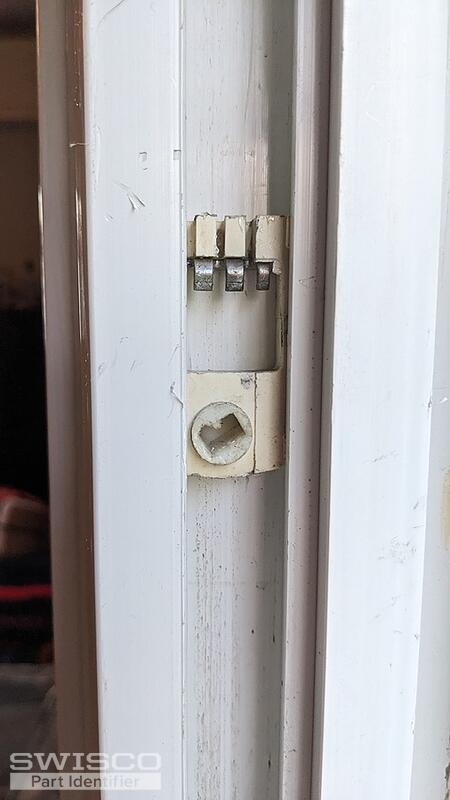

I cannot seem to find a pivot shoe with comparable dimensions anywhere. I have tried a 5/8" x 1-1/4" shoe, similar to 15-154, but it is a very loose fit. In addition to the images of the pivot shoe, I included a sketch of it with the caliper measured dimensions. Any help will be appreciated.

Paul · Accepted Answer

Hello,

Unfortunately, the company that made your balance system went out of business in the late 90s. With that being said, our 5/8" diameter S600-21 blue tip spiral balance should work as a replacement.

As for the pivot shoe, I would like to see the original installed in the window track and write-out the exact depth of the track to confirm if we could supply a possible replacement. Thank you.
