Spiral Window Balance 30" length

Home Owner from California
Mar 2, 2020 3:55 pm
I need to replaced window balances from 3 different windows.

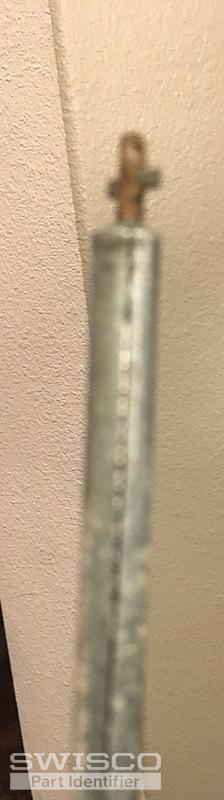

This house is a rental in a different state from where I live. I asked a handyman to take one off and take a picture.
Not so good. Is it possible with this pic to identify the part. Its 30" length.
1 user uploaded images
3 Replies
Casey from SWISCO
Mar 3, 2020 12:25 pm

I am afraid I can't get the best look at your spiral balance with this photo. I will need to see another photo showing the balance up close so that I can get a good look at the end of the balance. Also, I wasn't able to see if the end of the balance had a color tip bearing on it.

While you provide us with more photos, we also need to know the tube diameter, and indicate whether this balance is for a non-tilt or tilt window. Lastly, if there is no color tip bearing on the part, please let us know the exact weight of your sash.

Home Owner from California
Mar 14, 2020 2:38 pm
Hi Manuela,

Adding more photos.
Still they took them really blurry. But does it gives us a better idea of what I need?
It's for non-tilt Windows.
image image image
3 user uploaded images
Paul from SWISCO
Mar 16, 2020 7:41 am

Thank you for replying back with more photos. If the tube diameter of your spiral balance measures 5/8", then you can go with our S500-30 as a replacement. Since, I don't see a color tip bearing in these photos, you will need to do as Manuela previously advised in her last reply to you; weigh your sash on a scale and refer to the sash weight chart listed on the store page. I would also suggest ordering the 75-004 charging tool. This will help when installing the spiral to the sash bracket.
