Spiral plastic tube, no color tip

A quick learner from Farmington CT says:
August 25, 2022

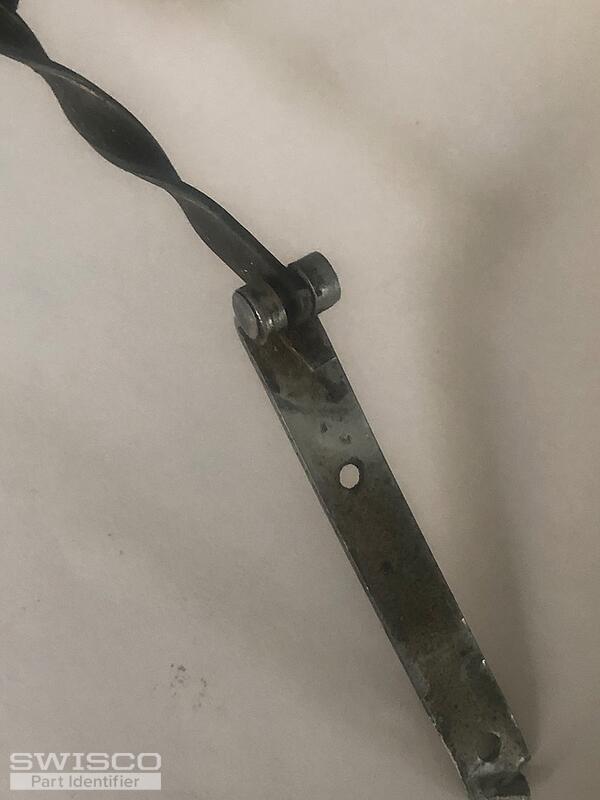

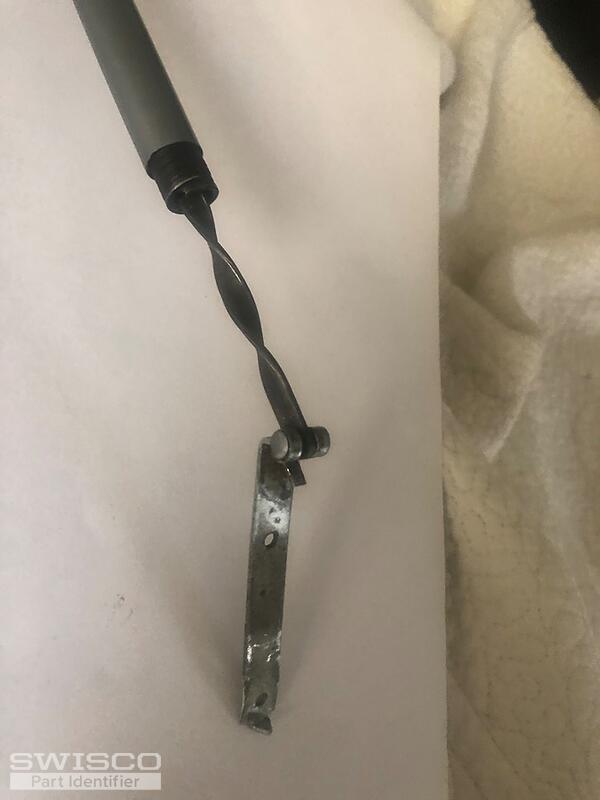

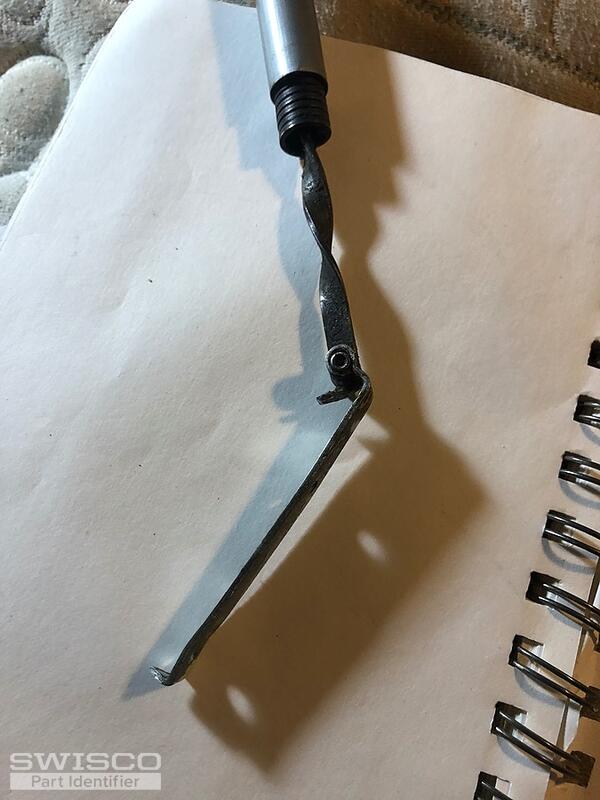

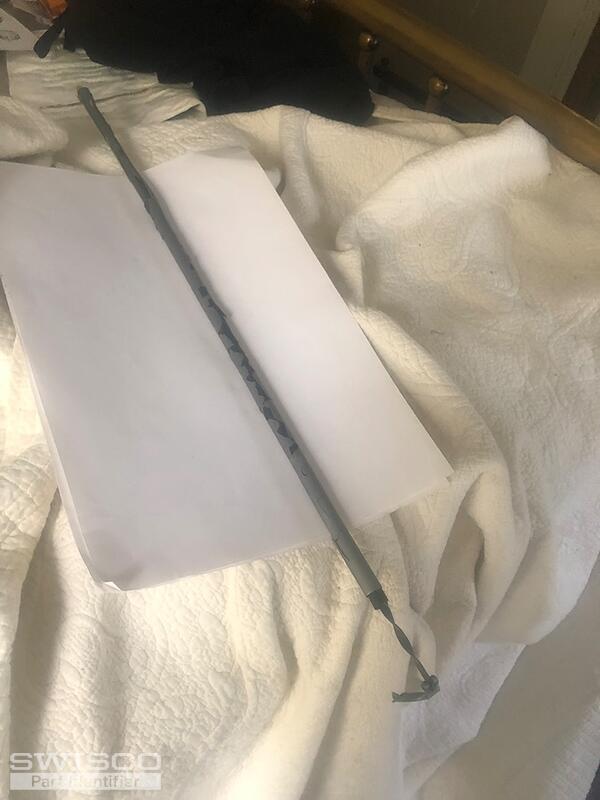

24 5/8 tube length . Riveted to bracket that mounts to bottom of window . Wood double hung
Thumbnail of the uploaded file named 87A34036-9FAE-4D61-B6DF-0B7A180D8F47.jpeg
Thumbnail of the uploaded file named 119CE7D4-F8B1-47A5-B00D-6DE4CF71EBDC.jpeg
Thumbnail of the uploaded file named 43421520-DF25-4041-BA5B-7F1A04F57210.jpeg
Thumbnail of the uploaded file named C339985D-D05E-415A-B3F8-B84A247009D2.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 26, 2022

Hello,

Your balance that is permanently attached to the mounting bracket is no longer available but see either the 5/8" diameter S500-25 spiral balances and 17-012 bracket or 3/8" diameter S400-25 and 17-031 bracket depending on your dimensions.

It looks like the colored tip at the base of your balance tube is missing, so you'll need to weigh your window sash and follow the chart under the balance product description to choose the corresponding color option. Thanks for posting!
Bracket, #32
Bracket, #32
17-012
$1.20
25" Series 500 Spiral Balance
25" Series 500 Spiral Balance
S500-25
$9.12
25" Series 400 Spiral Balance
25" Series 400 Spiral Balance
S400-25
$10.37
Bracket, #14
Bracket, #14
17-031
$1.35
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How to adjust a spiral balance on a non-tilt window
How to adjust a spiral balance on a non-tilt window
GUIDE
READ >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
