25" Series 400 Spiral Balance

Product Code: S400-25

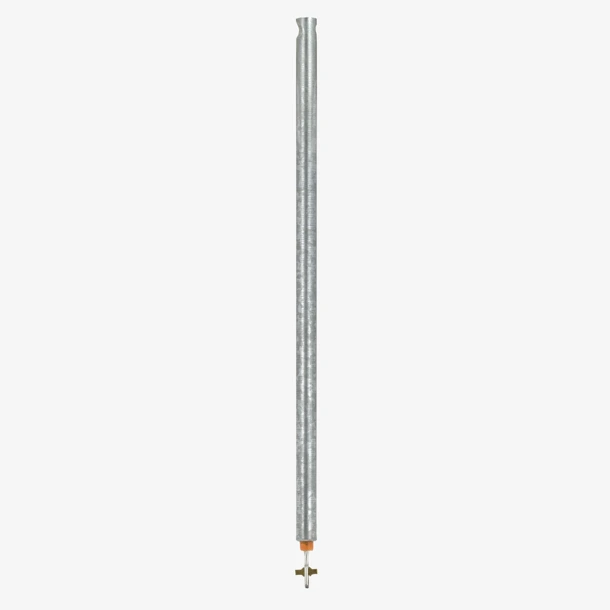

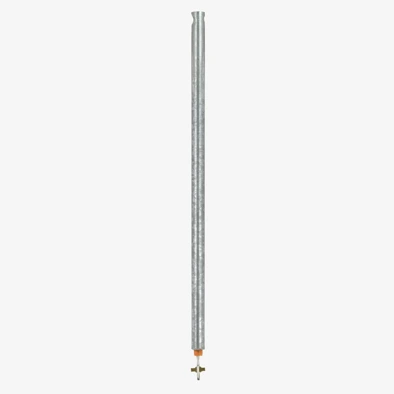

25" Series 400 Spiral Balance
$10.37/each
Quantity Price
1-11 $10.37
12-49 $9.33
50-99 $8.30
100-199 $7.78
200-399 $6.84
400+ $6.33
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 400 spiral balance for aluminum non-tilt windows. It moderates the operation of your window sash to allow the window to stay open when raised.

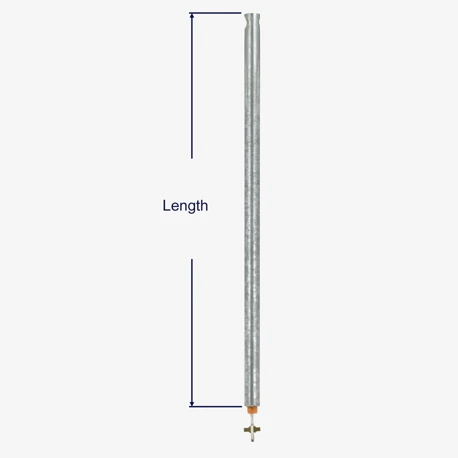

  • This balance has a 25" long metal tube. When determining the length only measure the metal tube.
  • The strength you need should be indicated as a color tip at the end of your old metal tube. If you do not see a color tip weigh your sash on a scale and refer to the chart below.

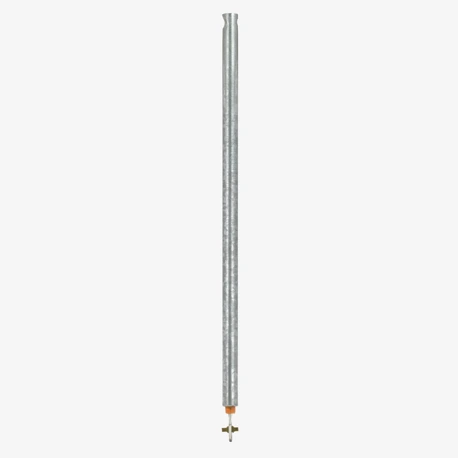

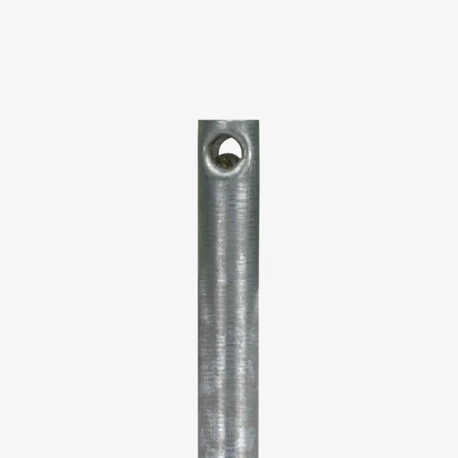

  • The metal tube measures 3/8" in diameter and houses an internal spiral rod with cross-piece.
  • Can work for either the left or right side of the window interchangeably.
  • Spiral window balances come fully lubricated and ready to be charged.

    • Color Tip Sash Weight Range
    red tip 7 to 21 lbs
    green tip 14 to 26 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
You should choose the color tip that matches the color tip of the balances you are replacing. If you do not see the tip color available in 'options' or you are unsure of which color to choose: ask our experts for help.
Guides
  • How to choose the proper spiral balance tip color
  • How to adjust a spiral balance on a non-tilt window
    • Related Videos
    Related Item(s)
    17-010
    $0.94
    Bracket, #13
    17-025
    $0.95
    Bracket, #25
    17-026
    $0.92
    Bracket, #S 32
    17-031
    $1.35
    Bracket, #14
    17-043
    $1.05
    Bracket, #43
    17-062
    $1.05
    Metal Bracket, #62
    18-034
    $2.87
    Top Sash Guide
    19-014
    $0.57
    Spiral Window Balance Cap, 3/8"
    75-005
    $12.10
    Spiral Balance Charging Tool for Non-tilt Windows
    Customer Questions & Answers
    Discussion Posts Last Post Date

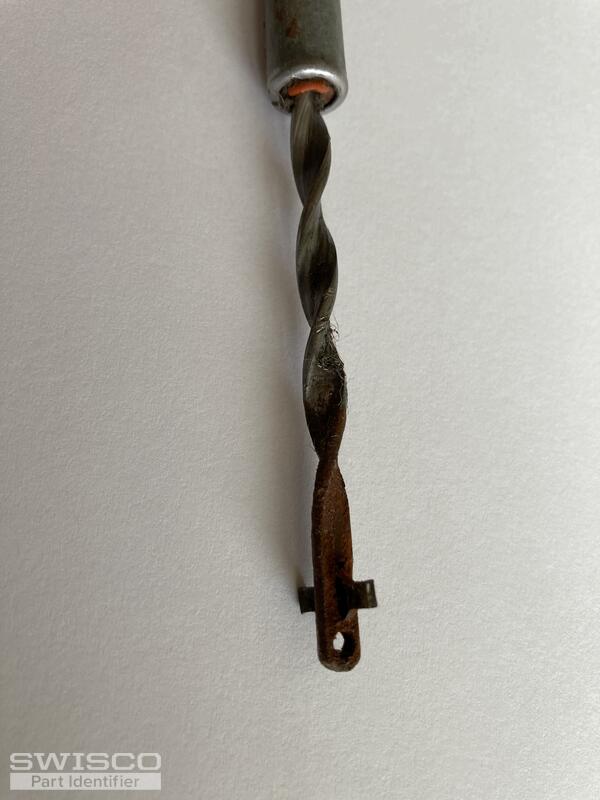

    S400 spiral balance and shoe type
         		This discussion includes image(s). 4 Apr 18, 2023

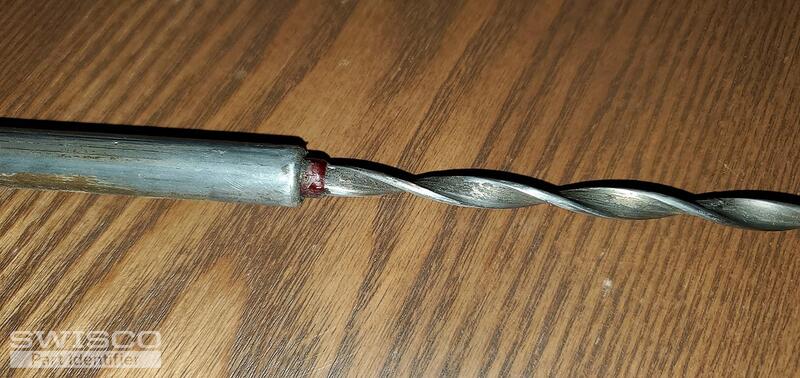

    Twist around spiral cylinder
         		This discussion includes image(s). 2 Nov 30, 2022

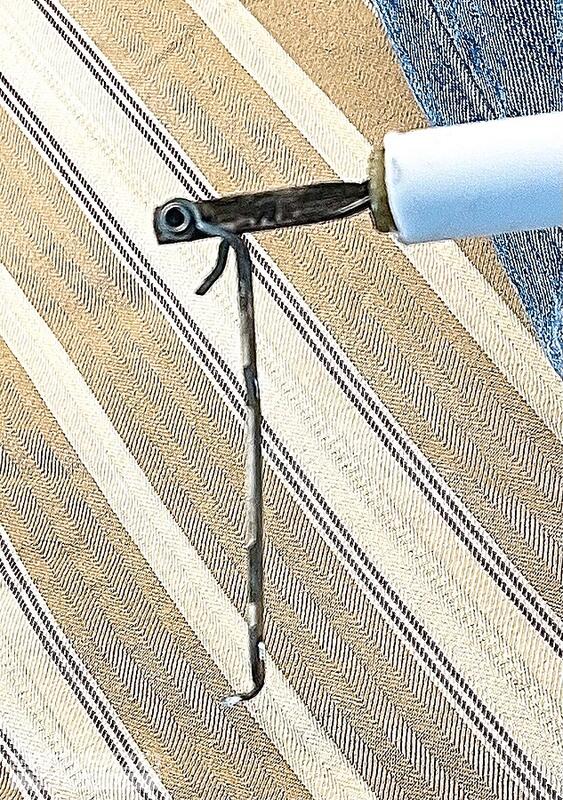

    Spiral plastic tube, no color tip
         		This discussion includes image(s). 2 Aug 25, 2022

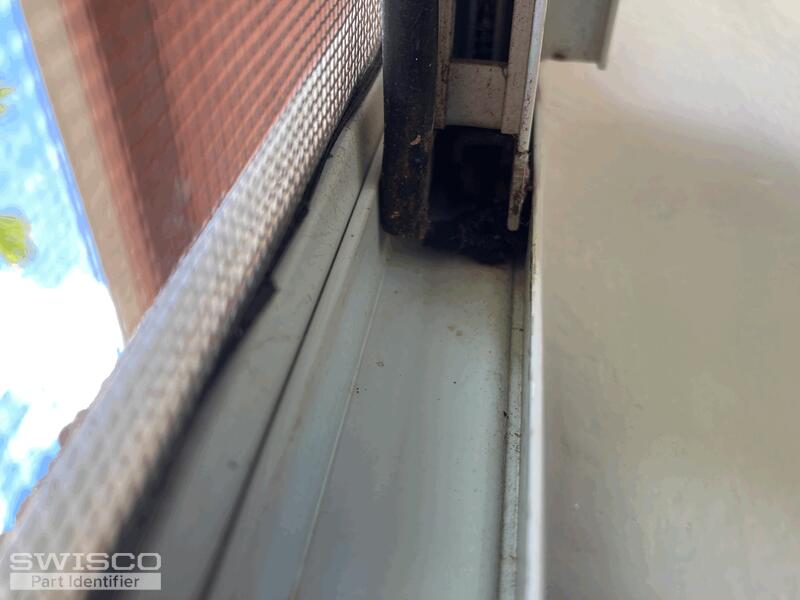

    Window Balance Replacement
         		This discussion includes image(s). 4 Apr 29, 2021
    25 Inch Tubular 5/8 inch Aluminum maybe GA Aluminum Window
         		This discussion includes image(s). 4 Mar 17, 2021
    Identify part
         		This discussion includes image(s). 2 Aug 8, 2020
    sprial balance
         		This discussion includes image(s). 2 Jul 15, 2019

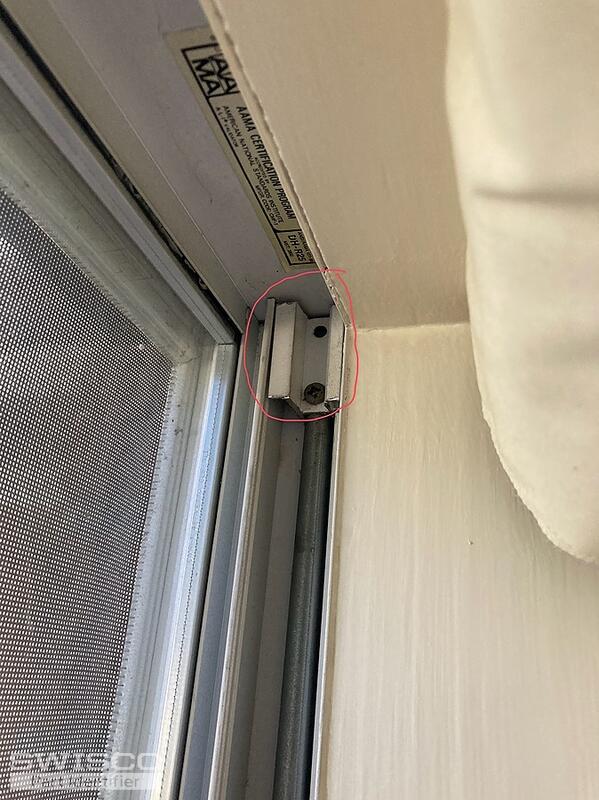

    window balance and bracket identification for replacement
