D, DL, and C Spring

A quick learner from California says:
May 19, 2020

Stamped D, DL, and C.

Ill weigh the windows. Need spring s

Thanks

Steve

Thumbnail of the uploaded file named 386DE698-E2D8-403B-BA29-669FC8222627.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 21, 2020

Hi, Steve. We have a bunch of coil springs like this but I don't know what to recommend based on this picture alone. Can you show me a picture of the pivot shoe to which it attaches? Can you also tell me how thick the spring is?
A quick learner from California says:
May 21, 2020

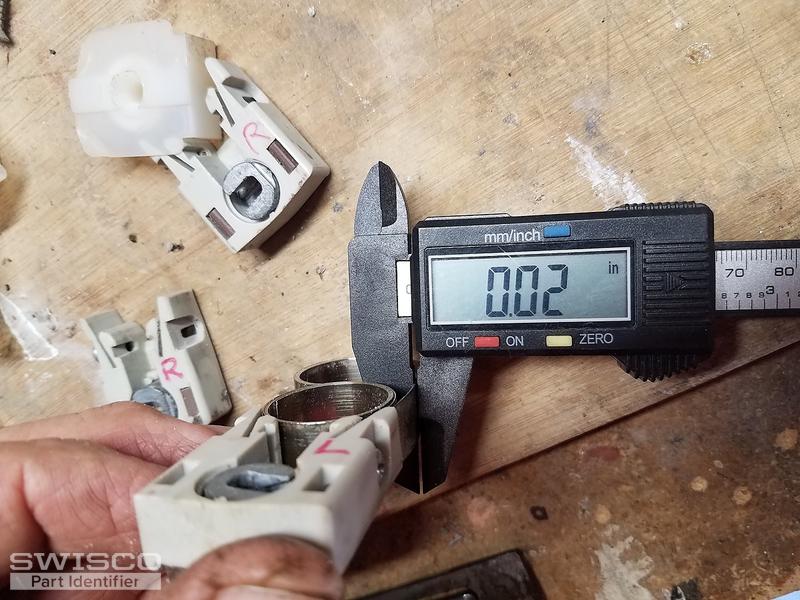

spring width is 1/2 inch. i have both double and single spring needs. ill weigh the windows for proper tension ratings.
Thumbnail of the uploaded file named 20200521_162034.jpg
Thumbnail of the uploaded file named 20200521_162140.jpg
Thumbnail of the uploaded file named 20200521_162140.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 22, 2020

Thanks, that's perfect. Looks like you have a 15-177 pivot shoe, which means the spring itself is our Series 152.
A quick learner from California says:
May 22, 2020
ok, ill pick some out. hopefully there is a 'long' version for double spring needs
