Spring Counter Balance and Removal Clip

Home Owner from Tucson AZ

Feb 10, 2021 6:57 pm

I would like to order spring counter balances (2) for a 35"w x 59.5"h single hung Atrium brand window. In addition, I need a counter balance removal clip for that same window (see attached photo of broken clip). Thank you.

1 user uploaded image

4 Replies

Bob from SWISCO

Feb 15, 2021 9:46 am

For the take-out clip, see if our 16-002 matches up. For the balances, I am afraid we can't narrow down what you need without seeing the originals out of the window. See the video below for more details.

Home Owner from Tucson AZ

Feb 15, 2021 4:41 pm

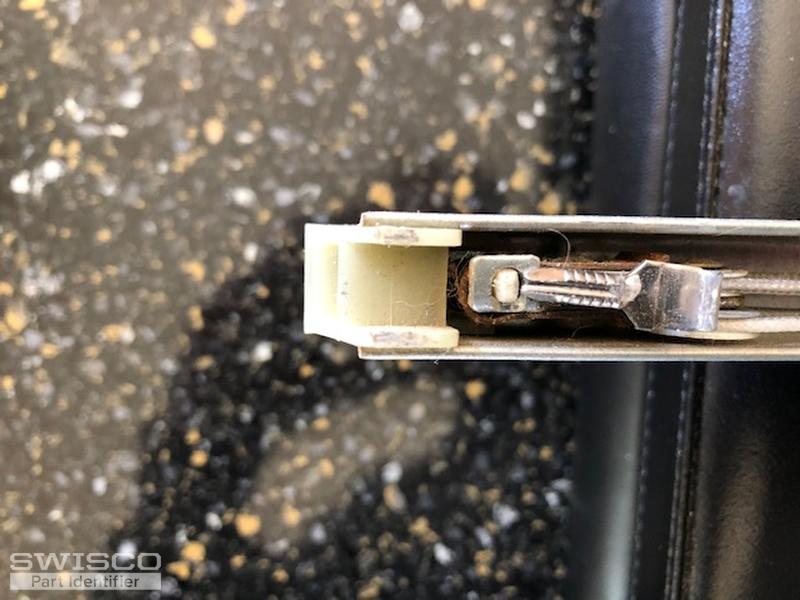

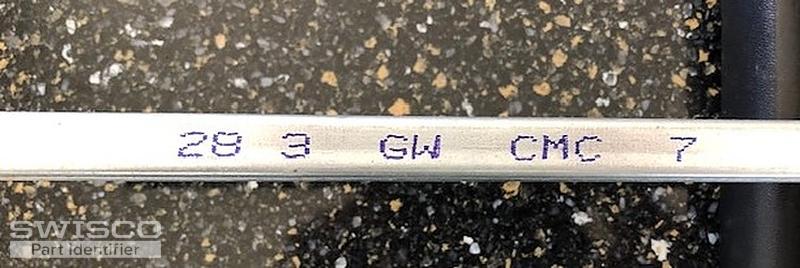

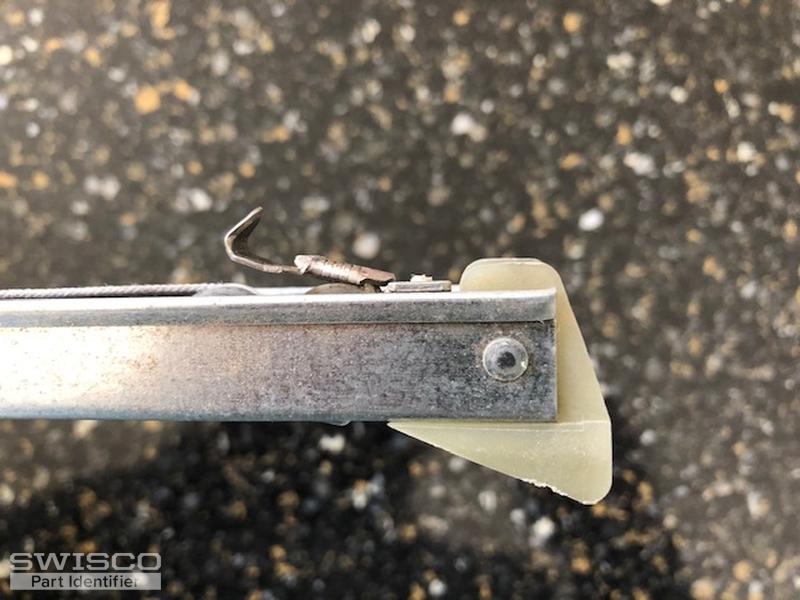

Thanks for the information. I've included photos of the counter balance. Channel portion length = 29".

5 user uploaded images

Bob from SWISCO

Feb 16, 2021 8:06 am

Perfect, thanks. This looks like an S395-29 to me. You'd want to use a stamp option of 2830. Let me know if you have further questions.
