Spring broke at pivot/lock

Quick Learner from Minneapolis, mn

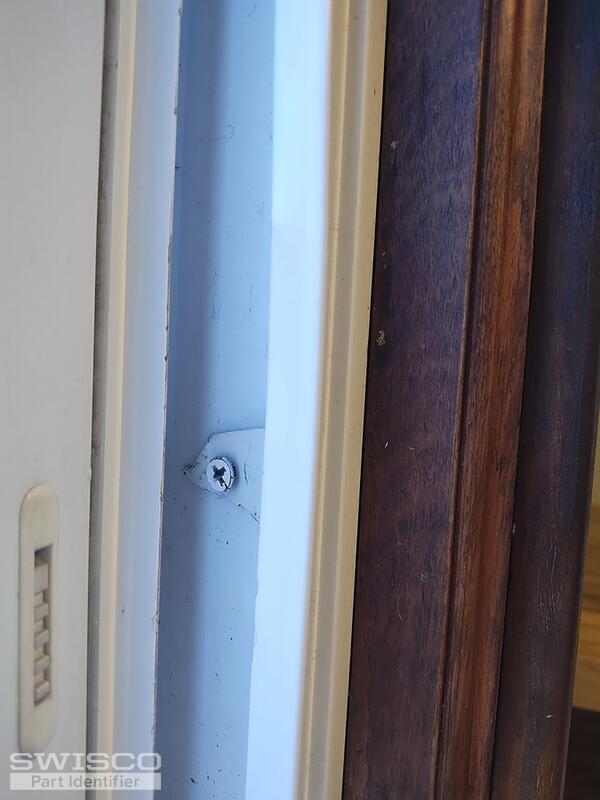

Need a replacement for the spring and/or lock.  The metal triangle holds the top of the spring.

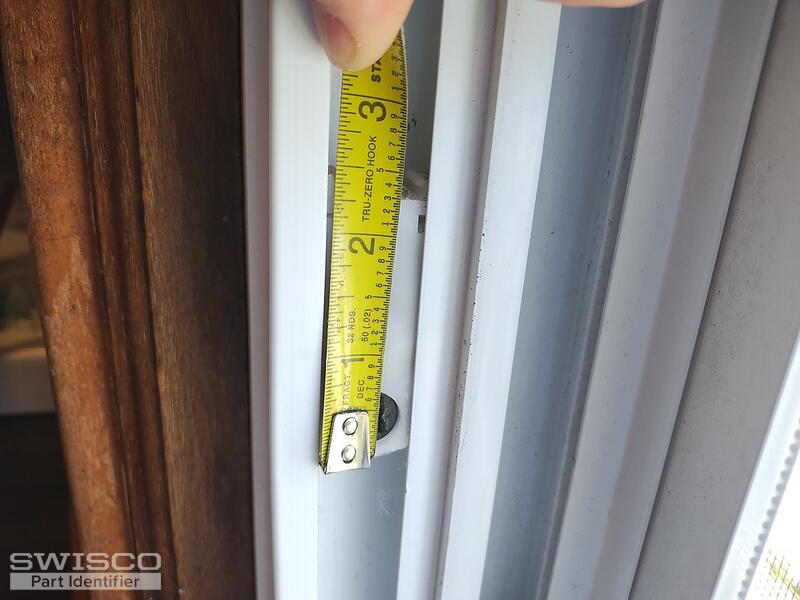

Channel seems to be 1 or 1-1/4" x 1/2"

Spring is 1/2" wide.

When spring broke it blew out the pivot stop at the top.  That should be replaced too.

I'm ok with replacing both sides when I do the work.

5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. The pivot shoe looks like the 15-087. This works with Series 180 Coil Balance springs sold separately. The coil bracket is the 16-024. Finally, for the tilt latches, see if the 26-408 pair matches what you have. Let me know if you have any questions.
