Spring coil

Start a new Discussion

Quick Learner from North Wilkesboro, North Carolina

Sep 12, 2020 4:22 pm

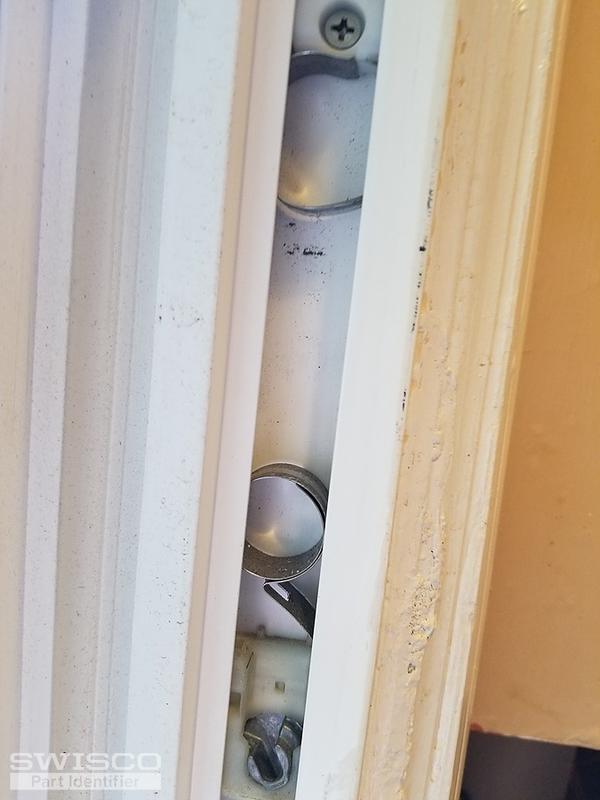

Springs are broken on Moss A-30141937-2,3500DH

2 user uploaded images

8 Replies

Tom from SWISCO

Sep 16, 2020 11:31 am

We should be able to supply a new coil for you, but I don't know what you have. Can you tell me how thick the spring is? Can you also show me a clear photo of the pivot shoe without obstruction? That will tell me for sure what part you need to repair your window.

Quick Learner from North Wilkesboro, North Carolina

Sep 16, 2020 5:57 pm

The spring is 1/2" wide

2 user uploaded images

Tom from SWISCO

Sep 17, 2020 9:51 am

Thanks. Your pivot shoe looks like our 15-199, which is designed to be compatible with a couple different springs; one of them is the 1/2" thick Series 160. This may be just what you need.

Quick Learner from North Wilkesboro, North Carolina

Sep 17, 2020 10:17 am

How do I order them, do I need the top springs too?

Tom from SWISCO

Sep 17, 2020 11:29 am

All orders can be placed directly on our site at your convenience. If your top springs are damaged, then you should replace them.

Quick Learner from North Wilkesboro, North Carolina

Sep 17, 2020 12:32 pm

What's the part # for the top spring coil?

Tom from SWISCO

Sep 17, 2020 1:02 pm

I would assume it's the Series 160, since it's in the same balance system. Do you have reason to believe it's different?
