Spring coil system

Quick Learner from 19086

Mar 16, 2020 8:40 am

Can you kindly tell me what spring system I need to purchase for my Certainteed window model #4880/367R Edgemont Double Hung. CAR#484-104D (The D at the end of these numbers could also be an O, it's a little hard to read)

Thank you,

Michelle

12 Replies

Casey from SWISCO

Mar 17, 2020 8:46 am

Hello, Michelle. I am afraid the numbers on the window don't help identify the type of coil spring system you have. We will need to see photos showing us the part(s) completely removed from the window. From there, we can start to determine some replacements for you.

Quick Learner from 19086

Mar 28, 2020 3:29 pm

Hi Manuela,

I've attached a few pictures and appreciate your help in determining which parts I need.

Thank you!

3 user uploaded images

Tom from SWISCO

Mar 30, 2020 9:22 am

Hi there! I think I can help with this. Your balance system is an older style that is no longer made. It's a bit of a hybrid between two different pivot shoes commonly use in MI windows: the 15-199 and the 15-180. We don't have an exact match, or even a confirmed substitute, but I do have an idea.

Between the two shoes I mentioned, the 15-199 is the best candidate. It's 17/32" thick and 1-1/4" wide, which I believe is the same as yours. You should also be able to use our 1/2" thick Series 160 coil spring. Please review these parts and let me know what you think.

Quick Learner from 19086

Apr 4, 2020 2:54 pm

Hi Tom,
Those parts measure the same as what I have. I'd like to order them.

Tom from SWISCO

Apr 6, 2020 7:11 am

That's great news. In that case, you can place an order directly from our site any time you wish.

Tom from SWISCO

Apr 8, 2020 7:11 am

There should be a stamp printed on your old springs that indicate their weight rating. If not, you'll have to weigh your sash and divide that by the number of springs that support it. For example, if your sash is 9 pounds and you have two springs (one on each side), you would choose the 4.5 option. If your sash is 22 pounds and you have four springs (two on each side) you would choose the 5.5 option. Hopefully those examples make sense.

Quick Learner from 19086

Apr 8, 2020 7:43 am

In ordering, I need to pick which balance ranging from 3.5lb-10lb. Are you able to recommend which one I need? With gratitude.

Quick Learner from 19086

Apr 8, 2020 4:06 pm

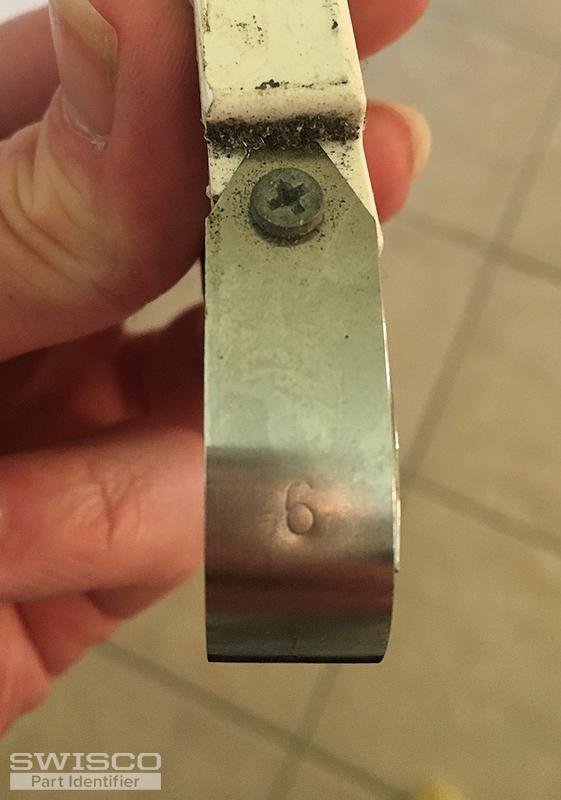

I've attached a picture and am wondering if this is the stamp I need? Could be a 6 or 9?

Thank you again Tom

1 user uploaded image

Tom from SWISCO

Apr 9, 2020 7:21 am

I'm thinking that's a 9, since the balance in your photo is being held upside-down. That said, just to be 110% sure, you should weigh your sash on a scale. That way there's no reason to guess.

Quick Learner from 19086

Apr 19, 2020 4:23 pm

Wanted to thank Tom and Manuela for all of your help here. I'm happy to say the replacement parts installed easily and my window is working like a charm!

Tom from SWISCO

Apr 20, 2020 7:16 am

That's great news! Thank you so much for the update and please let us know if we can be of any help in the future.
