Spring coil window parts replacement

Home Owner from Sarasota, FL

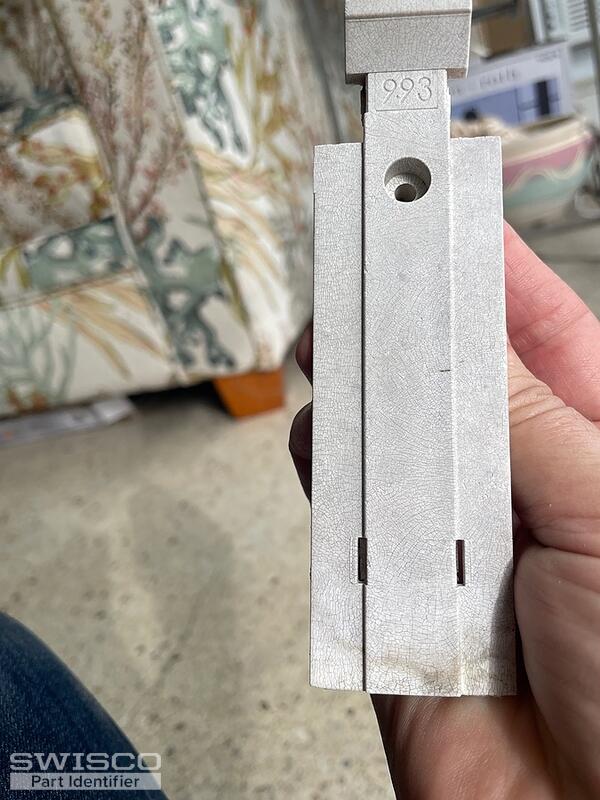

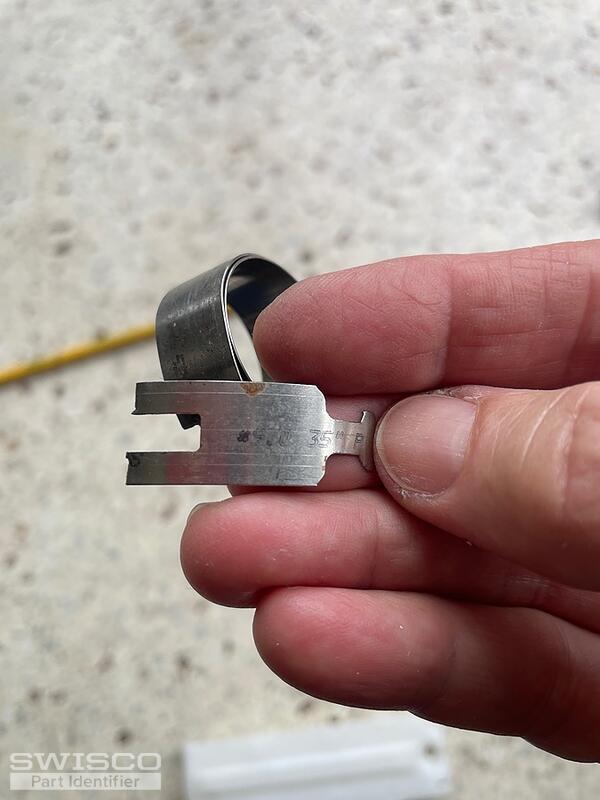

Looking to replace either just the broken coil or all the parts. the broken coil has these numbers:5232208 to the left of where it broke and then as you can see in the photo it appears to read #9.0 35" P. I think I should replace the shoe, which I have in the "cart" already.
5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

Thank you for contacting us. The 15-111 looks like a good match for your pivot shoe. The S160 are the compatible coil springs. Since the spring is stamped with 9.0, see the S160-09 9-pound spring. For a new triple support cover, see the 15-150T. Take a look at the specifications for these parts and see what you think.

Please let us know if you have any questions!
