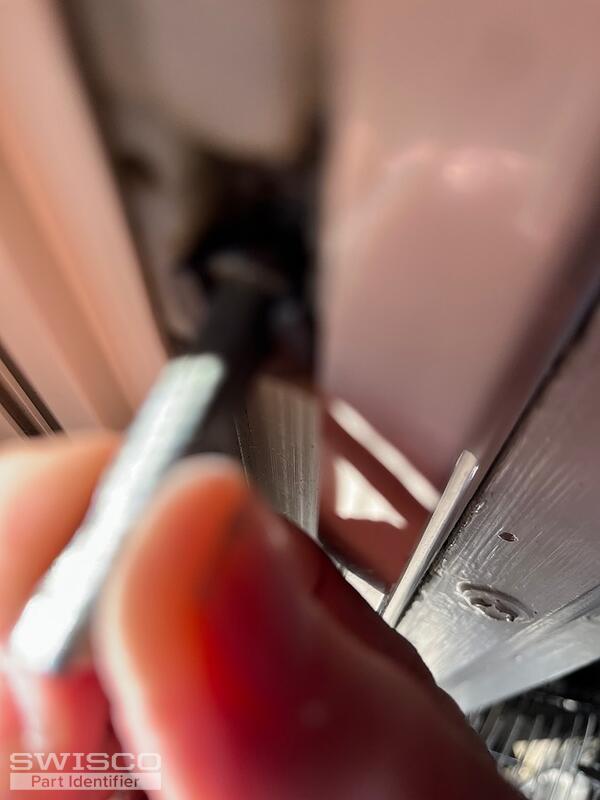

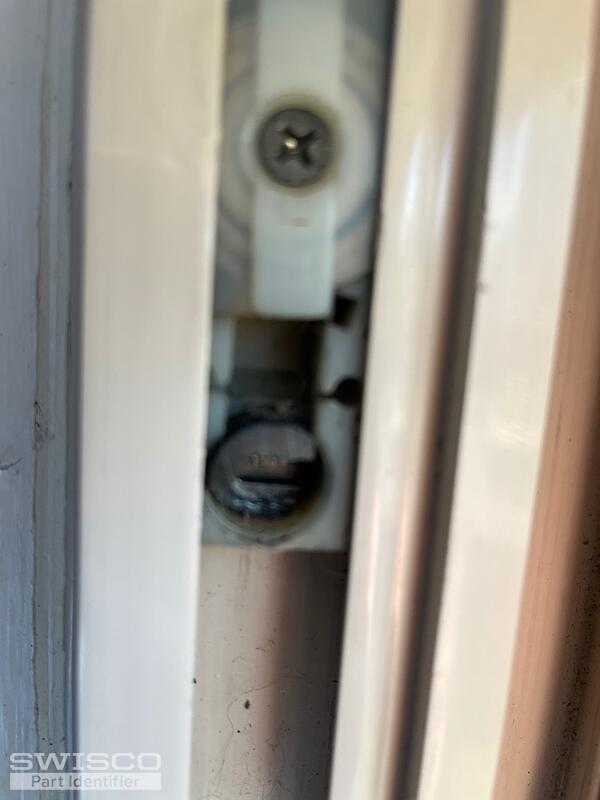

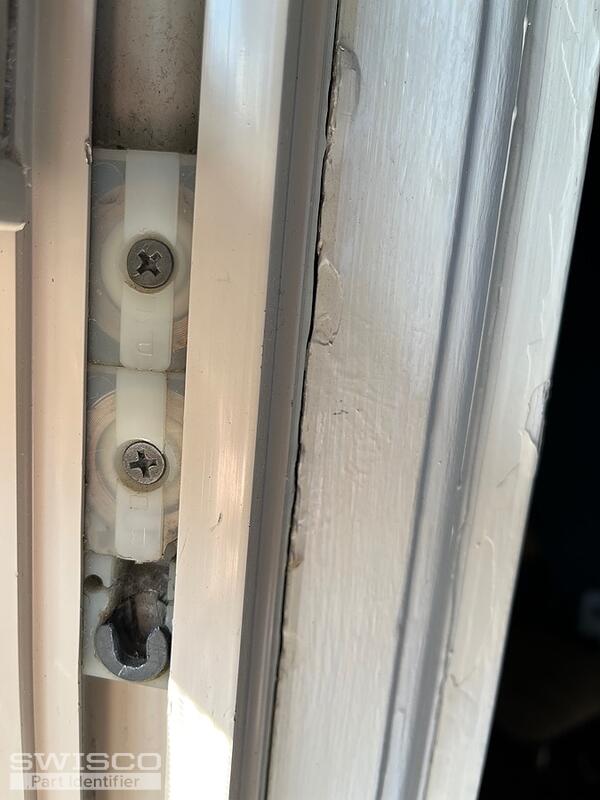

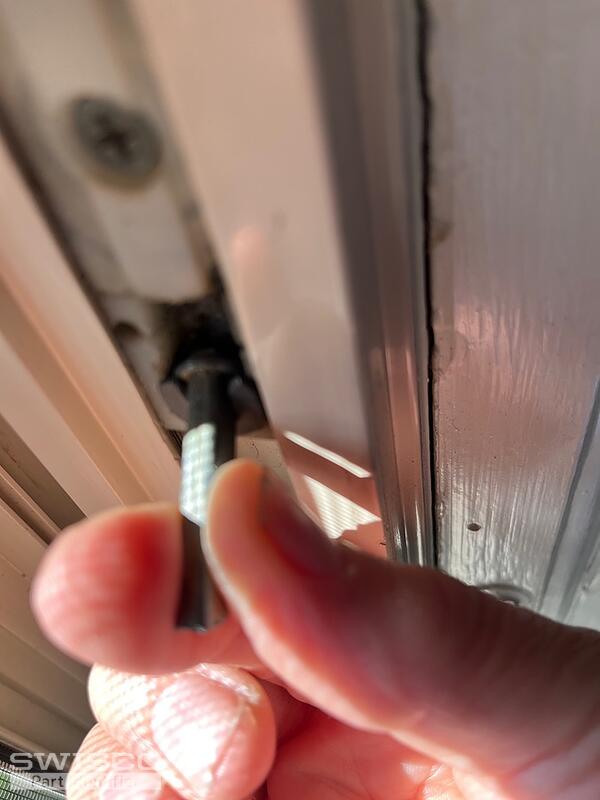

Spring that holds the pivot.
Hello! If I understand your post correctly, it sounds like you need a new pivot shoe and pivot bar. The springs themselves can actually be reused as long as they're still in good condition, so you should be fine there.
Starting with the pivot shoe, you have a style that is unfortunately discontinued. We had stock for a long time up until just about two weeks ago, when it ran out. You really only just missed it.
The good news is that we sell a very promising alternative in our 15-177. It's the same exact size and is designed to work with the same exact hardware, the only difference is that the springs screw onto it slightly differently: instead of screwing in on the sides, they fit into those slots you see and then screw in. While it is not necessarily a guarantee, I still feel very confident that it can work for you.
As for the pivot bar, that could be a few different options. It's hard to tell from these photos. think the most likely one is our 26-226, but you should review our dimensions to ensure that they match up. I'm chiefly concerned about the hole placement. If that differs, let me know and I can try to find something better!
