Stanley bi-fold, mirrored closet doors 30" x 78"

Question

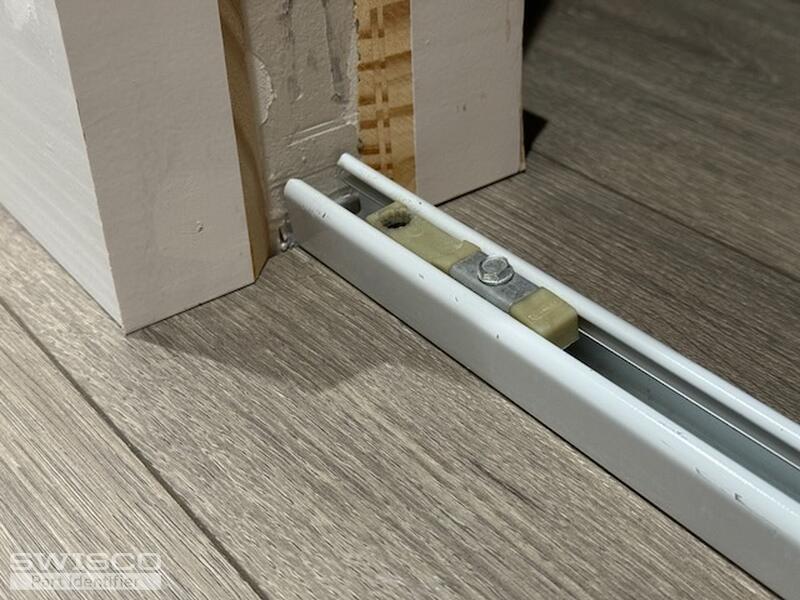

I recently replaced the carpeted floors with engineered hardwood floors in the master bedroom. The existing mirrored closet doors were removed prior to the work being done. From research I've done, I've learned that mirrored doors are too heavy to support without a bottom track. Therefore, I'd like to replace my current track with a low-profile track (if available) before reinstalling the closet doors. This is mainly to reduce the tripping hazard.

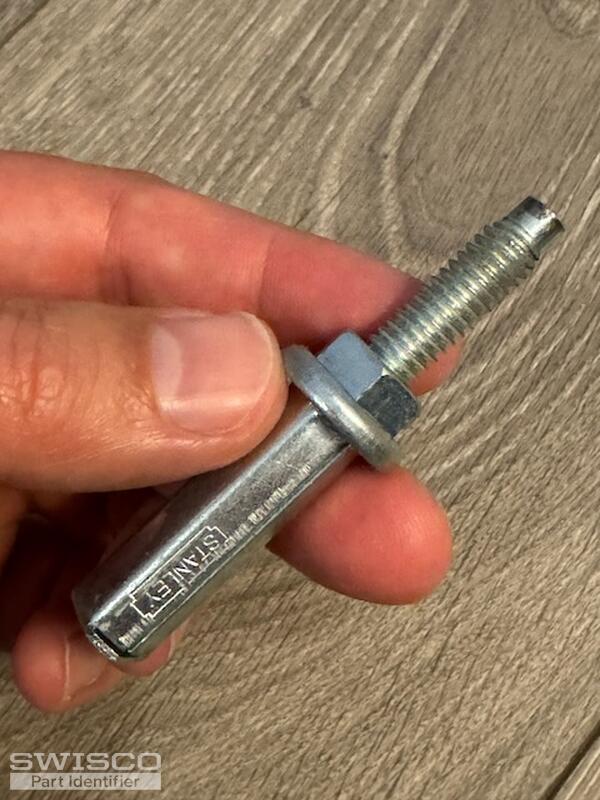

The closet doors appear to have been manufactured by Stanley from the markings on the pivots. At the very least, Stanley seems to have made the hardware. The hexagon portion of the door pivot measures 3/8" in diameter and the overall pivot is 2-3/4" long. Several of the roll guides also broke off during removal of the track and doors. I'd like to replace all of the hardware and tracks if Swisco sells compatible pieces.

Paul · Accepted Answer

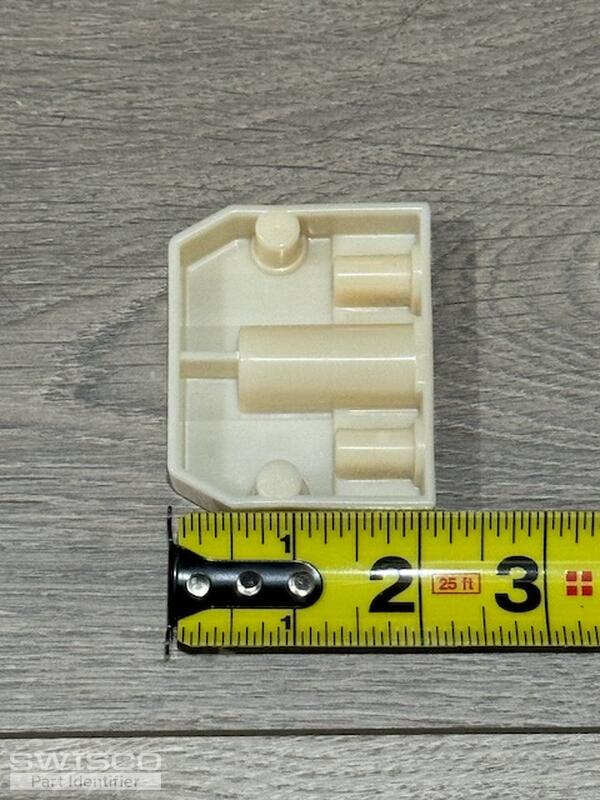

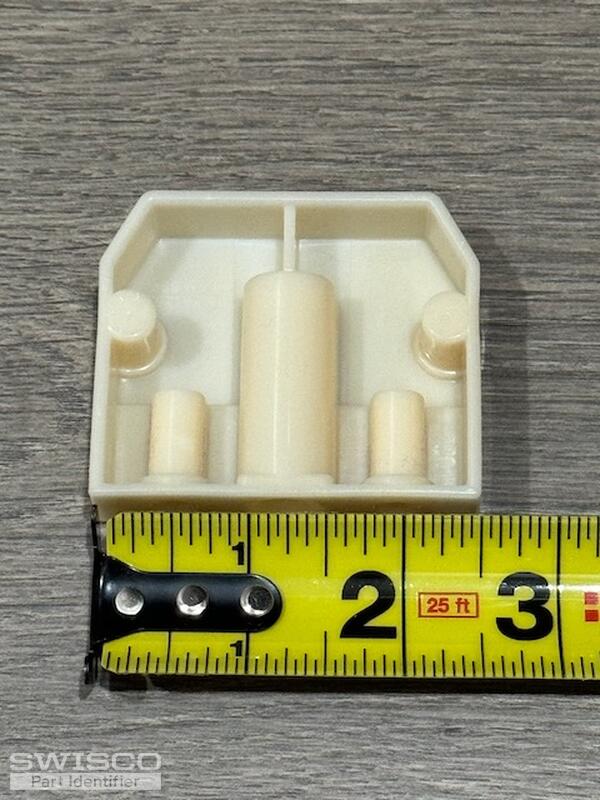

Thanks for reaching out to us! Your Stanley bi-fold corner can be replaced with 23-407 Corner Block. To confirm that this is the correct fit for your door, carefully look over the dimensions below.

Dimensions for 23-407

For your adjusting pin, you can use the 23-113 Bi-fold Bottom Door Pivot and for the spring loaded pin, the 23-112 Spring Loaded Top Pivot. If you need any nylon roller guides, you can use the 21-174 Roll Guide.

The best replacement recommendation we have for a low profile track would be the 21-452 36" Low Profile Track Assembly, but you will need to cut it down to 30" with a hack saw.

Also, regarding the high profile track you are replacing, I would suggest keeping it for a spare; the manufacturer discontinued it.

Dimensions of the low profile track assembly.
