Sun air window channel Ballance

Handy Person from Santa Fe Springs Ca.
Part # 2720B
9/16 width
5/8 depth
28" in length



The existing part was stamped with the number 2720B. I can't seem to find it, Hopefully you can help me find this part. Thank you for your help

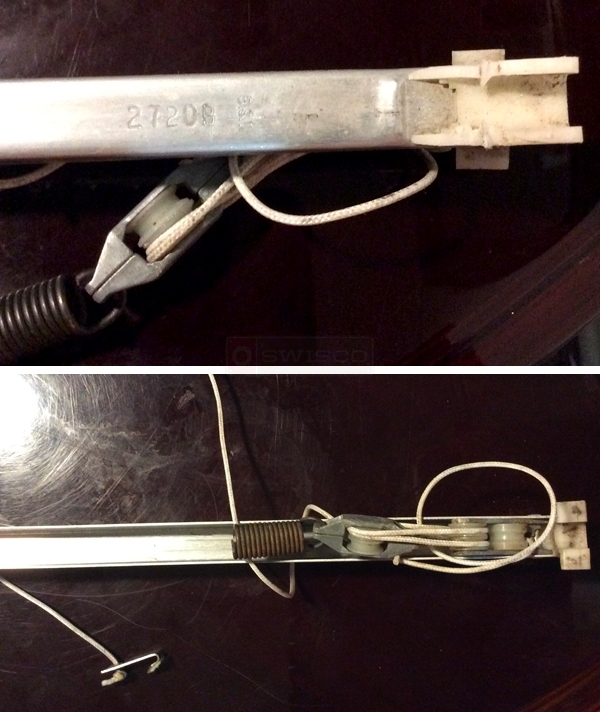

User submitted photos of a window balance.
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert
This balance has the same attachments as either the S380-28 or S385-28, I believe. Measure the metal bar to be sure it is 28" long, and measure the shoe as shown below to tell whether you need Series 380 or Series 385 . Your old balance uses the equivalent of SWISCO's 2720 stamp option, but if you want to make sure the original weight option was right for you, weigh the sash.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
