Handy Person from Passavant retirement Community

Aug 21, 2024 9:33 am

I am trying to find a replacement T BAR from the picture shown above, it is 2.5" long

1 user uploaded image

4 Replies

Lauren from SWISCO

Aug 23, 2024 3:39 pm

Hello, thank you for posting,

Unfortunately we do not carry this exact pivot bar. To determine if we can provide an alternative, can we see pictures of the pivot shoe that the bar engages with?

Can you also provide the distance from the end of the T to the center of the first hole and from the T to the center of the second installation hole? Thank you!

Handy Person from Passavant retirement Community

Aug 26, 2024 1:10 pm

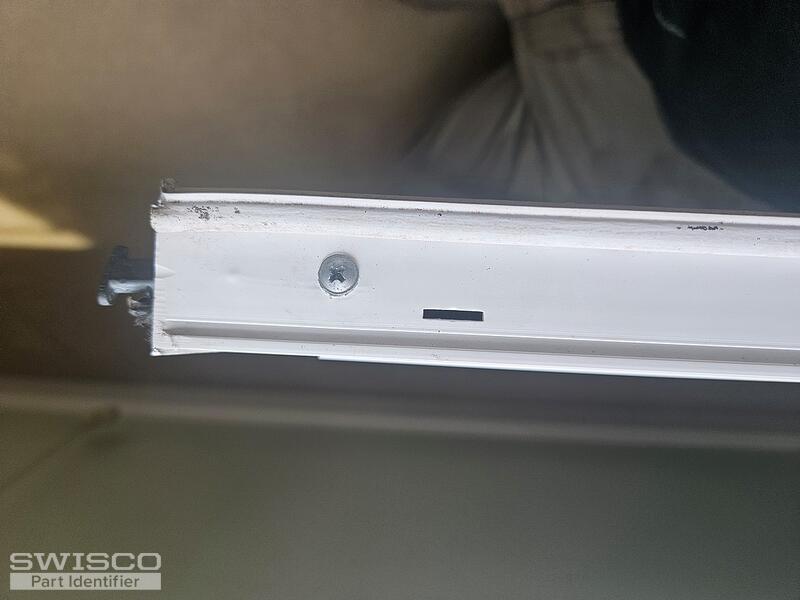

I have provided a picture of the pivot shoe, the pivot bar with a tape measure and the measurements along with the top of the bottom of the window where the screws hold the pivot bar, the first hole for the pivot bar is 1 3/8" and the second is 2 1/4" Thank you!

3 user uploaded images

Lauren from SWISCO

Aug 27, 2024 12:46 pm

Thank you!

Your pivot shoe resembles the 15-215 style. I recommend reviewing the 26-405 pivot bar that is compatible. The first hole is the same 1-3/8" distance. Only one hole needs to match up for installation. Please review and let me know if you have any questions!

Alternate image for 26-405
