Product Code: 15-215

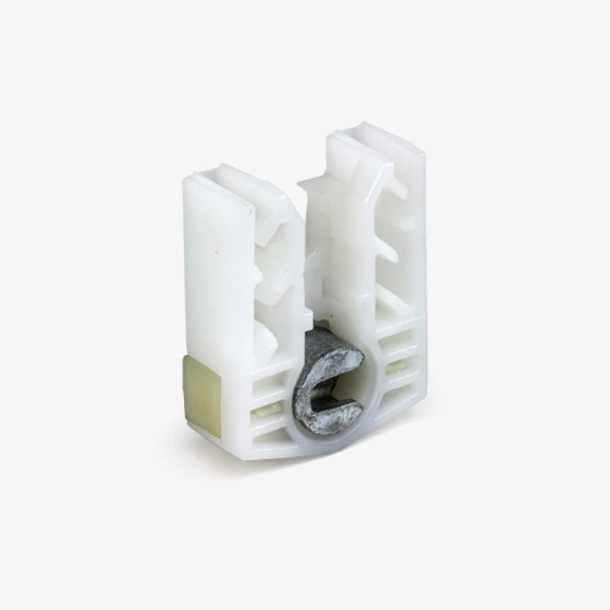

Quick-Tilt Pivot Shoe Sash Carrier

Name: Quick-Tilt Pivot Shoe Sash Carrier
SKU: 15-215
Price: 3.38 USD
Availability: InStock

$3.38

Quick-Tilt Pivot Shoe Sash Carrier Image

Quantity	Price
1-24	$3.38/ea
25-49	$3.14/ea
50-99	$2.57/ea
100-199	$2.26/ea
200+	$2.10/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

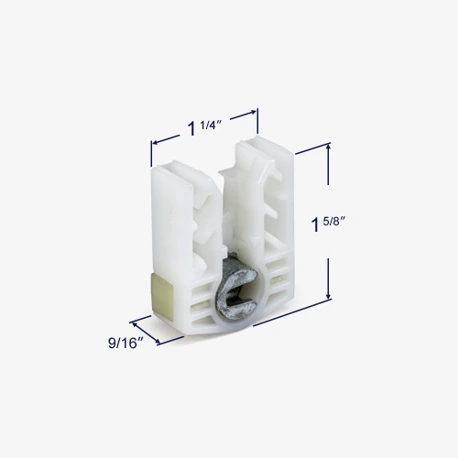

This is a replacement pivot lock shoe with rear break. Used in the Series 140 Quick-Tilt coil balance assembly. Measures 1-1/4" wide x 9/16" (actual .540) deep.

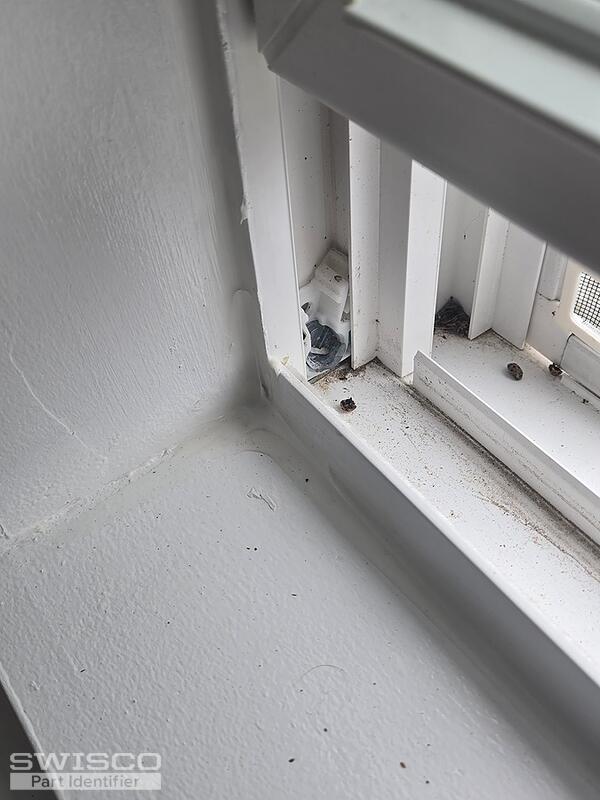

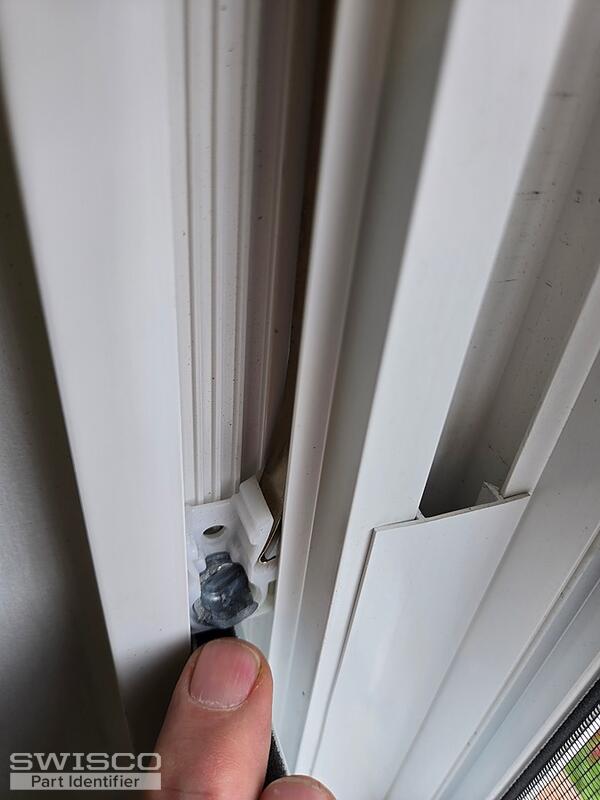

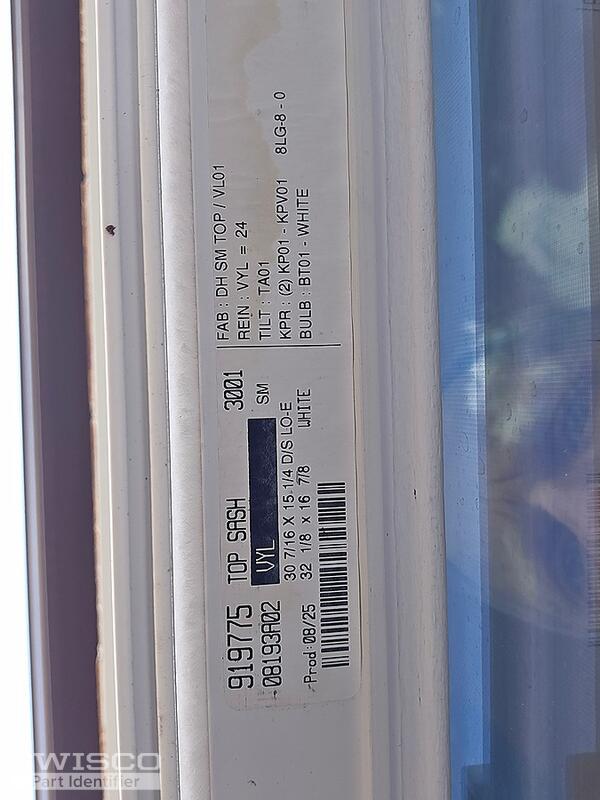

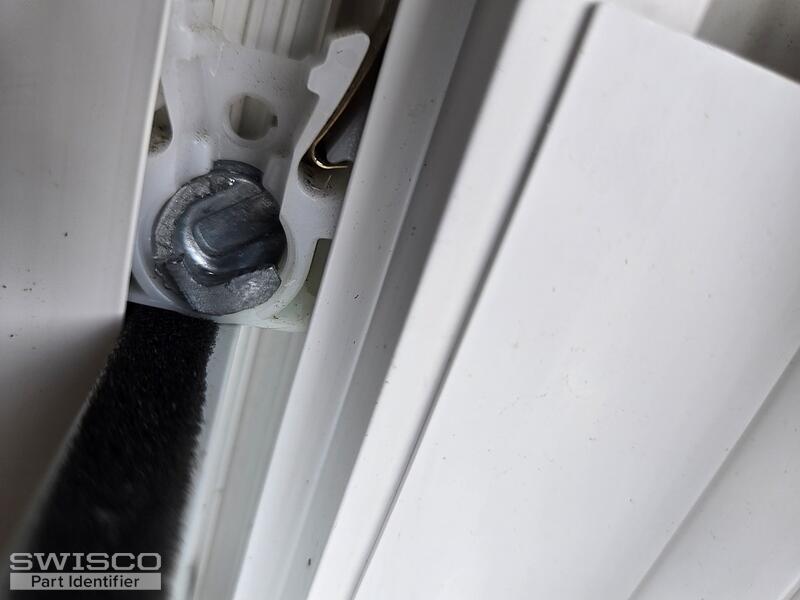

Broken pivot lock help

Bottom pivot lock broke. Haven't removed from track yet as there are no cut-outs. The only markings I can see are on the top lock/spring is "6R". Pictures attached are top/bottom of assembly and picture of broken lock pivot. Any help for replacement and parts would be helpful. Thanks in advance. ... (cont.)

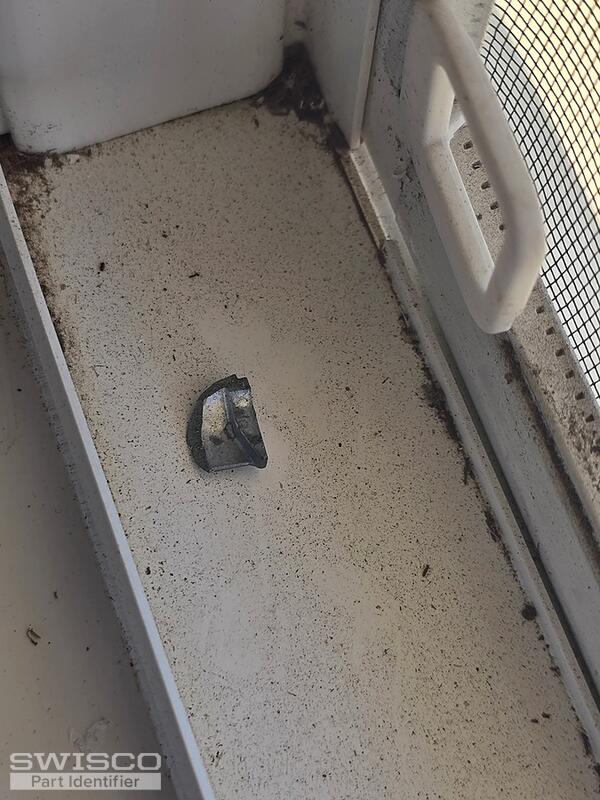

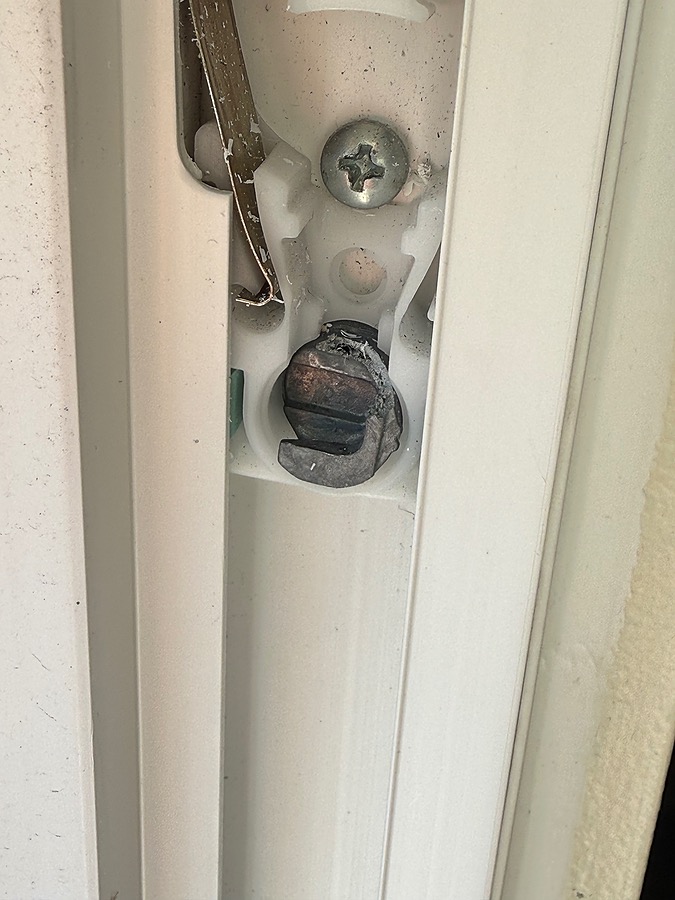

Tilt in window

Was tilting the window in and this peice broke. So I had to push in diwn to thee bottom

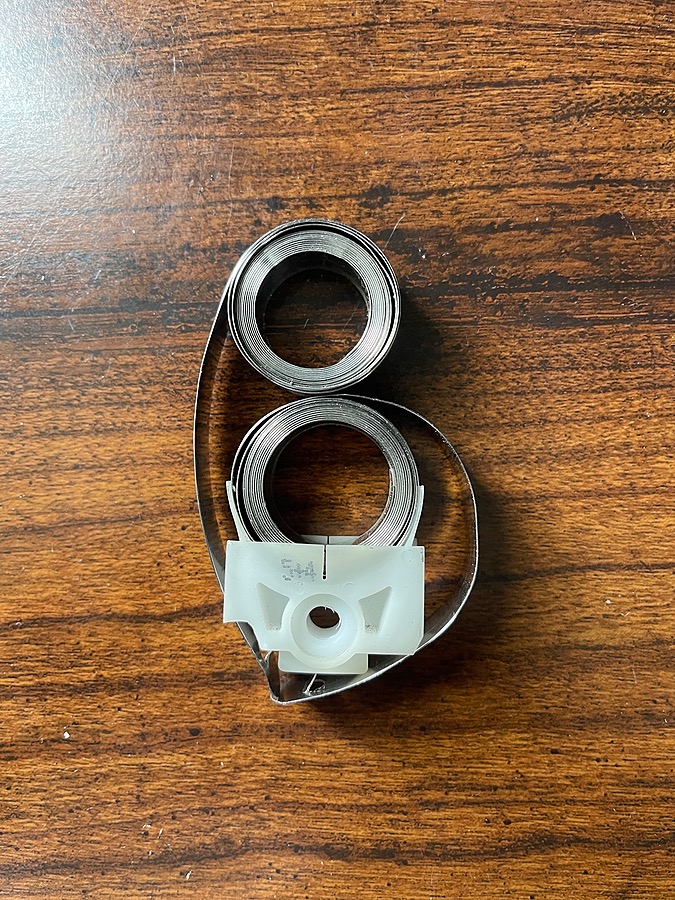

Balance spring and shoe

I need the spring and spring housing and shoe

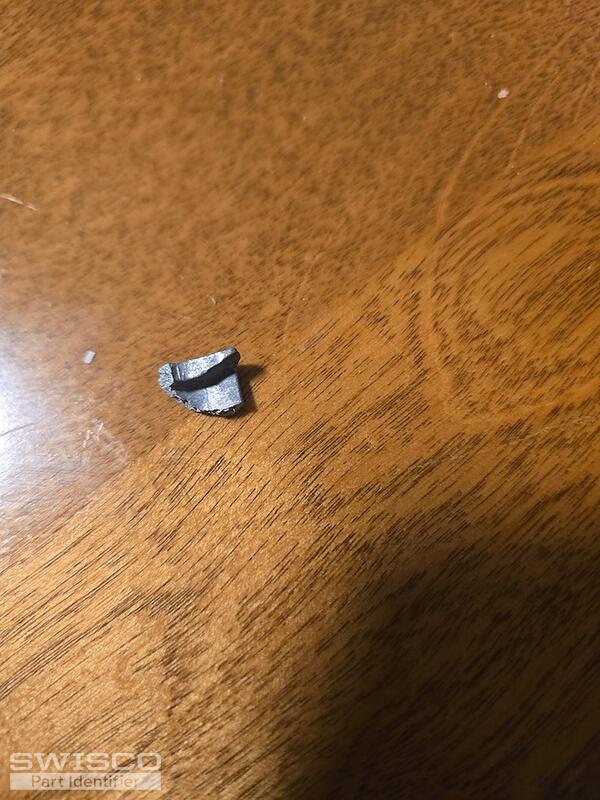

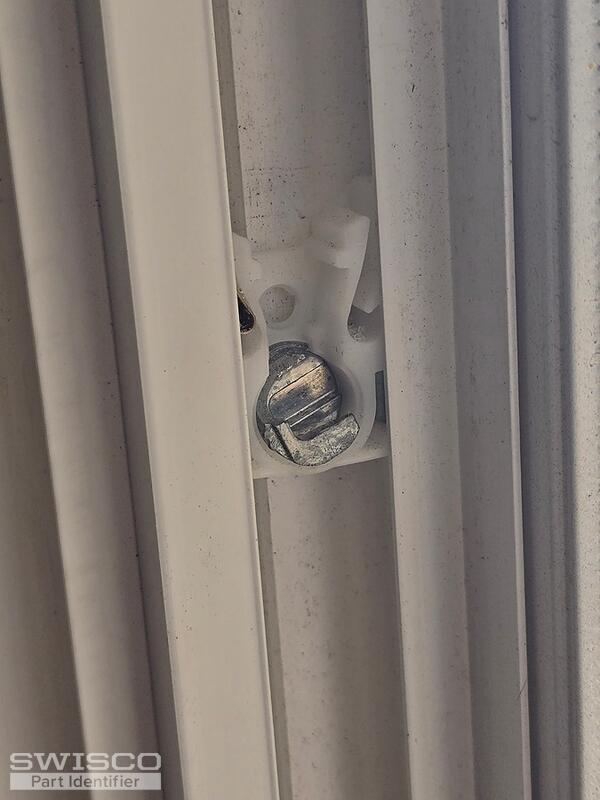

Broken Pivot block

No existing part numbers visible.

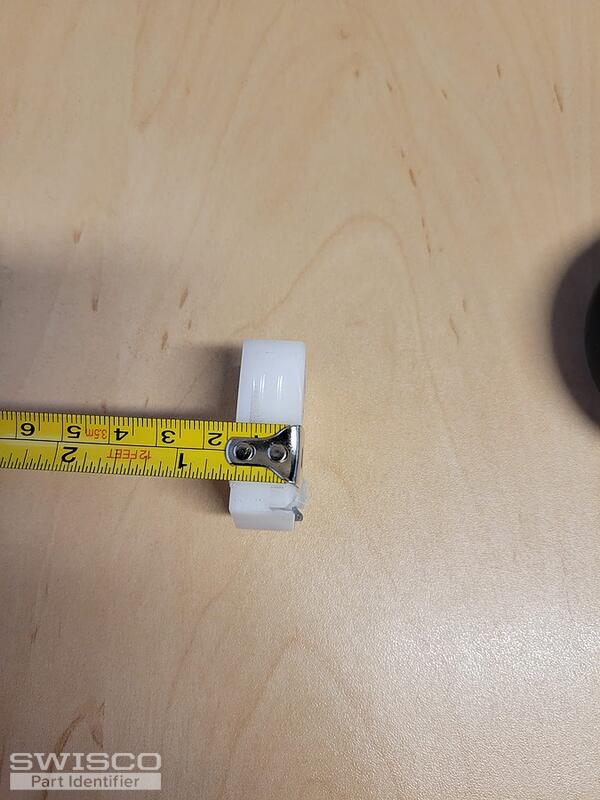

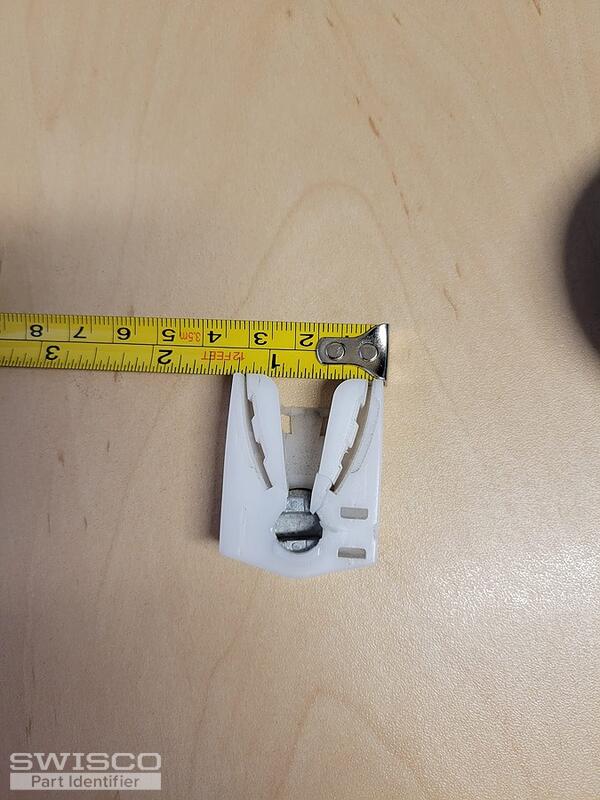

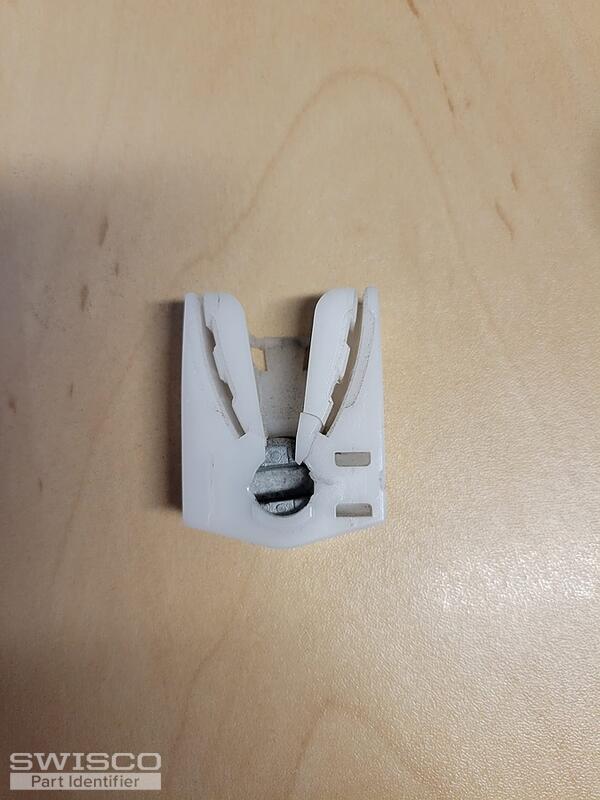

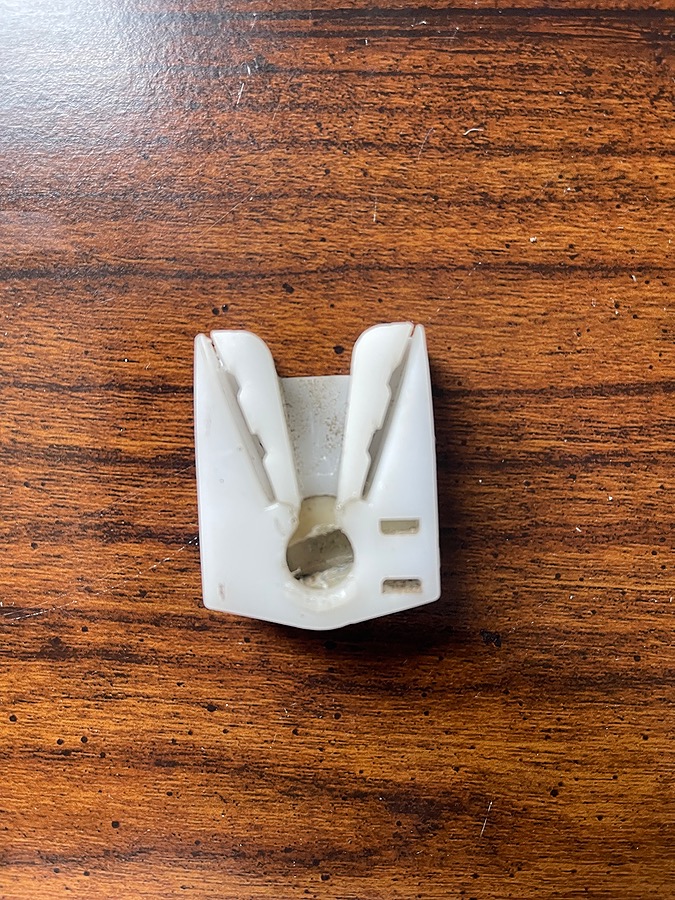

Pivot Shoe

Hi I am looking to match this pivot shoe size
