T-Lock Shoe

A contractor from Vermont says:

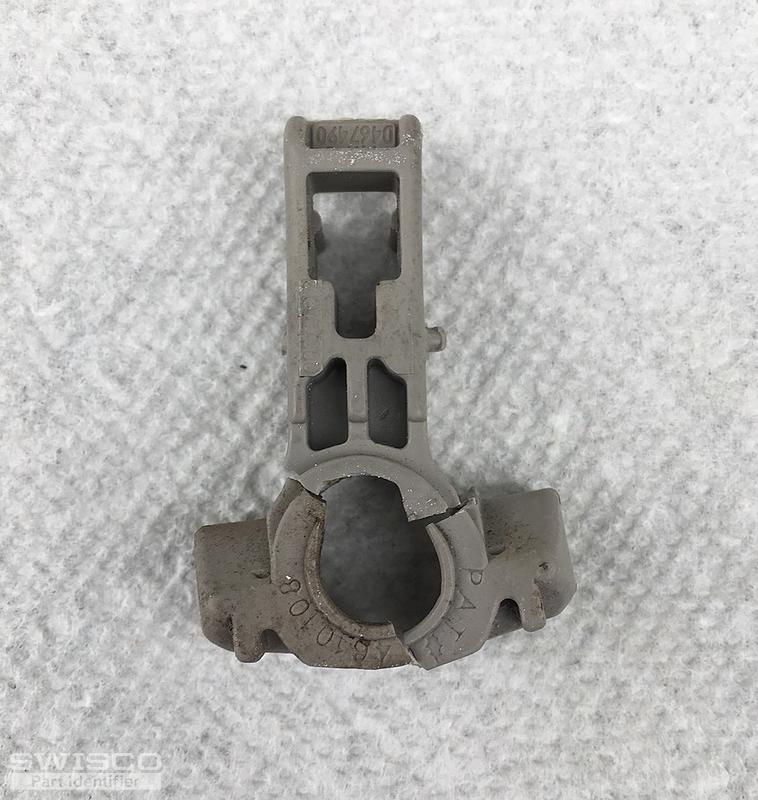

Pat # 4610108, 1 1/4 wide

Thumbnail of the uploaded file named D6058D93-C525-4113-943F-C7D57BCA76C7.jpeg
Thumbnail of the uploaded file named C4B04453-6FCC-41A5-AE51-E605072BAE39.jpeg
Thumbnail of the uploaded file named 1F2B491A-32B3-4D79-9674-F4379E93C963.jpeg
Thumbnail of the uploaded file named 523763B3-16F6-4337-9106-3C51DE0DC09A.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. If you just need a new T-Lock Shoe, see our 15-195. If the balance is damaged as well, however, you'll need a Series 795 Channel Balance (this comes installed with the 15-195). Confirm that the metal channel, not including the T-Lock Shoe, is 26" long. If so, see our S795-26. Please be sure that the attachment at the top of your old balance 'screws in' at the top of the window track. Some of these balances use a hook instead. If that's the case, show us the slit in the window track that the hook attaches to; that will determine the best course of action. In either case, you will need a stamp option of 26D.
