TILT WINDOW replacements

A home owner from Lansing, Michigan says:
January 25, 2020

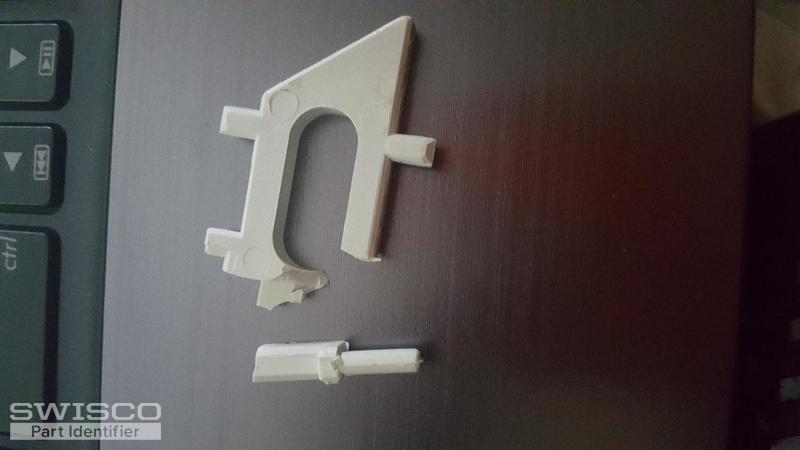

You were extremely helpful two years ago in identifying the correct window shoe. Now, I need your help identifying the window piece pictured above.

Thank you kindly,

Susan

Thumbnail of the uploaded file named window piece.jpg
Thumbnail of the uploaded file named window shoe.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 28, 2020

Welcome back, Susan. I remember when you asked about your pivot shoe. We recommended the 15-046 pivot shoe as a possible replacement. Did you ever take a look to see if this is compatible with yours? If not, have a look and see if this will work.  As for the pieces in the first photo, I am not sure what that is. Could you send us a photo of the part completely intact so that we can have a look? Thank you.
A home owner from Lansing, Michigan says:
January 28, 2020
I did order the 15-046 pivot shoe and they were perfect.

I will be visiting my Mom this upcoming weekend and will take a picture of the piece intact.

Thank you kindly,
Susan
Profile picture of Casey
Casey from SWISCO responded:
January 29, 2020

Sounds great, thank you, Susan.
A home owner from Lansing, Michigan says:
February 2, 2020

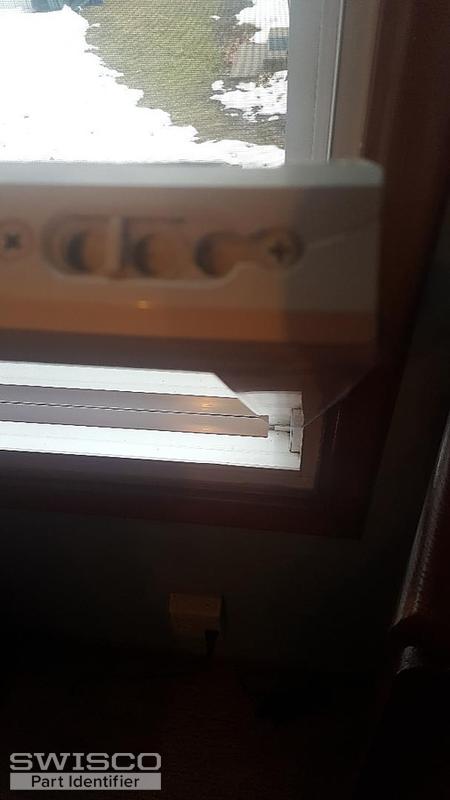

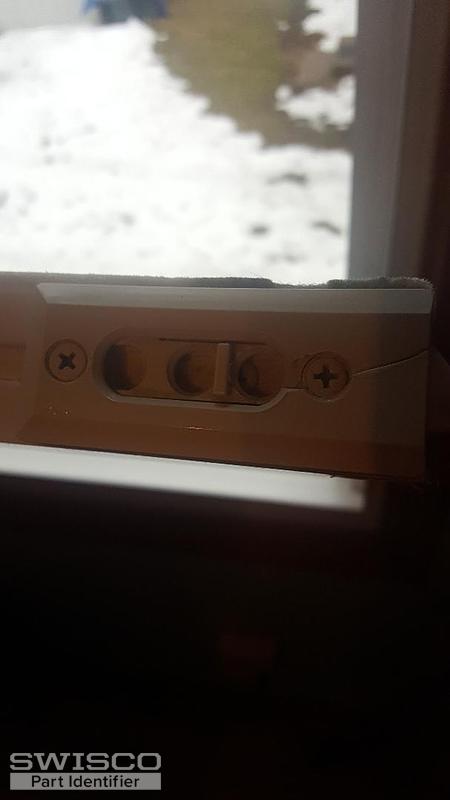

Attached are images of where the piece in withing. I will be purchasing the inside and outside case.

Hope these images help.
Thumbnail of the uploaded file named tiltwindowIII.jpg
Thumbnail of the uploaded file named tiltwindowII.jpg
Thumbnail of the uploaded file named titlewindowI.jpg
Thumbnail of the uploaded file named titlwindowI.jpg
Thumbnail of the uploaded file named window piece.jpg
Profile picture of Paul
Paul from SWISCO responded:
February 3, 2020

Thank you for the additional photos. Have a look at our 26-228 and 26-229 tilt latches. You will want to confirm that your screw hole measurements match up to ours, at 2-1/8". Take a look and let us know what you think.
A home owner from Lansing, Michigan says:
February 4, 2020
Thank you kindly. The screw hole measurements match at 2-1/8". I have placed an order for 26-228 and 26-229.

You are amazing!
Profile picture of Paul
Paul from SWISCO responded:
February 5, 2020

Glad we could help!
