I need two Take Out Clips for a Plygem 1115 Series Window. I found one on your site that is close but the size is different and there is not a hole to tie the guide string. (see picture)
The OEM Clips are 3/4" long and 1/4" wide. But more importantly you tie the string through a hole in the clip with a square knot on top.
Do you have anything that will work?

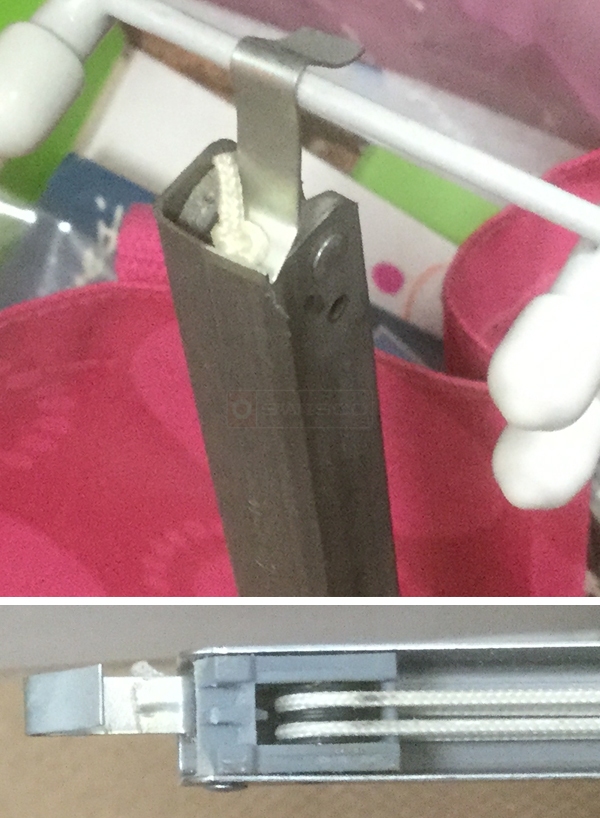

Take Out Clip from PlyGem 1115 Series Window
Quick Learner from Cary
Oct 16, 2017 12:56 pm
4 Replies
Tom from SWISCO
Oct 23, 2017 1:30 pm
Thanks for contacting us. This doesn't look like a take out clip, but rather just the hook that attaches the top of the balance to the window jamb. I think our 15-198 would be a match. Typically, we need to custom make balances to accommodate this hook, but if you are able to retie the knot yourself then there is no reason you wouldn't be able to do it at home. Let me know what you think. If you do want us to make this balance for you, we'll need more information.
Quick Learner from Cary
Nov 27, 2017 10:05 am
Do you have replacement string? That is the only broken part.
Need about 50
Need about 50
Tom from SWISCO
Nov 27, 2017 12:51 pm
I'm afraid the cord cannot be replaced or repaired. Once that's broken, you need an all new balance.
We can custom make a balance for you, but before we begin I need to see a picture of the bottom shoe and stamp printed on the metal channel. I would also like you to confirm the length of the metal channel. Once I have this information, I can email you a custom order link for 50 of them.
We can custom make a balance for you, but before we begin I need to see a picture of the bottom shoe and stamp printed on the metal channel. I would also like you to confirm the length of the metal channel. Once I have this information, I can email you a custom order link for 50 of them.
