Tension cord replacement

A quick learner from California says:
August 1, 2022
One of the tension cords in our window has shredded and then broke. The piece inside the window with the spring has the following stamp on it: 20 4 EP CALDWELL. We don't need the tension arm, just a replacement cord. Can you please tell me how to order the correct part?

Thank you so much!
Meg
Thumbnail of the uploaded file named 7538A35E-B50D-4429-BB4E-8B7E62CC26D1.jpeg
Thumbnail of the uploaded file named 0FBAED7D-42C0-4C92-BDBE-B327E4AB1FCD.jpeg
Thumbnail of the uploaded file named 648C1C57-CA71-4DF7-A79D-C99D8433CA72.jpeg

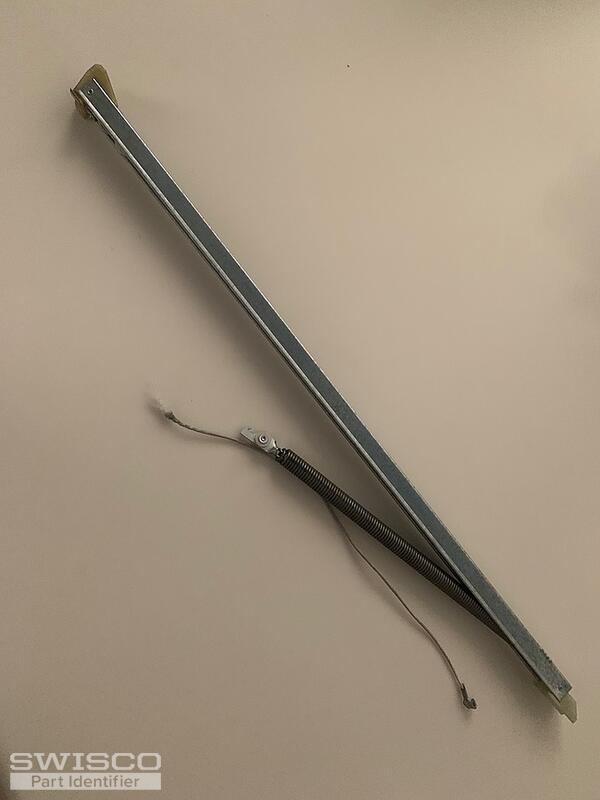

Thumbnail of the uploaded file named 466B5C7D-0F4B-469D-A8FF-3647FB854DE6.jpeg

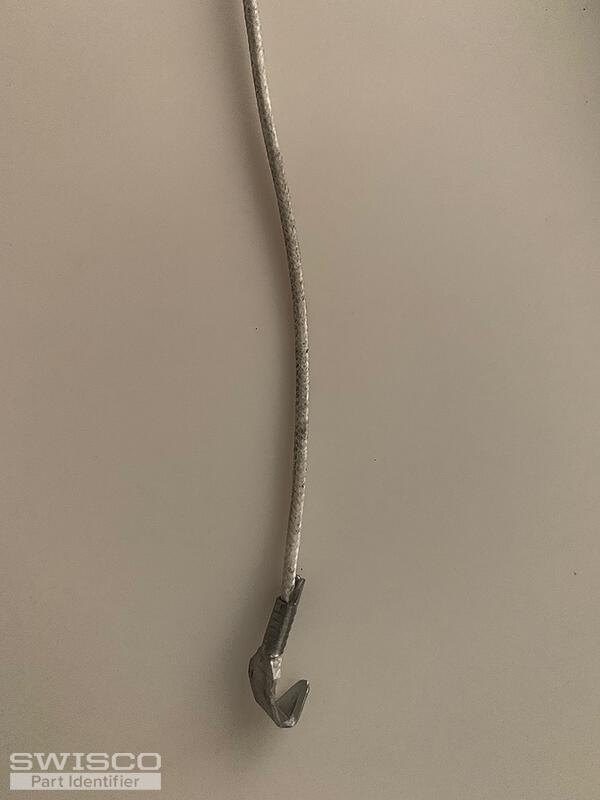

Thumbnail of the uploaded file named BAEC7EBD-5FE2-41B8-AE54-7B95324CCF28.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 5, 2022

Hi, Meg.

I'm afraid the pulley cord cannot be repaired or replaced so you'd need a whole new balance. I recommend our S380-21 or S385-21 channel balance, depending on the depth of the bottom shoe. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes with a 1-3/32" deep shoe. You'll need to measure as shown in the diagram below to see which one matches up best. You will also need the 2040 strength option, based on your 20 4 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
21" Series 380 Channel Balance
21" Series 380 Channel Balance
S380-21
$9.38
21" Series 385 Channel Balance
21" Series 385 Channel Balance
S385-21
$9.38
