Tensioner, Pivot lock shoes, tilt latch

Contractor from Michigan

Jul 9, 2018 5:55 pm

Hello,
Working on a window and need the following parts. I've included some photos to hopefully help figure out the correct parts needed.
2- Single coil tensioner
2- Pivot lock shoes
1- Tilt latch
Thank you
Joe

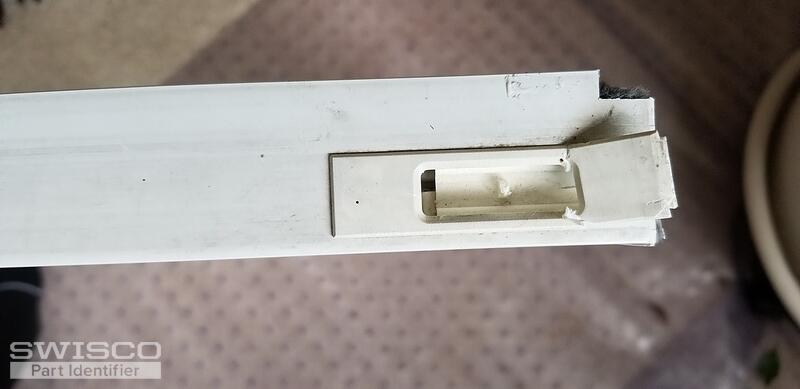

4 user uploaded images

4 Replies

Casey from SWISCO

Jul 16, 2018 11:19 am

Thanks for posting. Your coil pivot shoe resembles our 15-111. You mention a single support but your photo looks like it might be a double support like 15-150D. These parts are usually used with the series 160 coil balance. It is hard to tell which tilt latch you have without measurements. I've made a list of a few latches you might want to compare yours to.

Contractor from Michigan

Jul 16, 2018 11:04 pm

Thank you for your response Jody.
What coil balances will i need for this.
Thanks
Joe

Paul from SWISCO

Jul 17, 2018 8:11 am

You will likely need Series 160 coil balances. You should remove the part from the window to check, of course.

The coil is marked with a number that tells you which Series 160 coil to choose.
