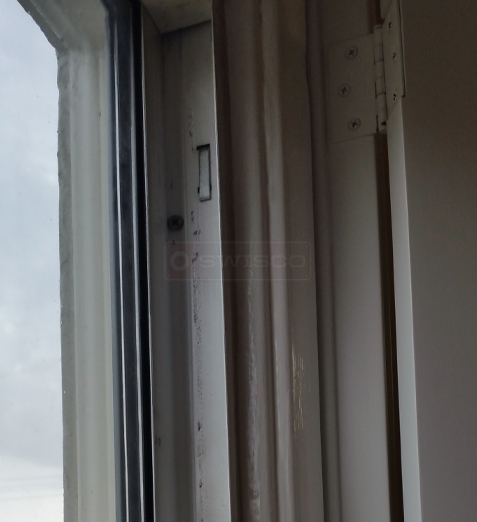

The missing part channel balance or Jamb liner

Home Owner from USA

Nov 28, 2017 8:55 am

When I bought the house these were missing due to window a/c installation.
The total window measures is about 29W by 52H.

I need help figuring out what to get.

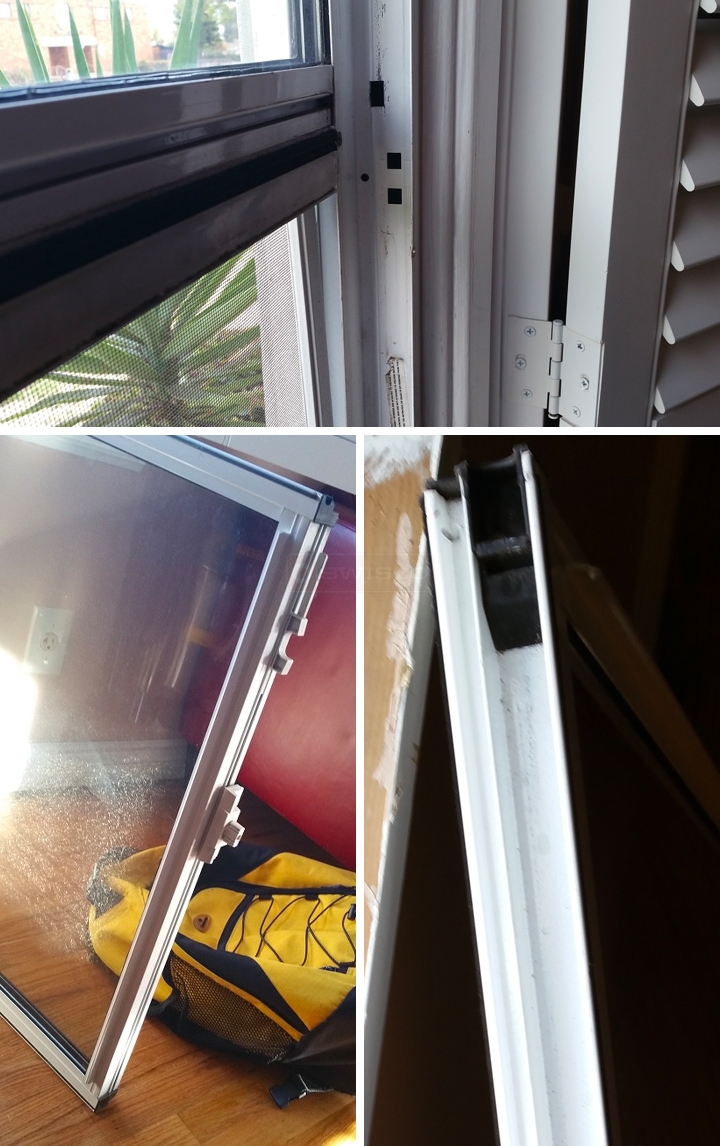

User submitted photos of window hardware.

6 Replies

Paul from SWISCO

Dec 4, 2017 8:27 am

We may be able to help, but before we can recommend anything we will need the width and height of the visible glass for the bottom sash. We will also need the exact weight of the sash. With this information, we may be able to determine what replacement balance will work for you.

Quick Learner from North Hollywood

Jan 3, 2018 2:50 pm

Thank you for your response.

Here is the information that you requested:

1. The width and height of the visible glass for the bottom sash is W-25 3/4" and H-24".

2. The exact weight of the sash is 15 Lbs.

I hope that you have the parts. I am not the original owner and there is no other information available.
Ben

Paul from SWISCO

Jan 9, 2018 12:29 pm

I would suggest using S380-26 with a spring weight of (2530) to hold a sash weight between 15-19 lbs.

Quick Learner from North Hollywood

Jan 9, 2018 1:30 pm

Is it also available as a kit?

Paul from SWISCO

Jan 12, 2018 11:00 am

All of our balances come assembled with the top and bottom balance shoes. They are sold as individuals and not pairs. Please refer to the previous part I suggested for further detail. Get back to us if you should have any further questions.
