2830 BS1A0 for Ply Gem 4700 series window balance

Home Owner from Dade City, Florida
Good morning.

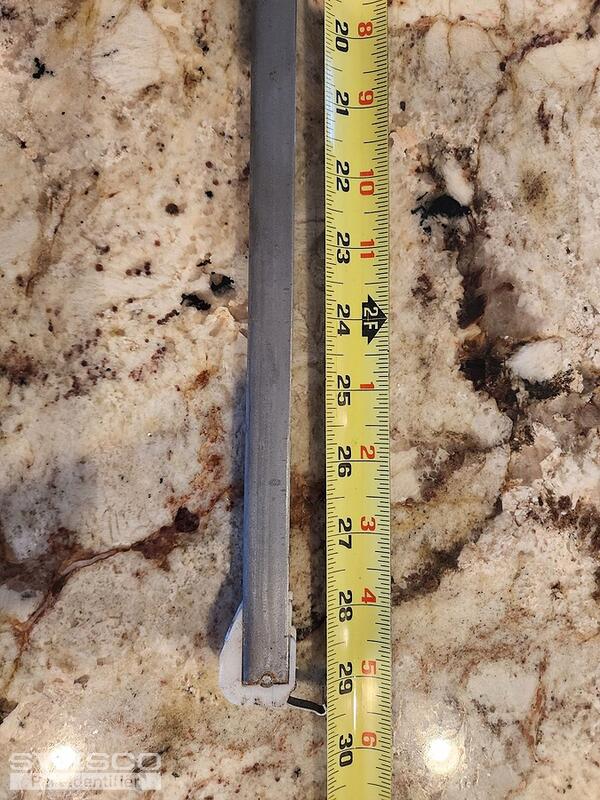

I need to purchase replacement balances for a Ply Gem 4700 series window.  The metal length on the balance is 29 inches.  I need 2 balances.
1 user uploaded image
10 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

We should be able to assist with a replacement, but to further review, are you able to provide clearer images of the top and bottom nylon attachments? From there we can narrow down the series needed for your window. Thank you!

Home Owner from Dade City, Florida
Good morning.
Attached are a couple more pictures of my current balance, top and bottom.  Please let me know if you need additional info.
Thanks.
2 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you. This appears to be an extended travel channel balance, which is not a stock product. We can still supply a match but only as a custom order.

However we still need a bit more information from you. To start, I need a clearer photo of the bottom fitting, specifically from a side angle. The shape and profile of the bottom fitting is a vital detail.

I'll also need you to verify the length of the metal channel. It should be 28-7/8" long, not 29".

Finally, how many of these did you want to purchase?

Once I have that information, I can email you a custom purchase link and price quote that you can use to place an order on our site.

Home Owner from Dade City, Florida
Let me know if this pic works.  I want to purchase 2 of them.  Thanks.
1 user uploaded image
Lauren
Lauren from SWISCO
SWISCO
Expert

Thanks for getting back to us. We are able to identify your bottom fitting but, unfortunately, we are not able to make out exact dimensions from photos. We'll need you to confirm if the metal channel measures exactly 28-7/8" long before we move forward.

Home Owner from Dade City, Florida
yes, 28 7/8 is accurate.
Lauren
Lauren from SWISCO
SWISCO
Expert

Great! There's one more thing we'd like to confirm and we'll be ready to send over your order link and price quote. I can't quite make out if your clip is flat where the pulley attaches to the hook like the 62-105 or if there is a bend like the 62-106 shown below.

Home Owner from Dade City, Florida

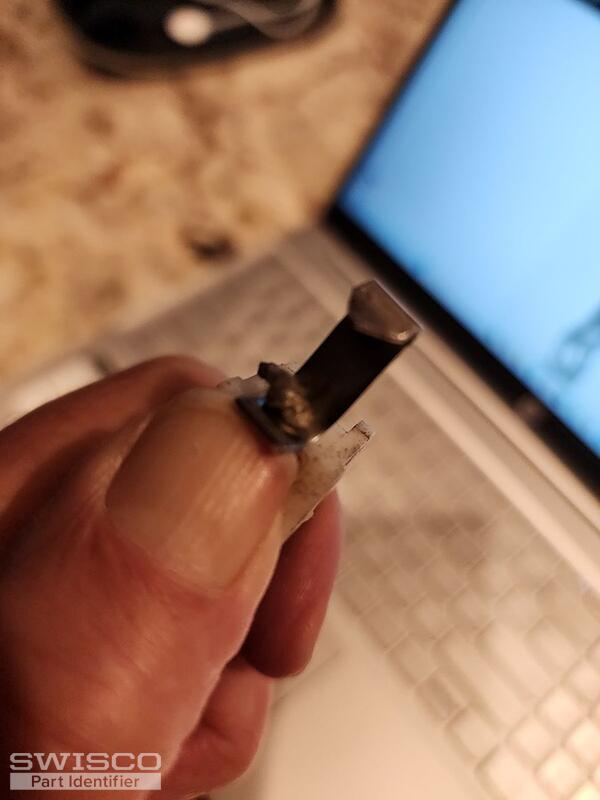

I can't say for sure that it is a perfect match to the attached options.  See if this attached picture can help to identify a match.  Thanks.
1 user uploaded image
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for the additional image.

Your hook resembles the 62-105 style.

I have sent over a separate email with an order link for (2) balances with pricing for your review. There is a 5-6 week lead time and custom orders are nonrefundable. Please review and let me know if you have any additional questions.
