The pivot shoe

A home owner from Red Oak, IA says:
June 11, 2022
The pivot shoe on are windows keep breaking trying to find replacements
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 15, 2022

Hello!

The information on this sticker doesn't tell us what hardware your window uses, unfortunately. We would need to see an undamaged pivot shoe removed from the window to determine a match.
A home owner from Red Oak, IA says:
June 19, 2022

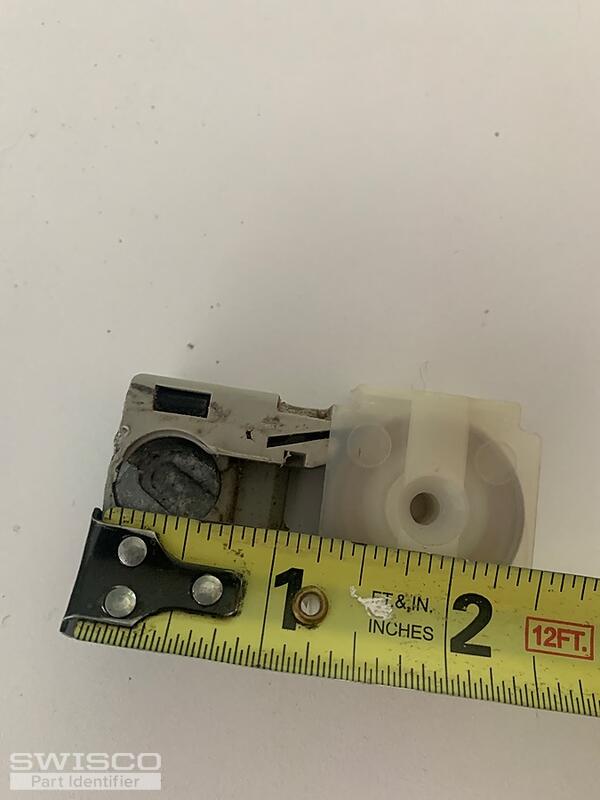

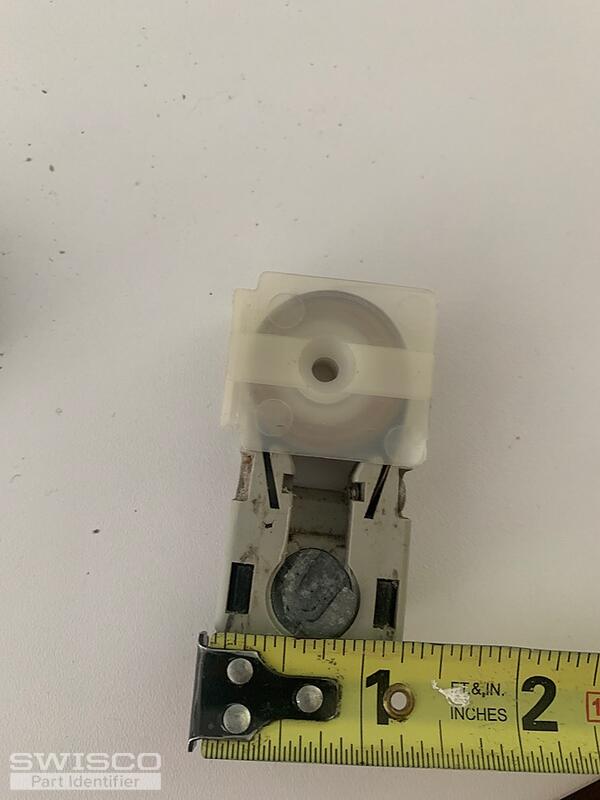

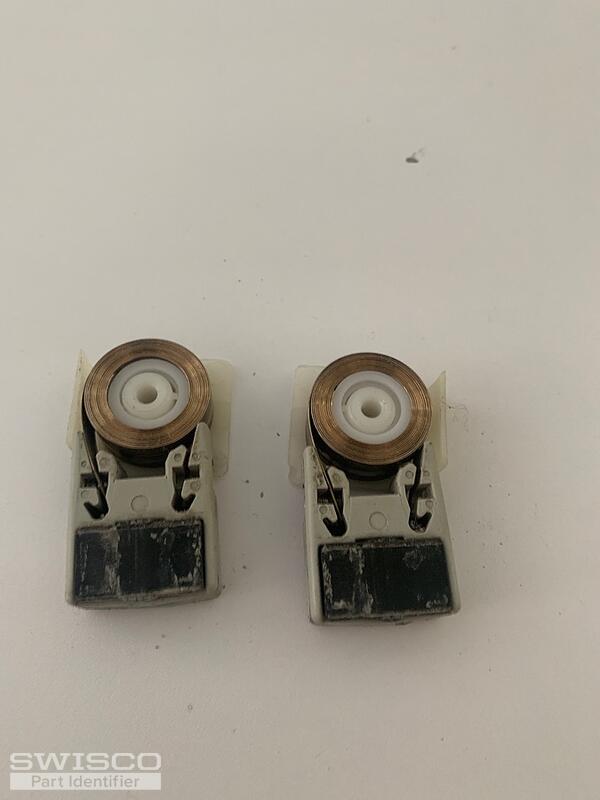

Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 20, 2022

Your pivot shoe appears to be a match for our 15-177 which uses the Series 152 coil springs. For new coil covers, see our 15-143 bushing, 15-144 cap, and 15-145 barrel.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
