Tilt Coil Balance and Pivot Bars

A home owner from Chicago Area says:

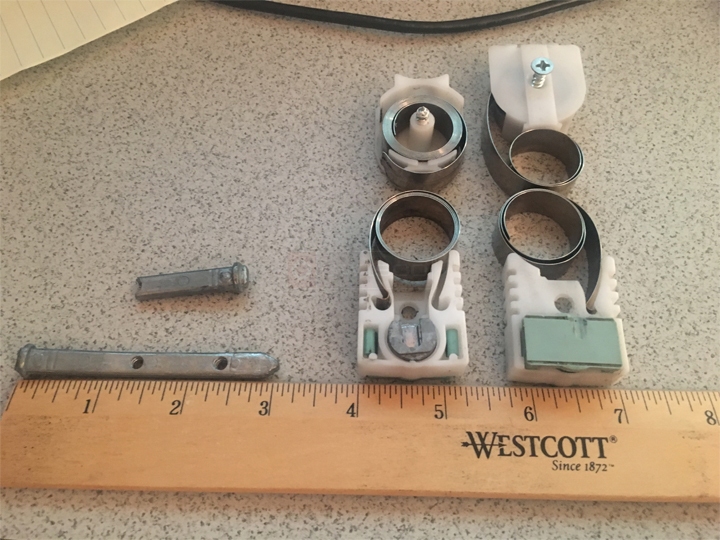

They are 1/2 inch thick
Window is about 16 pounds

One part is stationary while the other part with the pivot bar moves with the window

Please send part numbers for the coil assembly and pivot bars.
Tilt Coil Balance and Pivot Bars
Profile picture of Paul
Paul from SWISCO responded:
Our 15-177 pivot shoe is similar to yours, and is compatible with the Series 152 coil spring. It's important to keep in mind that our Series 152 attaches with a screw like our 33-071. For a 16 pound sash, I would recommend the S152-8, specifically. Finally, for the pivot bar, see our 26-226.
