Tilt Latch & Block and Tackle Balances

Question

Can you help me locate the window parts listed below? A right side tilt latch for an Atrium 2500 series single hung aluminum window that measures 36 x 37. The measurements for the tilt latch are:

A) Tilt Latch 1/4 inch thick, 1 inch wide, and 3 inches long. The measurement from the center of one screw hole to the center of the other screw hole is 2 inches. The color is white.

B) 8 block and tackle balances for the same windows (36 x 37 single hung aluminum). The number on the balance is 180.

?c) ??1 block and tackle balance for a 36 x 49 3/4 inch single hung aluminum window. The number on the balance is 24D.

Tom · Accepted Answer

I'm afraid I couldn't find a tilt latch that matches your specifications exactly. Can you confirm the screw hole spacing? In terms of design, your latch is very similar to our 26-410, but this only has a hole spacing of 1-13/16" on installation hole centers.

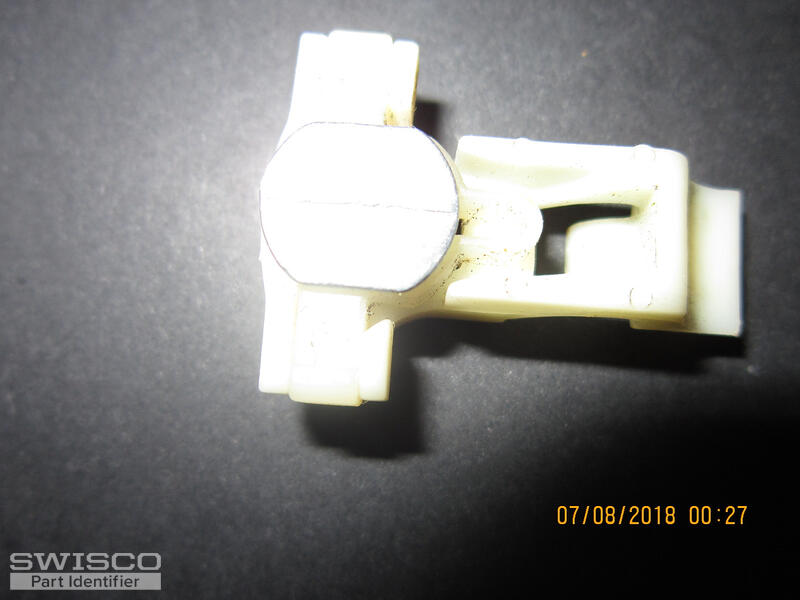

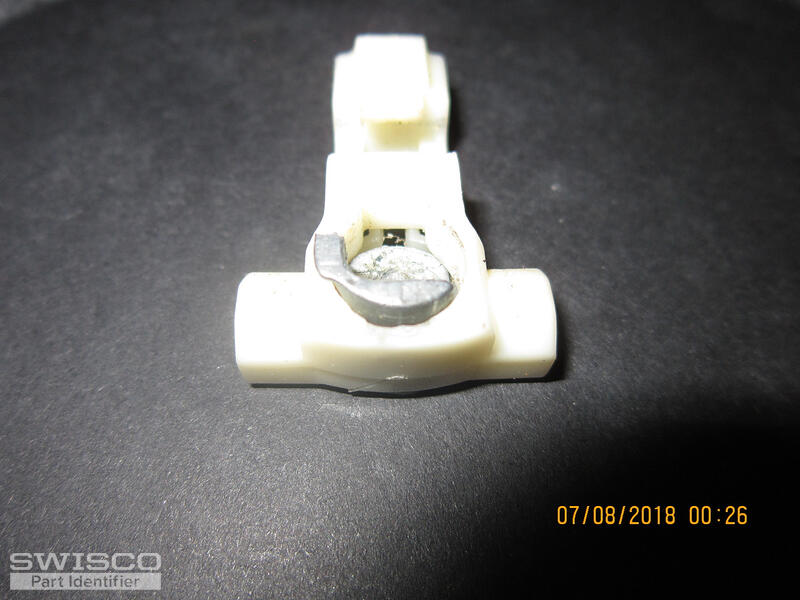

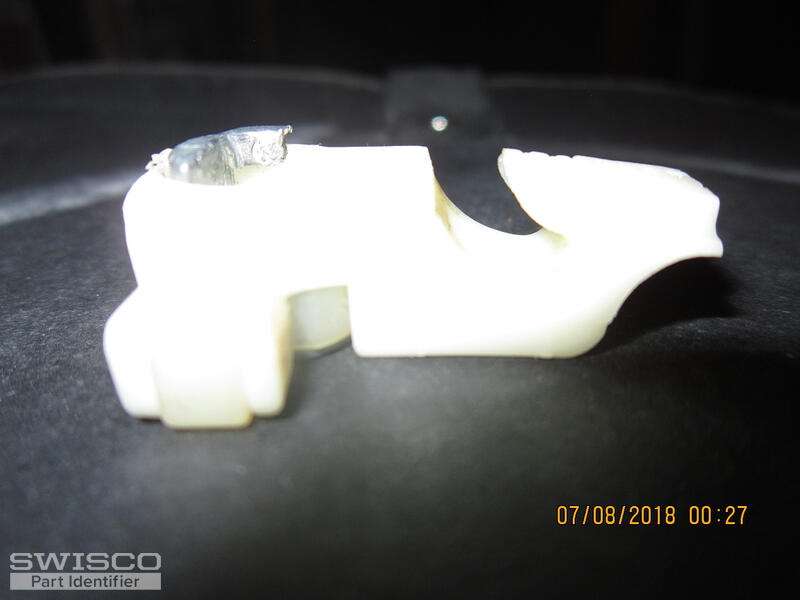

I cannot tell what your balances are from your photos. I will need you to remove them from the window and then show me a clear picture of the shoe or clip at the bottom, the clip at the top, and the stamp printed on the channel itself.
