Tilt Shoes

Question

Hi,

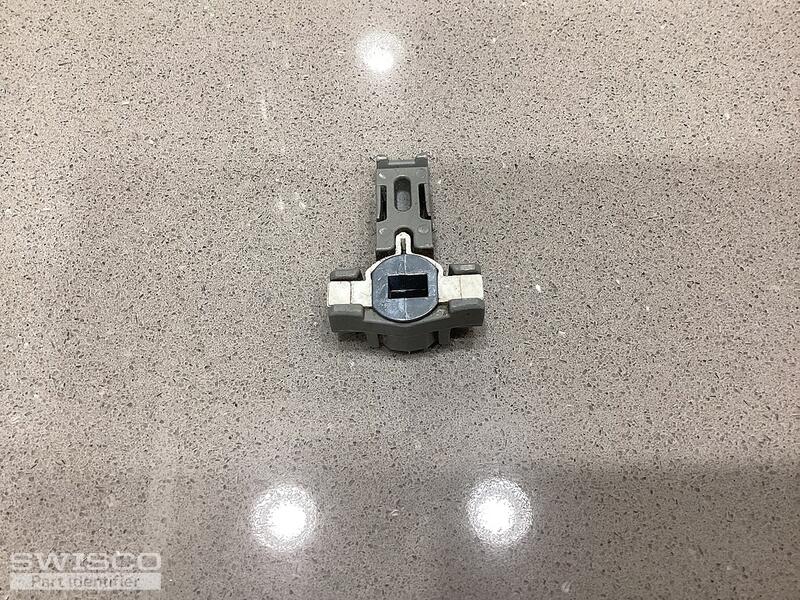

I am trying to replace just the tilt shoes of my channel balance springs for my residential windows.

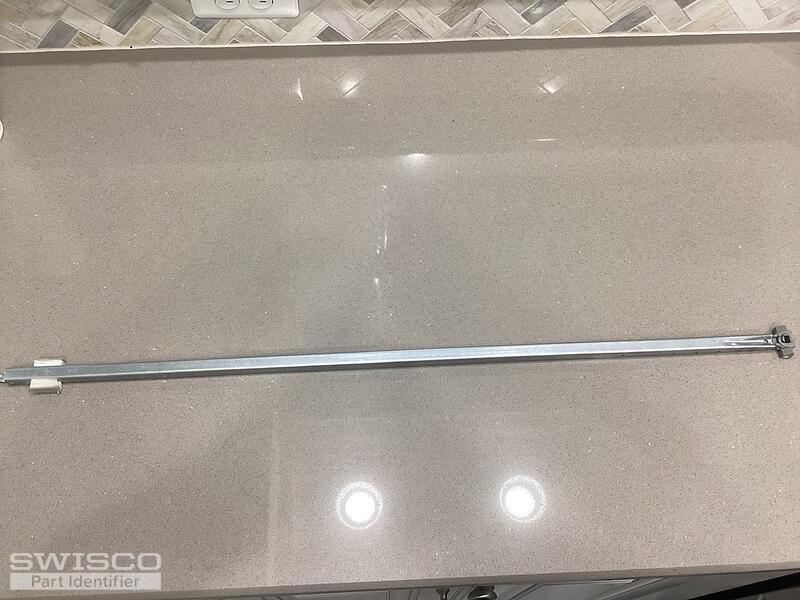

The channel balance spring is stamped with BSI 30B.

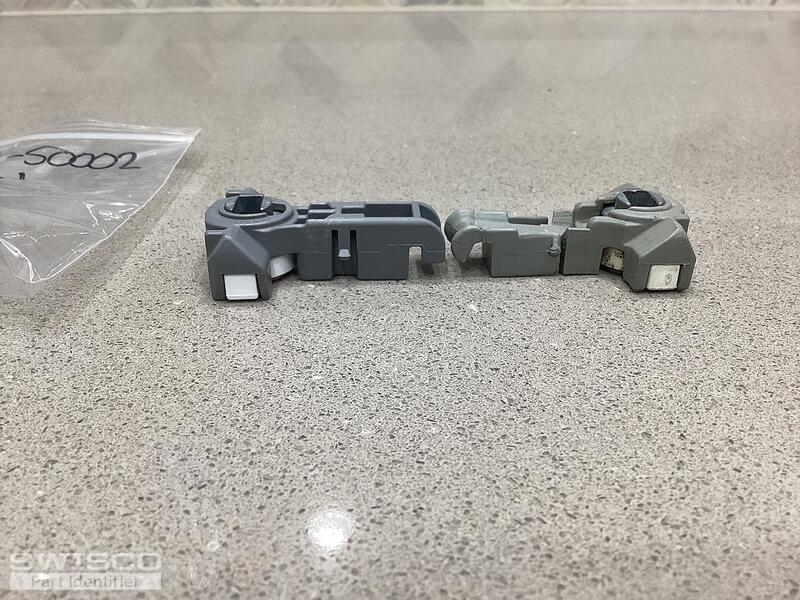

I tried looking the new part numbers up for the tilt shoes but the new ones are taller (p/n 62-50002), See pictures.

The house was made in 2008. And I have about 35 windows that need this repair.

Do you have another part number that I can try for an exact replacement?

P.S. the patent numbers on the tilt shoes are as follows:
6.679.000
4.610.108
0467.490

Thanks

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out. Your balance shoe appears to be our 15-195B 1-1/4" Open Cam T-Lock Pivot Shoe. This is compatible with our Series 795 Channel Balance.

Since yours is stamped with a 30B, you'll need the S795-30. If your channel balance has a hook on the top, you should be able to use our 26-200 balance screw plug. However, if the installation hole at the top of the window is not square in shape, this will need to be a custom assembly.
