Tilt Window Balance System Triple Coil

Home Owner from Albany, NY
Aug 19, 2024 8:13 pm
I have a broken balance coil and sash pin. The other two coils look fine? Can I just replace the broken parts or get whole new assembly? What are the part numbers?

Thanks

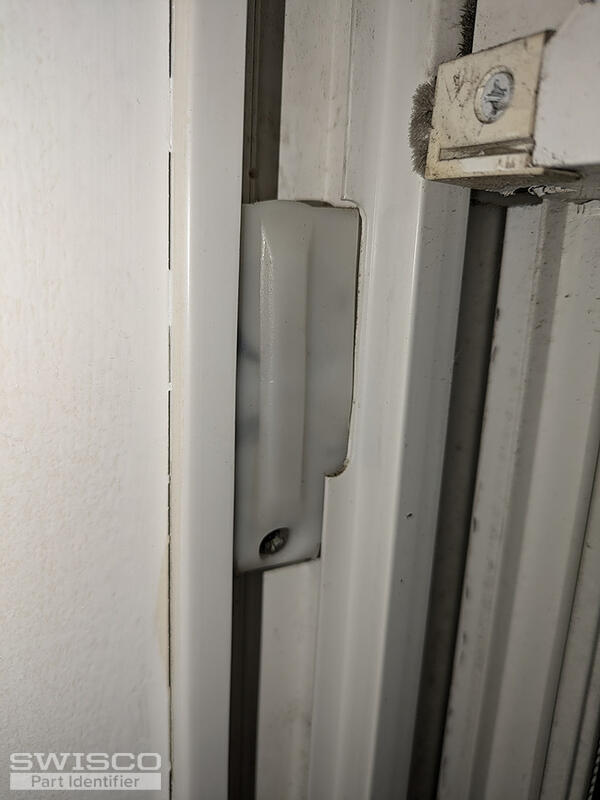

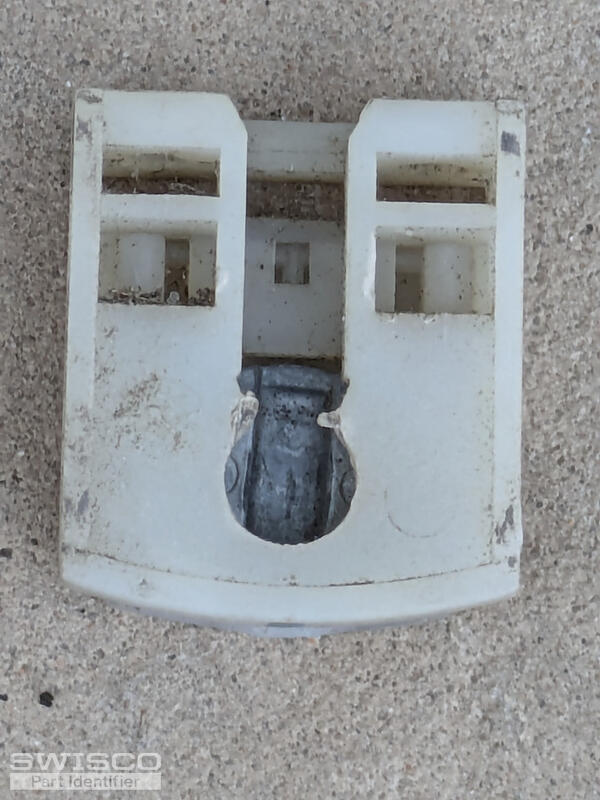

Coil Pin pin_shoe Balance Installed
4 user uploaded images
1 Replies
Tom
Tom from SWISCO
Aug 21, 2024 11:05 am
SWISCO
EXPERT

Hello! You can replace just the broken parts in most cases, but in the case of the coil spring if you replace one then you ought to replace them all. You never want to mix old and new springs together since these lose tension over the years from constant use. In other words, even if the new spring is rated to hold the same weight as the old springs, it will still be stronger, given that it's brand new. That will lead to an uneven operation and, potentially, early failure.

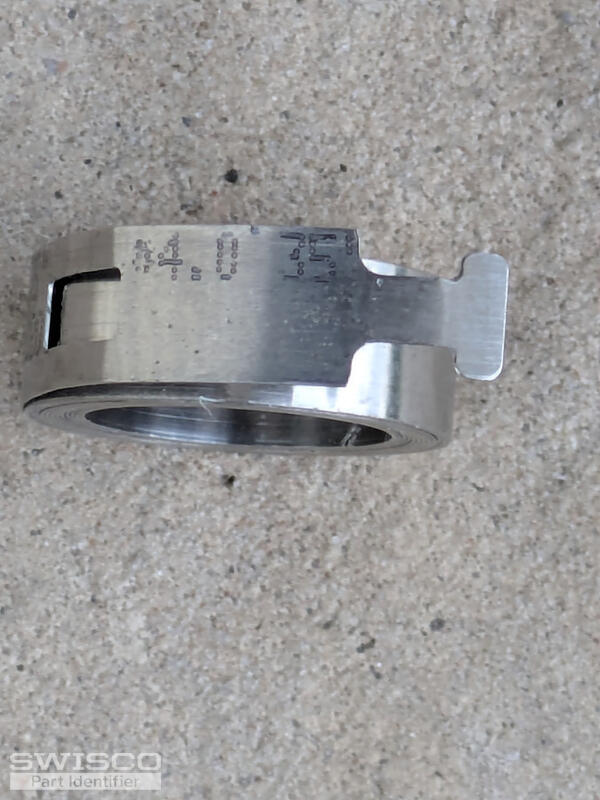

With that in mind, your spring would be a match for either the 1/2" Series 160 or the 3/8" Series 165. You'll have to measure the original to verify the better match.

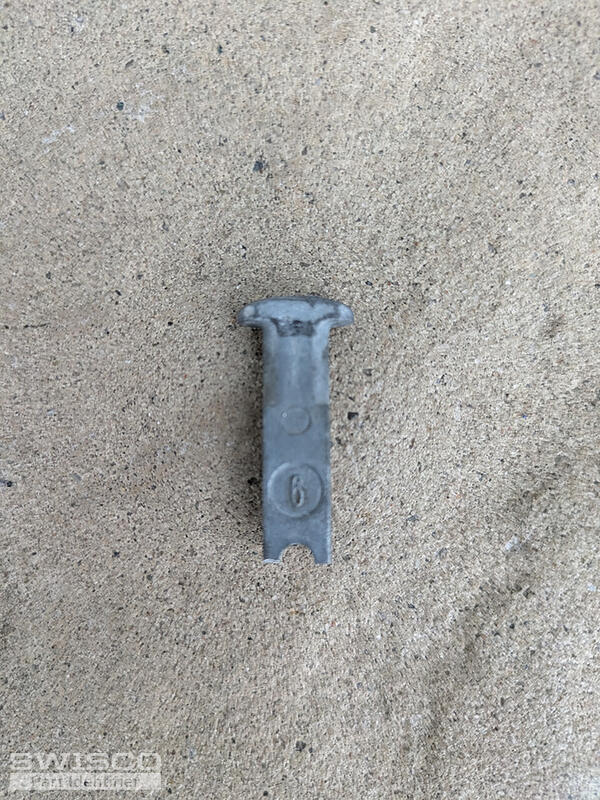

Concerning the pivot bar, you can just replace the broken one and be fine reusing the other side. No harm in that whatsoever. my recommendation would be the 26-378, but you should make sure our dimensions line up before you buy anything, just to be safe.

All orders can be placed on our site at your convenience. I'm happy to answer any follow up questions you might have, so feel free to reach out.
