Tilt Window Parts

A home owner from Pennsylvania says:
May 8, 2022
Hello, the parts I need are for a small tilt window. Approximately 26"x 32". I will need both left and right side. These are the photos..

Thank you
Thumbnail of the uploaded file named 20210802_174024.jpg
Thumbnail of the uploaded file named 20210802_173749.jpg
Thumbnail of the uploaded file named 20210802_173854.jpg

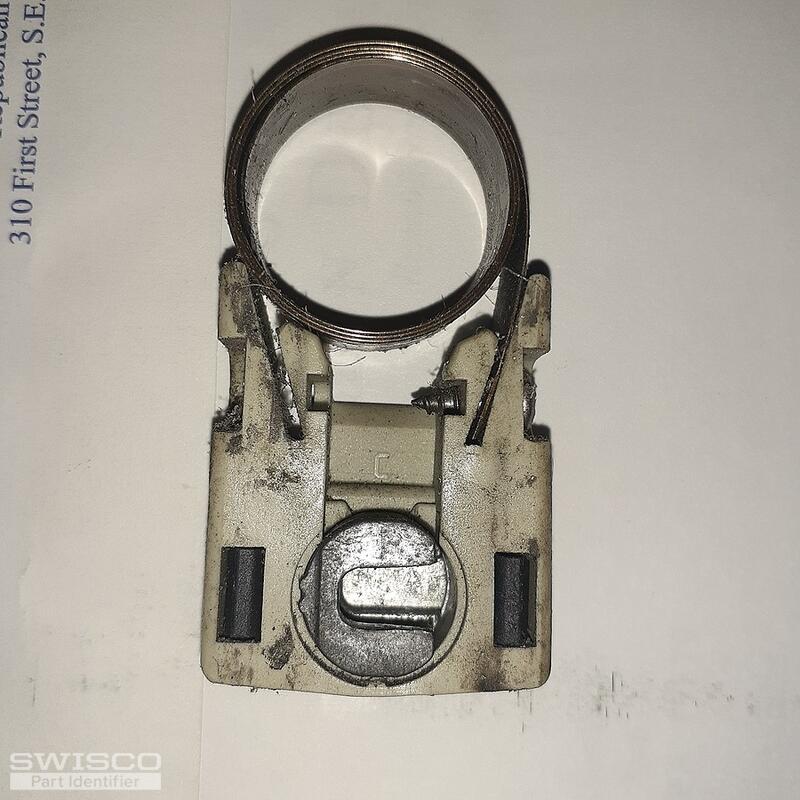

Thumbnail of the uploaded file named 20210802_173947.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 10, 2022

Hello! Your coil spring looks to be a match for our 15-177, which is itself compatible with our Series 152 coil spring.

As for the pivot bar, I don't believe we have an exact match for this but our 26-226 is very close. I recommend looking over its dimensions, especially the hole placement, to see if this would be a good fit.

343
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
