Tilt Window mechanism

Handy Person from Edmond, OK

Apr 19, 2022 4:08 pm

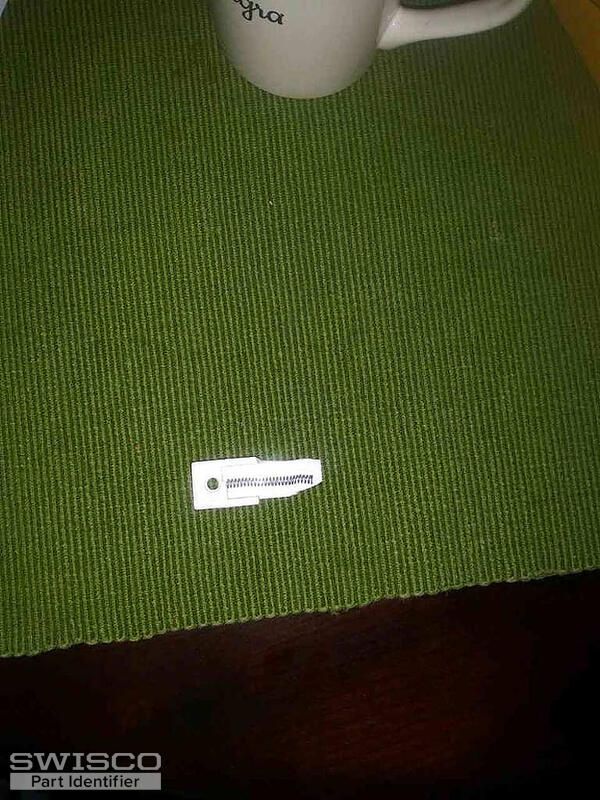

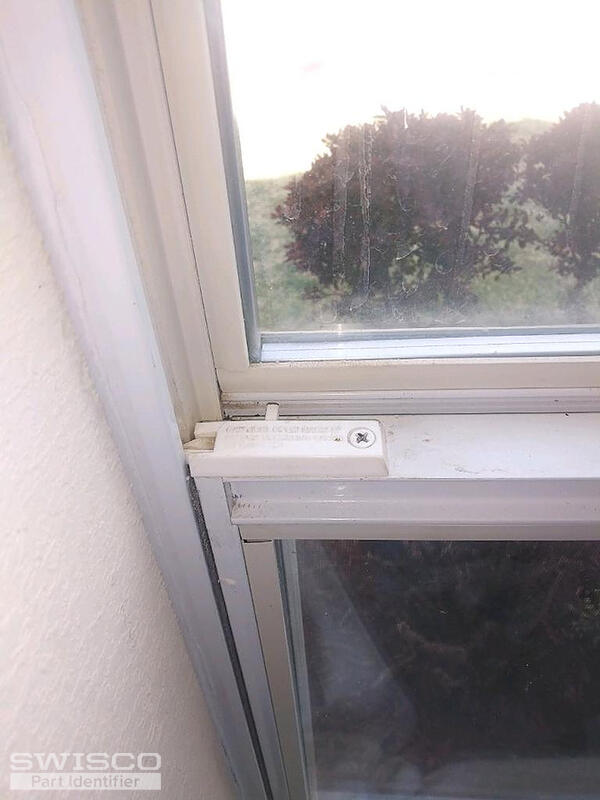

The right side is broken and I have included picture of both left and right side mechanisms with pictures of pieces. I am trying to help a friend with a broken window. If you need more pictures please let me know.

Thank you

Dallas

5 user uploaded images

3 Replies

Handy Person from Edmond, OK

Apr 19, 2022 4:23 pm

The Piece has P0002R on the underside.

Emily from SWISCO

Apr 21, 2022 12:20 pm

Hi, Dallas.

The style of your latch resembles our 26-157 and 26-158 but we recommend comparing the dimensions to your old hardware to see if these match up.
